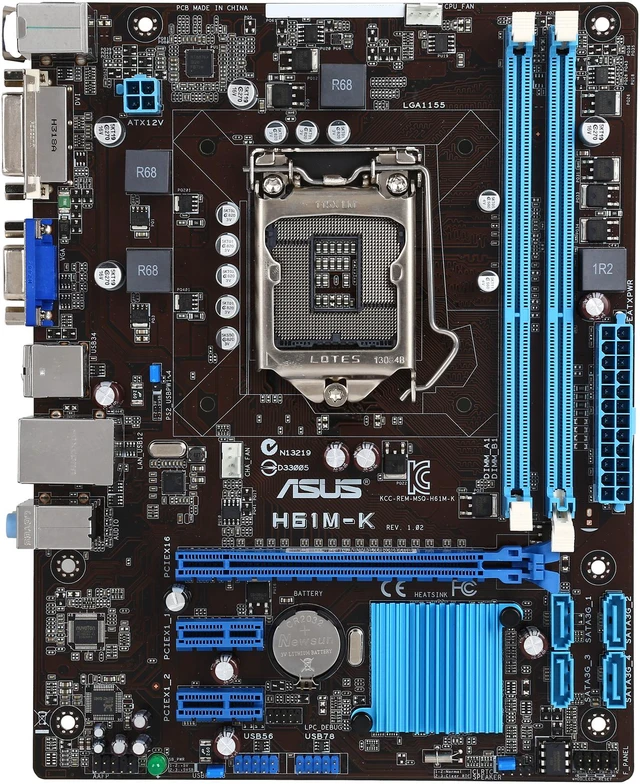

ASUS H61M-K-R LGA 1155 Intel H61(B3) uATX Intel Motherboard

REFURBISHED

Be the first to review this product...

Intel H61(B3)
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
DDR3 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333/ 1066, Non-ECC, Un-buffered

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	H61M-K-R

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel H61(B3)

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1024 MB

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333/ 1066, Non-ECC, Un-buffered
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 1 1: Intel 3rd Generation Core processors support PCIe 3.0 speed.
PCI Express x1	2 x PCIe 2.0 x1

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111F
Max LAN Speed	1Gbps

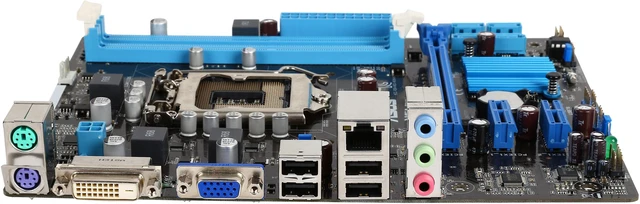

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
Video Ports	1 x DVI 1 x D-Sub
RJ45	1 x LAN (RJ45) port(s)
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) (4 -pin) 1 x Chassis Fan connector(s) (4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor	uATX
Dimensions (W x L)	8.9" x 6.9"
Power Pin	24 Pin

Features
Features	Most cost-effective micro-ATX H61 choice with best UEFI BIOS support UEFI BIOS - Flexible & Easy BIOS Interface Network iControl - Regulate Network Bandwidth Real-time Anti-Surge - Full-time Power Guardian-Make System Free From Risk AI Suite II - One-stop Access to Innovative ASUS Features Special Features ASUS Exclusive Features: AI Suite II Ai Charger Anti-Surge ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface Network iControl ASUS Quiet Thermal Solution: ASUS Fan Xpert ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2

Packaging

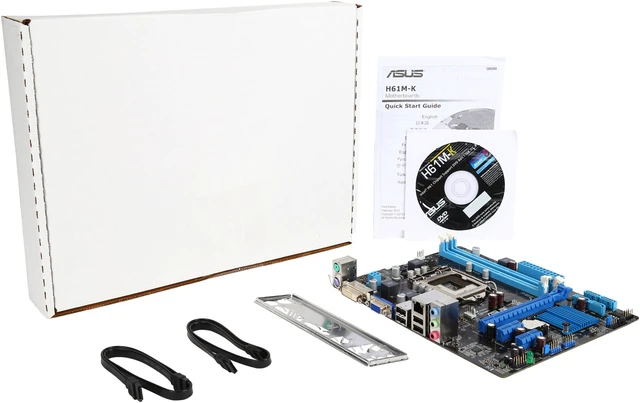

Package Contents	Accessories: I/O Shield 2 x SATA 3Gb/s cable(s)
