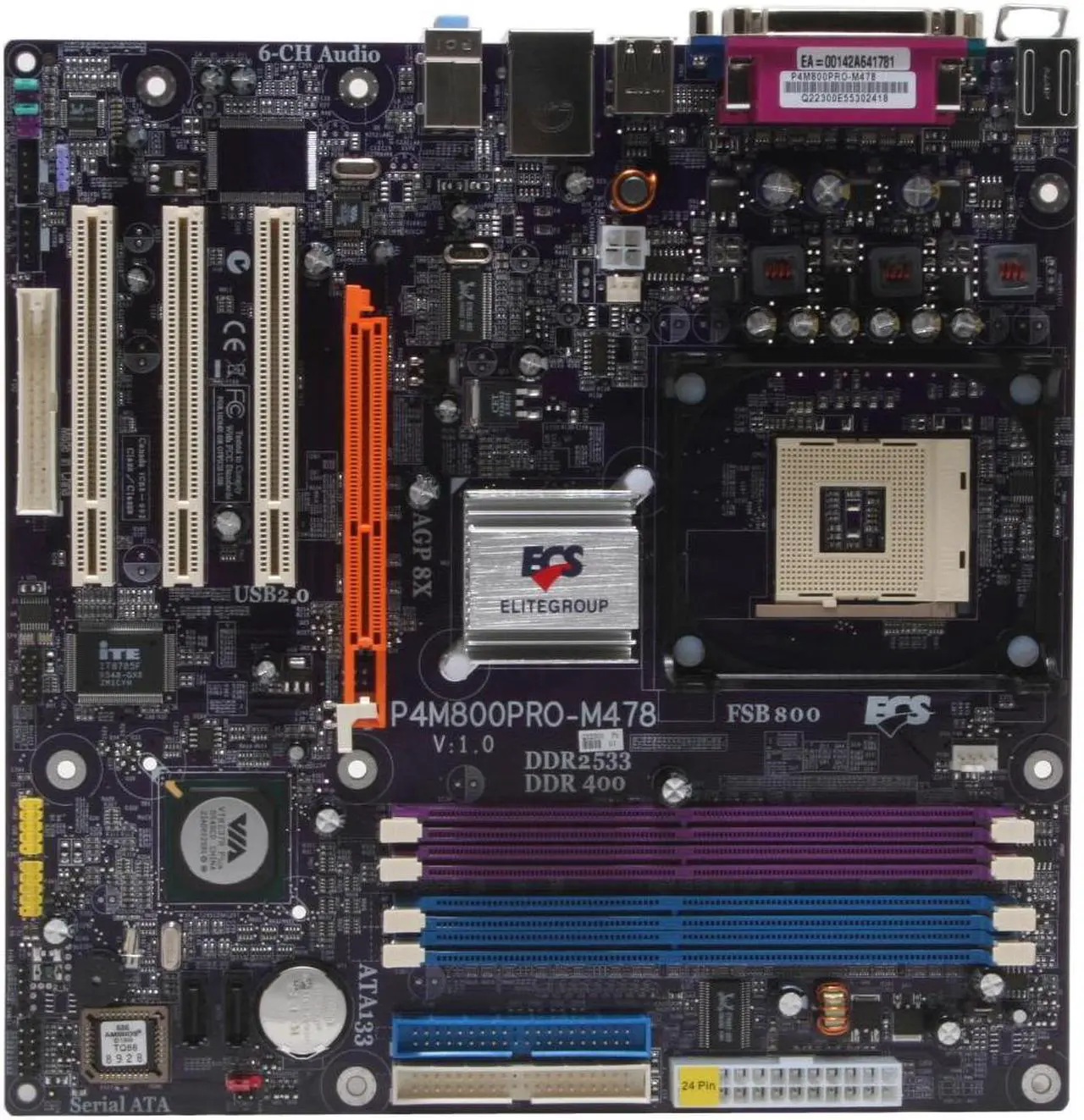

ECS P4M800PRO-M478 (1.0) Socket 478 VIA P4M800 PRO Micro ATX Intel Motherboard

  • VIA P4M800 PRO
  • Pentium 4 / Celeron
  • DDR2 533 / DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (95)

Learn more about the ECS (EliteGroup) P4M800PRO-M478 (1.0)

Model
Brand ECS
Model P4M800PRO-M478 (1.0)
Supported CPU
CPU Socket Type Socket 478
CPU Type Pentium 4 / Celeron
FSB 800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA P4M800 PRO
South Bridge VIA VT8237R Plus
Onboard Video
Onboard Video Chipset S3 Graphics UniChrome 2D/3D
Memory
Number of Memory Slots 2x184pin + 2x240pin
Memory Standard DDR2 533 / DDR 400
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6103L
Max LAN Speed 100Mbps

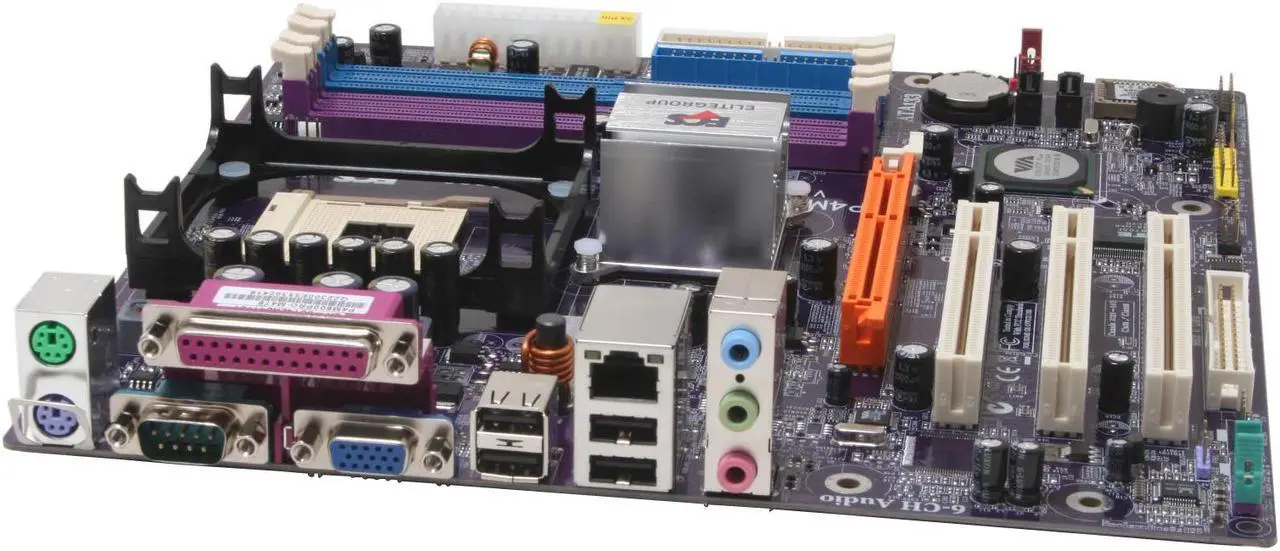

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin

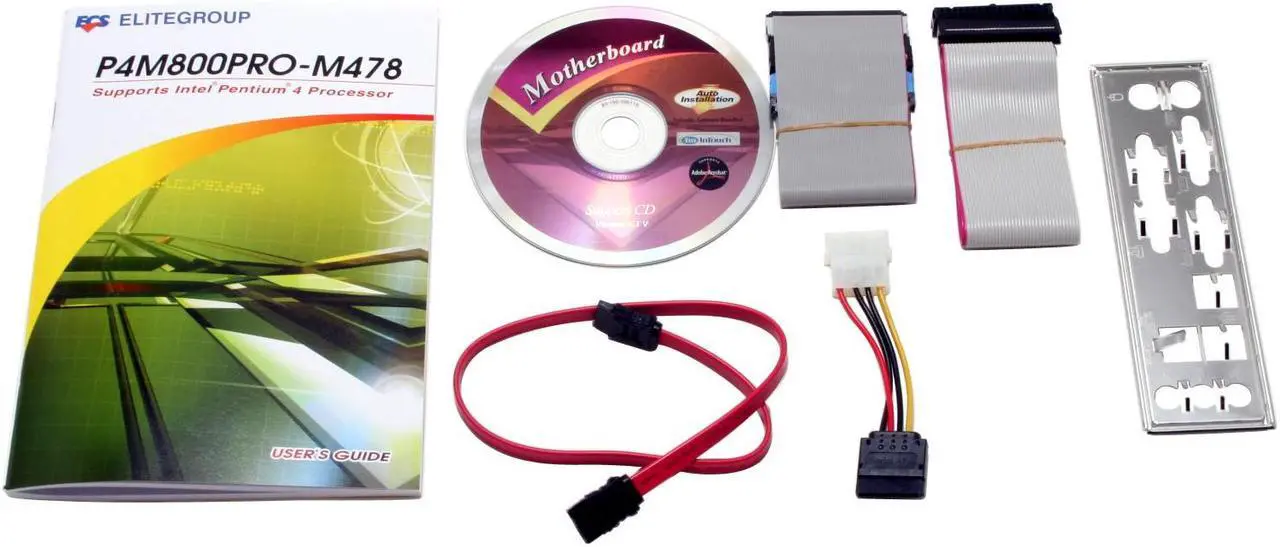

Packaging
Package Contents P4M800PRO-M478 (1.0)
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available January 26, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
