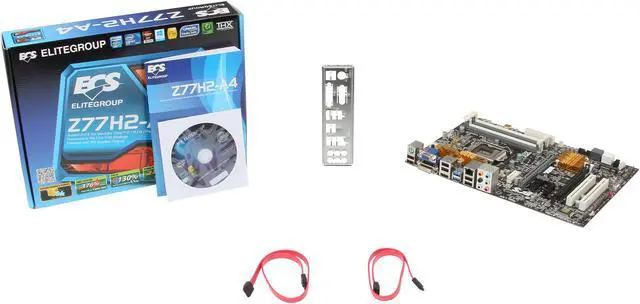

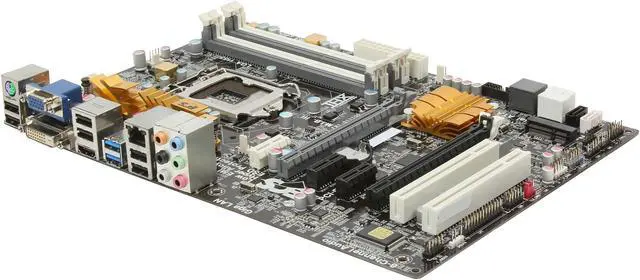

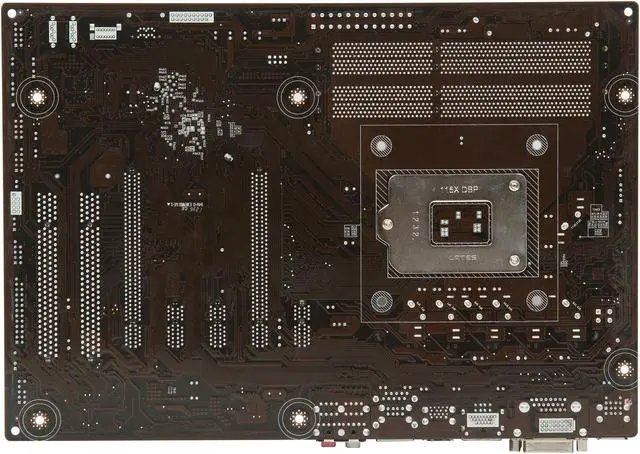

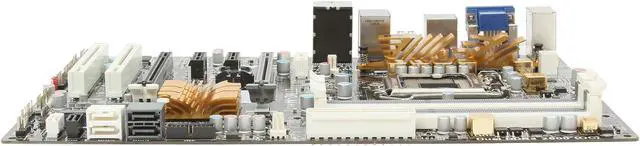

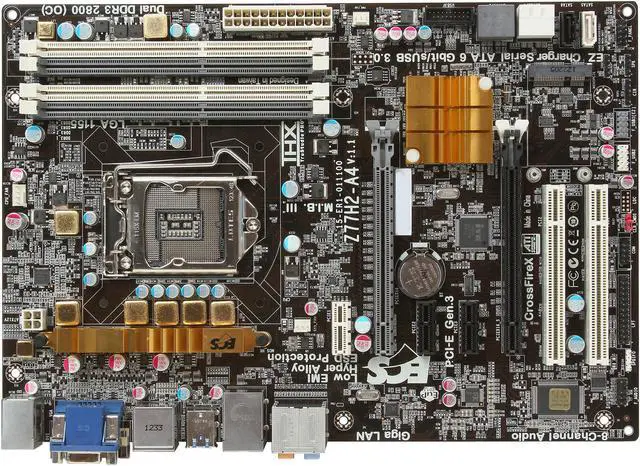

ECS Z77H2-A4 v1.1 LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard with UEFI BIOS
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 2800(OC)/2600(OC)
Learn more about the ECS (EliteGroup) Z77H2-A4 v1.1
| Brand | ECS |
|---|---|
| Model | Z77H2-A4 v1.1 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Chipset | Intel Z77 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 (Run x4 mode) |
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Mini Card Slots | 1 x miniPCI-E x 1 (mSATA connector) |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 2 x Serial ATA 3.0Gb/s (SATA2 1/ 2) and 2 x Serial ATA 6.0Gb/s (SATA3 3/ 4) support RAID 0, 1, 5, 10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |

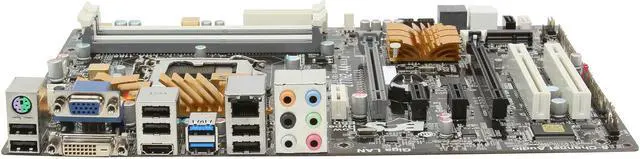

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 4-pin ATX Power Supply Connector 1 x 4-pin CPU_FAN connector 2 x 3-pin SYS_FAN connector 1 x 3-pin PWR_FAN connector 1 x COM header 1 x LDC header 1 x LPT header 1 x Case Open header 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header 1 x Clear CMOS header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.27" |
| Power Pin | 24 Pin |
| Features | Microsoft Windows 8 support Supports Intel K Series unlock CPU Apache Long-Life CAP provide full capability of stabilizing current and standing high temperature Applied 100% Solid capacitor design to maximize component reliability Introduced ECS Hyper Alloy Choke to offer 150% higher stability than other products ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan ECS EZ charger provide fast way to charge your smart devices, even if the PC is off ECS MIB III - A friendly interface for overclocking ECS Intelligent EZ Utility: eBLU, eDLU, eOC, eSF Supports GUI UEFI for tweaking BIOS in Graphics interface within a multi language environment Supports DirectX 11 for accelerated Blu-ray 3D and DivX decoding Supports ATI CrossFireX to expand your system's graphics capabilities Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports THX technology to deliver cinema-quality picture and sound to home environments Supports Intel Smart Response Technology, Smart Connect Technology & Rapid Start Technology Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version |
|---|
| First Listed on Newegg | January 17, 2013 |
|---|
