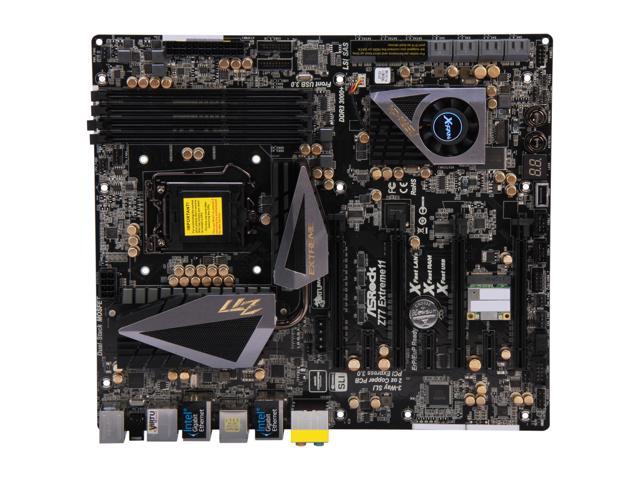

ASRock Z77 Extreme11 LGA 1155 Intel Z77 HDMI USB 3.0 Extended ATX Intel Motherboard
- Intel Z77
- Core i7 / i5 / i3 (LGA1155)
- DDR3 3000+(OC)/2400(OC)
Specs
Reviews (7)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the ASRock Z77 Extreme11
| Brand | ASRock |
|---|---|
| Model | Z77 Extreme11 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | 3rd / 2nd-generation Core i3, i5, i7 (LGA1155) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z77 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x1 | 3 x PCI Express x1 |
| Mini Card Slots | 1 x Mini PCIe |
| Serial ATA (SATA) | 2 x SATA3 6.0 Gb/s 8 x SAS2/SATA3 6.0 Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Additional RAID Controller | LSI SAS2308 PCIe 3.0 x8 controller, support RAID (RAID 0, RAID 1, RAID 1E and RAID 10), MegaRAID Utility, NCQ and Hot Plug |
| Audio Chipset | Realtek ALC898 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 82579V |
|---|---|
| Second LAN Chipset | Intel 82583V |
| Max LAN Speed | 1Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n |
| Bluetooth | Supports Bluetooth 4.0 Class II |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| HDMI | 1 x HDMI |

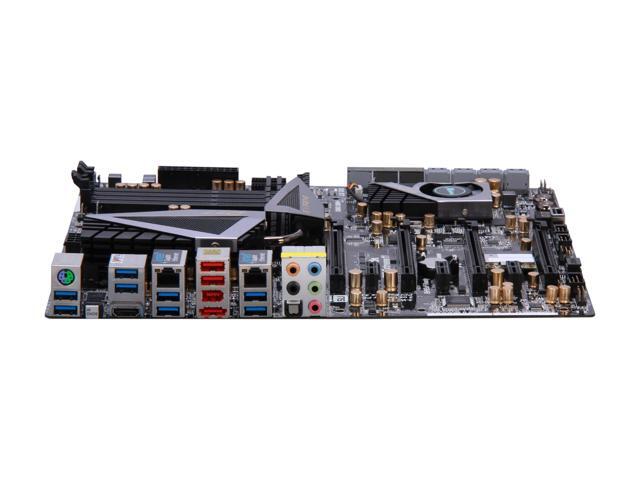

| USB 3.0 | 4 x Rear USB 3.0 ports by Intel Z77, support USB 1.1/2.0/3.0 up to 5Gb/s 4 x Rear USB 3.0 ports by Etron EJ188, support USB 1.1/2.0/3.0 up to 5Gb/s |
| USB 1.1/2.0 | 2 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 3.0 + 6 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Other Connectors | 1 x IR header 1 x CIR header 1 x COM port header 1 x Power LED header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) 1 x Power Fan connector (3-pin) 1 x SB Fan connector (3-pin) 24 pin ATX power connector 8 pin 12V power connector SLI/XFire power connector Front panel audio connector 1 x Vertical Type A USB 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 10" |
| Power Pin | 24 Pin |

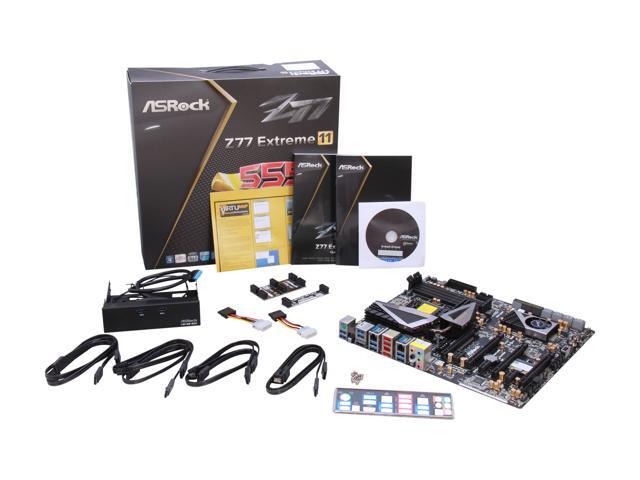

| Features | 8 SAS2/SATA3 from LSI SAS 2308 PCIe 3.0 x8 Controller 3-Way SLI & 4-Way CrossFireX supported by PLX 8747 bridge Premium Gold Caps, Digi Power Design, 8 + 4 Power Phase Design, Dual-Stack MOSFET Supports Dual Channel DDR3 3000+(OC) 3 x PCIe 3.0 x16 Slots, 1 x PCIe 2.0 x16 Slot, 1 x mini-PCI Express slot Intel PCIE Dual Gigabit LAN with Teaming Function 12 USB 3.0 (4 Front, 8 Rear) + 10 SATA3 (includes 8 SAS2/SATA3) 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudio Supports ASRock XFast 555, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Interactive UEFI Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP Free Bundle: 1 x WiFi + BT Module, 1 x ASRock Wi-SB BOX, MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite, Google Chrome and Toolbar |
|---|
| First Listed on Newegg | November 14, 2012 |
|---|
