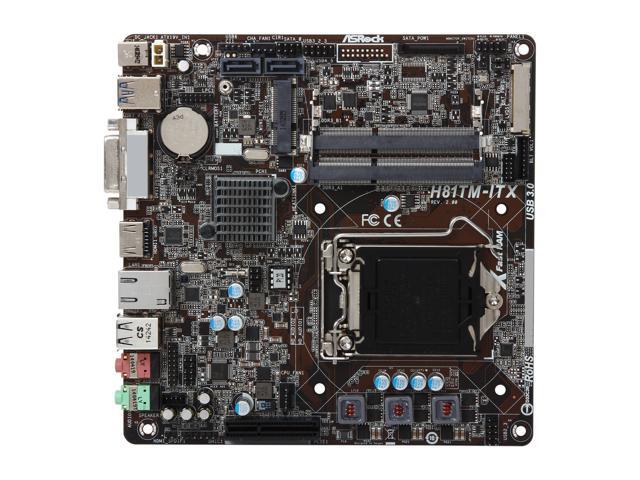

ASRock H81TM-ITX R2.0 LGA 1150 Intel H81 HDMI USB 3.0 Mini ITX Intel Motherboard

With quality and all essential features crammed into a book-sized package, the ASRock H81TM-ITX R2.0 is a great choice to build a “Haswell” based HTPC or small form factor system. It's based on the Intel H81 chipset and works flawlessly with 4th generation Intel Core processors in LGA 1150 architecture. With a DC-in jack, this motherboard can draw power from a laptop AC adapter instead of a bulky PSU, thus making more room for other components. A PCIe 2.0 x4 slot supports a discrete graphics card, and a half mini-PCIe is great for wireless module. This motherboard is also loaded with a wealth of cutting-edge technologies, performance enhancing ASRock innovations, and superb ASRock quality, making it the great foundation to build your next power house.

• Supports 4th Generation Intel Core™ i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150)
• Solid Capacitor for CPU power
• Supports Dual Channel DDR3/DDR3L 1600 memory, 2 SO-DIMM slots
• 1 PCIe 2.0 x4, 1 Half mini-PCIe
• Graphics Output Options: HDMI, DVI-I, LVDS
• Intel HD Graphics with Built-in Visuals
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• 2 SATA3, 2 USB 3.0, 7 USB 2.0 (5 Front, 2 Rear)
• 1 x COM Port Header, 1 x DC-In Jack (Compatible with 19V power adapter)
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop

DC-In Jack

Allocate the internal space of your chassis more smartly! The DC-In jack is compatible with the 19V power adapter. Without the bulky power supply unit, this unique design allows the motherboard to fit in compact chassis.

ASRock APP Shop

ASRock APP Shop is designed for your convenience. It provides various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

LVDS

This motherboard packs one LVDS connector for more graphics expandabilities. LVDS is able to run at high data transfer speeds and operate at low power. With 1920x1200 high resolution support and low power consumption, this motherboard is very ideal for AIO and extreme compact chassis.

4K x 2K

4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Get ready to lose yourself in this eye popping virtual reality.

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Surge Protection
Protects the motherboard from excessive surges from the power supply unit.

Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.

ESD Protection
USB: Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN: Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs: MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast LAN, XFast RAM, OC Tweaker, Live Update, Tech Service and a whole lot more!

USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI

Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

ASRock OMG (Online Management Guard)

Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

UEFI Tech Service

Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

Dehumidifier

Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

Easy Driver Installer

For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
