Question 1

The item description says that this board supports "8th Generation Intel Core Processors (Socket 1151)." Is this because it was made before the 9th generation i7 CPUs came out and, in either case, will it support an i7-9700KF?

Accepted Answer

If I remember correctly, 370 motherboards originally needed firmware updates to support the 8-core processors from the 9th generation, but I suspect that those have all rolled out by now. They're physically compatible to my knowledge, but the 390 boards are perhaps a bit more optimized for the 9th generation processors (including things like beefing up the power circuitry).
Also it might be worth noting that if you're looking at the 9700KF, you may not benefit from this board's extra video outputs, since I believe the 'F' indicates that the integrated graphics are disabled.

Question 2

does this support an i7?

Accepted Answer

Yes, but unlike a Z370 motherboard, it won't support overclocking.
Therefore, if you buy this board you can often save about $50 by getting a processor that doesn't have a 'k' on the end of the name (e.g. get an i7-8700 instead of an i7-8700k).

I recommend the PCPartPicker website for checking the compatibility of parts if you're not sure. Add your motherboard to your "parts list", and when you go to add a CPU, the compatibility filter (enabled by default) will only show you processors that will work with that motherboard. This also works in reverse, if you choose your CPU first.

In general, i3 vs i5 vs i7 processors will all work in the same motherboards. The exceptions to that rule are more about "would you really WANT to" situations. You wouldn't want to put an i3 processor into a $300 motherboard, just as you wouldn't want to put an i9-9900k into a $125 "just the essentials" motherboard.

Question 3

Why is there no GUI BIOS option?  I own this board, and it only displays the plain text BIOS screen, no GUI.  I have the latest 4.20BIOS.  ASrock is not responing.

Accepted Answer

Hello,

Thank you for contacting us in regards to your question. Unfortunately that is not a question we can answer, but you can contact the manufacturer directly for possible assistance. Their contact information can be found under the 'Warranty & Returns' tab.

Support Phone: 1-909-590-8308
Support Email: support@asrockamerica.com

Thank you,
Newegg Support

Question 4

What BIOS version does this ship with? I need at least 4.10 to support the i5-9500.

Accepted Answer

Hello Robert,

Thank you for contacting us in regards to your question.

Unfortunately we can not guarantee which BIOS version you would receive out of the box.

Thank you and have a nice day!
Newegg Support

Brand	ASRock
Model	Q370M VPRO

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 8th Generation Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * 8th Gen Intel CPU supports DDR4 up to 2666.
Maximum Memory Supported	64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* * Supports NVMe SSD as boot disks
PCI Express x1	2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots	1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)

Serial ATA (SATA)	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied, SATA3_4 and SATA3_5 will be disabled.
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
SATA RAID	0/1/5/10

ASRock Q370M VPRO LGA 1151 (300 Series) Intel Q370 HDMI USB 3.1 Micro ATX Intel Motherboard

Learn more about the ASRock Q370M VPRO

Customer Reviews of the ASRock Q370M VPRO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

PS/2	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port

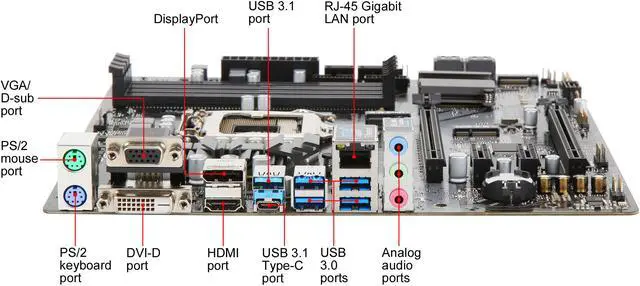

Video Ports	1 x D-Sub Port 1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort	1 x DisplayPort 1.2
USB 3.1	1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB Type-C	1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Onboard USB	2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x COM Port Header 1 x TPM Header (debug usage, not for external TPM module) 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector

Item#: N82E16813157846
