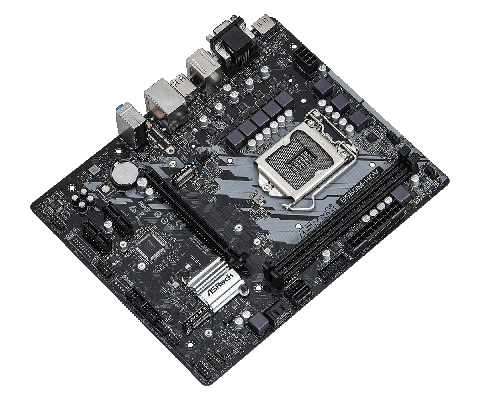

With robust power delivery design, DDR4 5000MHz (OC) support, and next gen PCIe 4.0 connectivity for graphics cards and M.2 SSD, this ATX motherboard offers a solid foundation for your new powerhouse based on the latest 10th / 11th Gen Intel Core processors. Super Alloy components ensure stability and reliability even in demanding environments. And HDMI, DVI and VGA video outputs work with most monitors natively, no adapter required*.
* Integrated graphics required to use onboard video outputs.
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
- Supports DDR4 5000 MHz (OC)
- 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA 3, 1 x Hyper M.2 (PCIe Gen4 x4)
- 1 x Ultra M.2 (PCIe Gen3 x4 & SATA 3)
- 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
- 6 x USB 2.0 (2 x Rear, 4 x Front)
- Intel Gigabit LAN
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removeing the bottleneck and increasing performance.

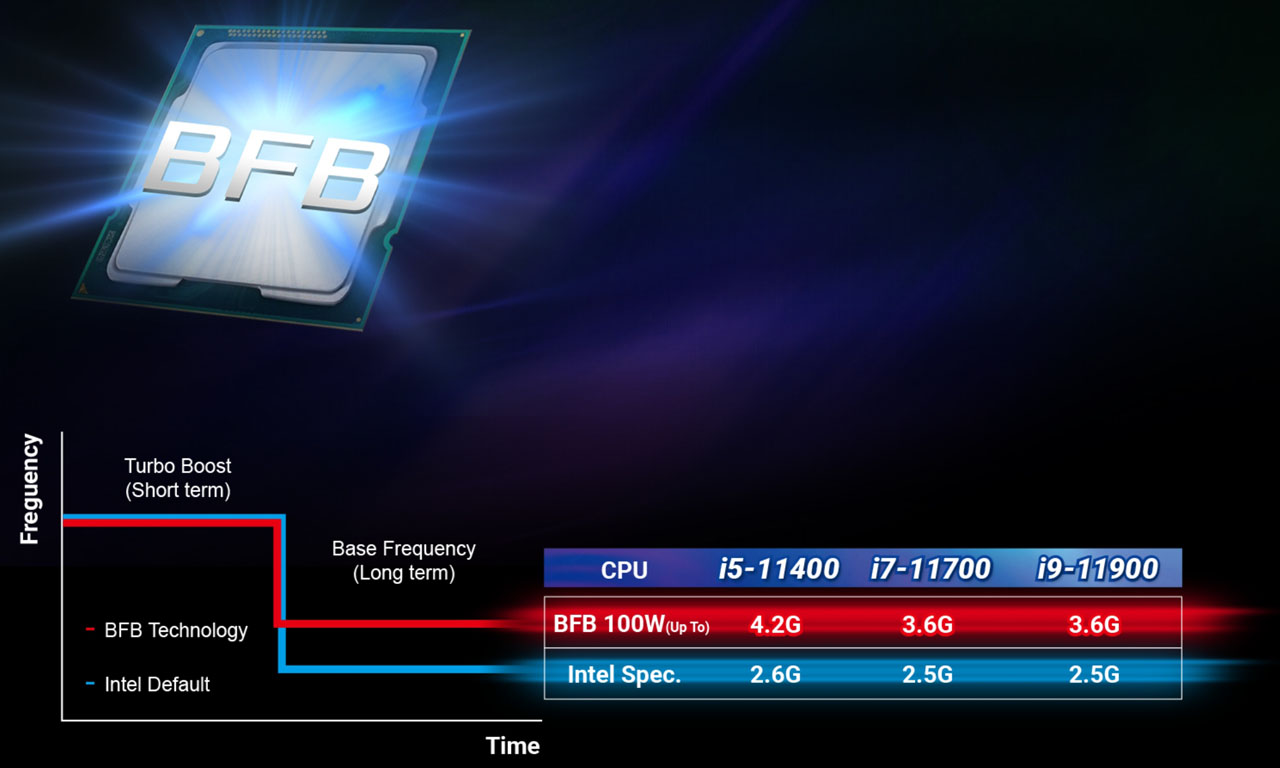

Who ever said that only K series CPUs and the Z-family platform are capable of performing with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs onto ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD that is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Complete with all three types of the most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
* Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
