CPU Socket Type	LGA 1700
CPU Type	Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700). Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* 1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. - Supports Intel Extreme Memory Profile (XMP) 3.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. * Supports NVMe SSD as boot disks - Supports AMD CrossFire
PCI Express 4.0 x16	2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode*
PCI Express x1	1 x PCIe 3.0 x1 Slot (PCIE2)

Serial ATA (SATA)	4 x SATA3 6.0 Gb/s Connectors
M.2	5 x M.2 (Key M) + 1 x M.2 (Key E) CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. * Either M2_1 or M2_2 can be used at a time. 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Audio Chipset	Realtek ALC897 Audio Codec - Nahimic Audio
Audio Channels	7.1 Channels

LAN Chipset	2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Max LAN Speed	2.5Gbps

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors	1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). ** CPU_FAN2/WP supports the fan power up to 2A (24W). * CHA_FAN1~5/WP support the fan power up to 2A (24W). *** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Model
Brand	ASRock
Model	Z790 LiveMixer

Item#: N82E16813162098

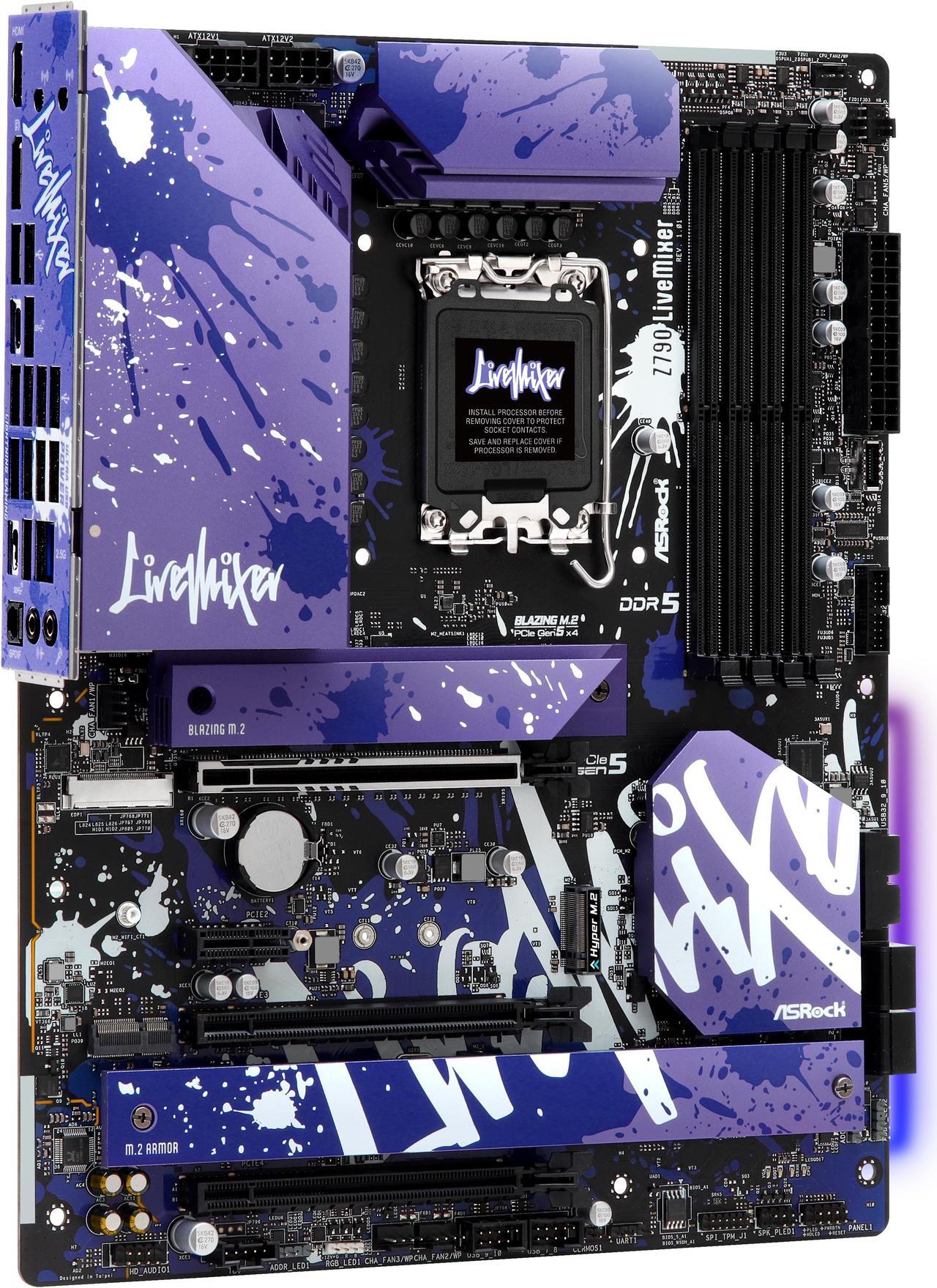

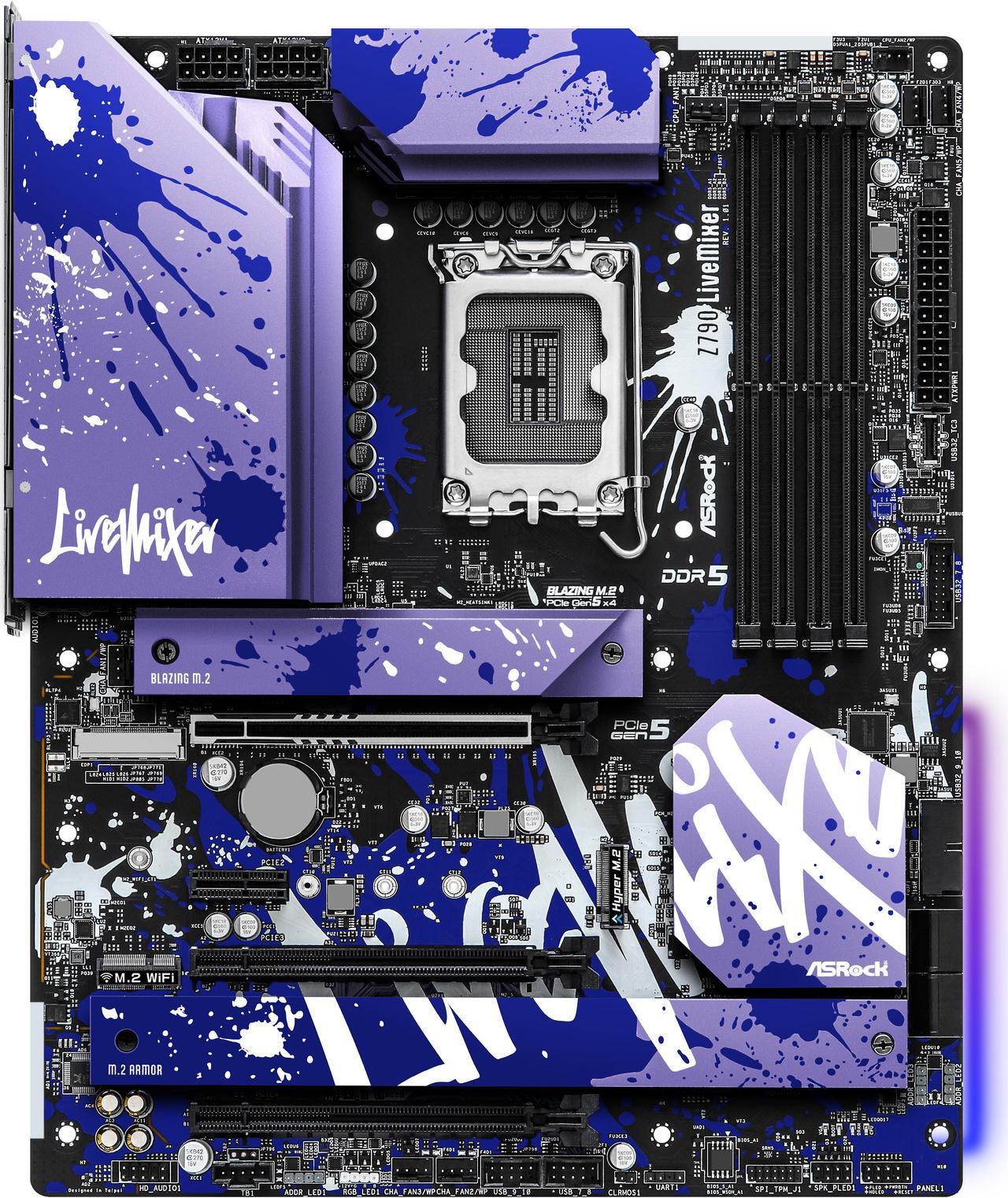

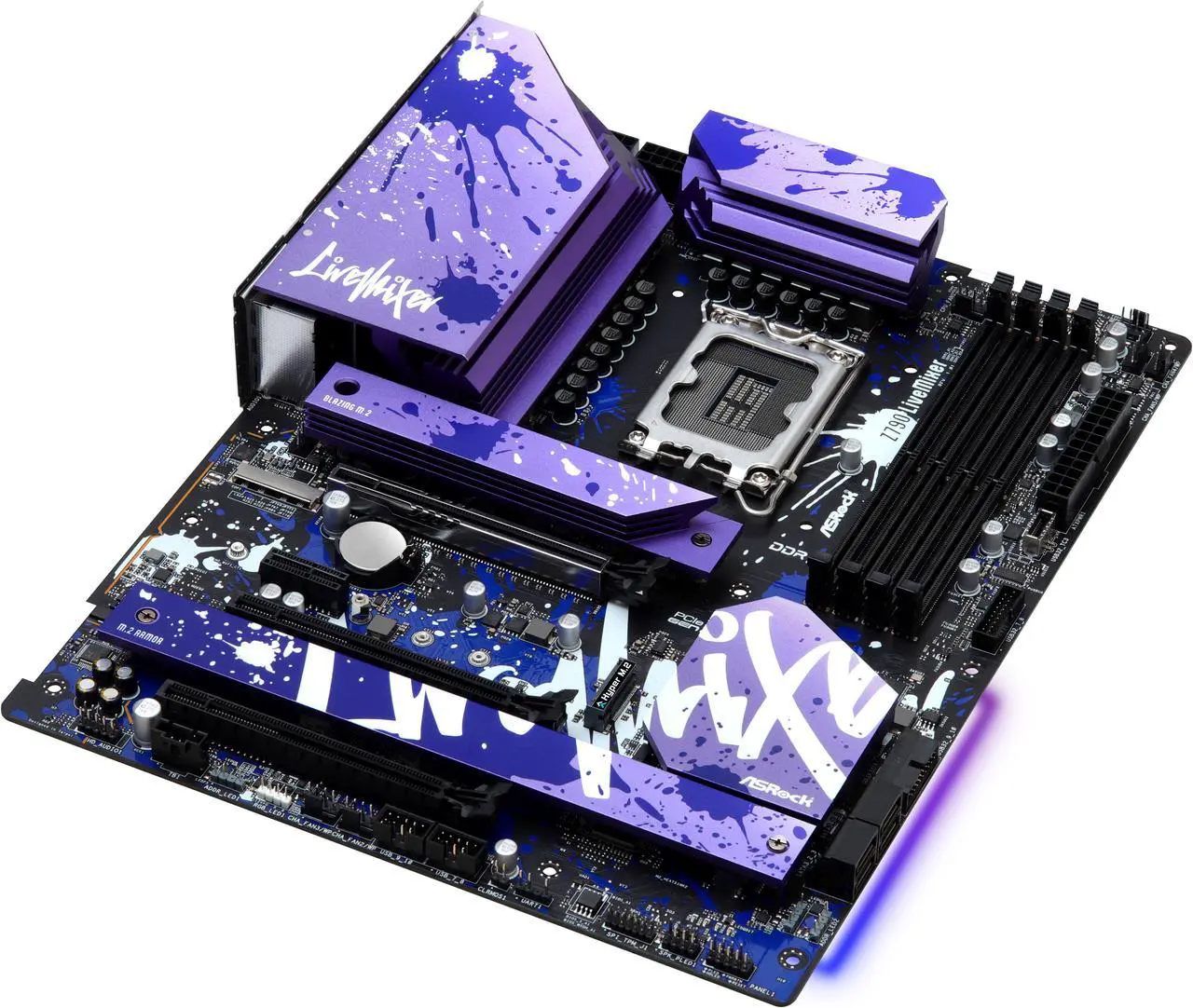

ASRock Z790 LiveMixer Intel LGA1700 (14th,13th,12th Gen) ATX Mainboard, 4 slots DDR5, PCIE 5.0 x16, 2.5Gb Lan, 7.1 Nahimic Audio, Front USB3.2 Gen2X2 Type_C, 14+1+1 Power Phase, AMD Crossfire support
