Question 1

Can you confirm that this board will work with an Intel G2020 Cpu?..  Thank you

Accepted Answer

Unfortunately some who purchased the board could not update the BIOS to recognize an Ivy Bridge processor without first getting the board running utilizing a Sandy Bridge processor. Your G2020 CPU is an Ivy Bridge processor. The BIOS version on the board I received is supposed to recognize Ivy Bridge processors like yours. The problem is that my processor was a Sandy Bridge so I can't tell you that your Ivy Bridge will be recognized. Unless you have a Sandy Bridge processor lying around and are comfortable flashing a BIOS you might want to keep looking for a board that definitely recognizes Ivy Bridge Processors.

Question 2

Is the Wifi pretty solid on this M.B. ?

Accepted Answer

The WiFi card that it comes with is of good quality however, it is a little bit old at this point, and does not support some of the latest WiFi technologies such as 5ghz networks. So in my opinion, it is not great. However, the card can easily be replaced for around $20.00 and you can still use the existing antennas/wiring. If your router does not have 5ghz capability, then this isn't an issue.

The range seems to be fairly good (I have full bars with the router on one end and my computer on the other end of my my 1100 sq ft apartment), but of course this will also depend on your router. I have never experienced connectivity issues or intermittent connectivity.

I replaced the WiFi card with a current intel model in order to take advantage of my 5ghz router, and had no issues. Just make sure you download drivers for the new card before installing it.

In summary, this has solid/dependable (but somewhat dated) WiFi hardware, but can be upgraded to the latest technology fairly cheaply. I hope this answers your question.

Question 3

Can some one confirm whether it works with ivy bridge cpu OUT OF BOX or not? Don't have a sandy bridge cpu to upgrade the bios.

Thanks!

Accepted Answer

Yes. I have bought an e3-1230v2 to install and worked fine without BIOS upgrade.

Question 4

If I put a decent GPU and a good processor in it with around 8GB of RAM, will this work for light to moderate gaming?

Accepted Answer

yes it will. games arent generally processor heavy they are gpu intensive they tax the crap out of your gpu's. and since most intel cpu's use a pch instead of a north/south bridge it doesnt really matter what processor you get aslong as its atleast a dual core with 3.0-3.5 ghz you are going to be okay. also note that you dont really need 8 GB/s of ram but its nice to have

Brand	ZOTAC
Model	H67ITX-C-E

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1066 / 1333
Maximum Memory Supported	16GB

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
Mini Card Slots	1 x Mini PCI Express (support WiFi)

Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	SATA 3Gb/s support 0/1/0+1/5

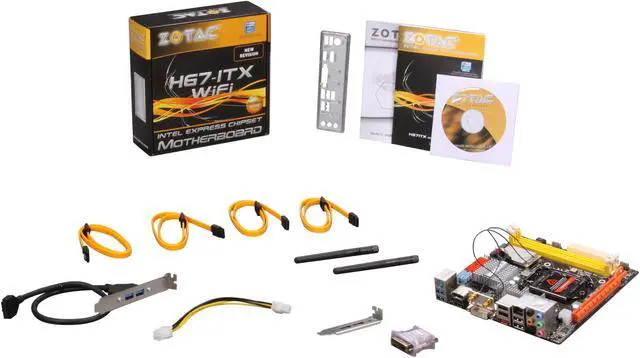

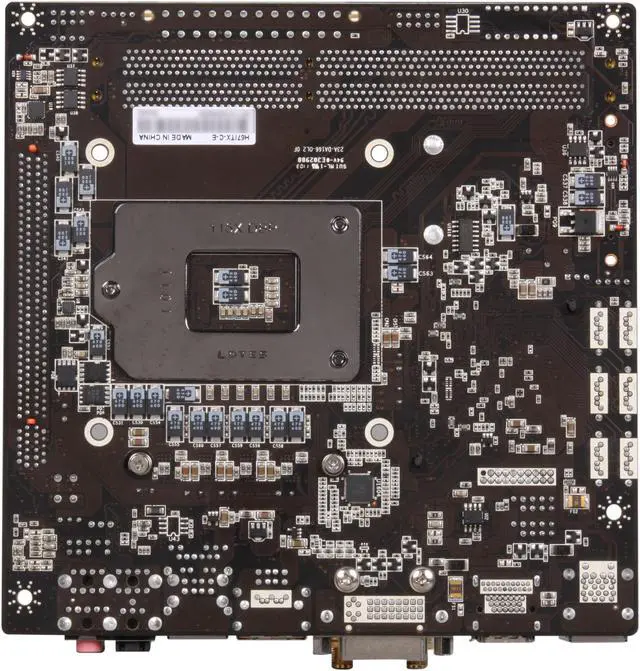

ZOTAC H67ITX-C-E LGA 1155 Intel H67 HDMI USB 3.0 Mini ITX Intel Motherboard

Learn more about the ZOTAC H67ITX-C-E

Customer Reviews of the ZOTAC H67ITX-C-E

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x DisplayPort / 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1
Video Ports	DVI
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
eSATA	1 x eSATA 3Gb/s
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 HD Audio Port (7.1-channel) 1 PS/2 keyboard/mouse port 1 Digital Optical S/PDIF outputs 1 Front panel audio header 2 Fan headers

Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	24 Pin

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	WiFi IEEE 802.11 n

Item#: N82E16813500064
