Question 1

How many slots does this card occupy?

Accepted Answer

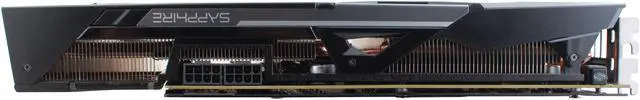

By looking at the provided pictures you can see how many PICe slots it will need on the motherboard, and the mounting plate with the monitor connectors has two legs meaning that it needs two ports open for all of the connectors to be visible from the outside.

tl:dr
One PCIE slot on the motherboard
Two terminal ports for user intercaing

Question 2

Does this Fury have the dual bios switch?

Accepted Answer

Yes it is located near the backplate on the PCB and can be accessed easily by taking the tower side panel off.

Question 3

Does it support hdcp over DisplayPort?

Accepted Answer

The specs on the cards box and online do not show it having HDCP, if that helps any?

Question 4

In the specifications this card is described as using a "Sapphire original pcb." Does this mean that the pcb is not a reference pcb? As such, does this mean that the standard EK water-blocks made for the furyx won't fit?

I've got the earlier model of this Sapphire card (the Tri-X version) and the EK FuryX water-block works great. I wanted to (in a few weeks) buy a second card for crossfire, but if I can't add it to the water loop because it uses a different pcb, then I'll have to buy an Asus, XFX, or Gigabyte version of the card. That is not ideal. I'd rather use two Sapphire cards.

Accepted Answer

It's a non-reference PCB with better capacitors and such to handle more power than the stock AMD design. Whether or not your cooler will fit will is a probably more likely a matter of how it mounts. Typically the mounting holes are a standardized arrangement

Brand	SAPPHIRE
Series	NITRO
Model	100379NTOCSR

Chipset Manufacturer	AMD
GPU Series	AMD Radeon R9 Fury Series
GPU	Radeon R9 Fury
Core Clock	1020 MHz

Memory Size	4GB
Memory Interface	4096-Bit
Memory Type	HBM

HDMI	1 x HDMI
DisplayPort	3 x DisplayPort
DVI	1 x Dual-Link DVI-D

Virtual Reality Ready	Yes
Cooler	With Fan
System Requirements	Power Connector: Total 375W including PCI-E bus Master FirmWare TDP Limit: 260W, Target GPU Temp: 75°C Secondary FirmWare TDP Limit: 300W, Target GPU Temp 80°C
Power Connector	2 x 8-Pin
Dual-Link DVI Supported	Yes

SAPPHIRE NITRO Radeon R9 Fury 4GB HBM PCI Express 3.0 x16 Graphics Card 100379NTOCSR

Learn more about the Sapphire Tech 100379NTOCSR

Customer Reviews of the Sapphire Tech 100379NTOCSR

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Form Factor & Dimensions
Card Dimensions (L x H)	12.09" x 4.92"
Slot Width	2 Slots

Item#: N82E16814202187
