DJI Spreading Wings S1000 Premium Octocopter with Zenmuse Z15-5D III (HD) and A2
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the DJI CB.SB.000025
| Brand | DJI |
|---|---|
| Model | CB.SB.000025 |
| Other Specification | DJI Spreading Wings S1000 Premium Professional Octocopter Supported Flight Control Systems: DJI A2, DJI WooKong-M Take-Off Weight: 13.3 to 24.2 lb / 6 to 11 Kg Total Weight: 9.3 lb / 4.2 Kg Battery Requirements - Lithium-polymer (LiPo) - 6S - 10,000 to 20,000 mAh - 15C or more Maximum Power Consumption: 4,000 W Hover Power Consumption: 1500 W -- at (9.5 Kg) takeoff weight Hover Time: 15 minutes -- with 15,000 mAh and (9.5 Kg) takeoff weight Operating Temperature: 14 to 104°F / -10 to 40°C DJI A2 Flight Control System for Multi-Rotor Aircraft Supported ESC Output: 400 Hz refresh frequency Supported Transmitters: With Built-in Receiver: Futaba FASST series and DJI DESST series Supported External Receivers: Futaba S-Bus, S-Bus2, DSM2 Other DJI Products Supported: Z15, H3-2D, iOSD, 2.4G Bluetooth Data Link, and S800 EVO Hovering Accuracy (GPS Mode): Vertical: ±1.6' / 0.5 m Horizontal: ±4.9' / 1.5 m Maximum Wind Resistance: < 26.2 fps (8 m/s) / 17.9 mph (28.8 km/h) Maximum Yaw Angular Velocity: 150 deg/s Maximum Tilt Angle: 35° Ascent/Descent: ±19.7 fps / 6 m/s Power Requirements: Maximum: 5 W Typical: 0.3 A at 12.5 V System Requirements: Assistant Software: Windows 8, 7, or XP SP3 -- 32 or 64-bit Operating Temperature: 23 to 140°F / -5 to 60°C Dimensions: Flight Controller: 2.1 x 1.5 x 0.6" / 54 x 39 x 14.9 mm IMU: 1.6 x 1.2 x 1" / 41.3 x 30.5 x 26.3 mm GPS-Compass Pro: 2.4" (diameter) x 0.6" / 62 mm (diameter) x 14.3 mm LED-BTU-I: 1.2 x 1.2 x 0.3" / 30 x 30 x 7.9 mm PMU: 39.5mm x 27.6mm x 9.8mm Weight: Overall: 7.9 oz / 224 g DJI Zenmuse Z15-5D III (HD) 3-Axis Gimbal for Canon 5D Mark III Power Requirements: GCU: 4S to 12 S LiPo (6S recommended for S1000) Operating Temperature: 14 to 122°F (-10 to 50°C) Dimensions: Gimbal: 11.1 x 9.5 x 8.7" (281 x 242 x 222 mm) GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm) Weight: Gimbal: 3.4 lb (1.5 kg) GCU: 2.2 oz (63 g) |
|---|

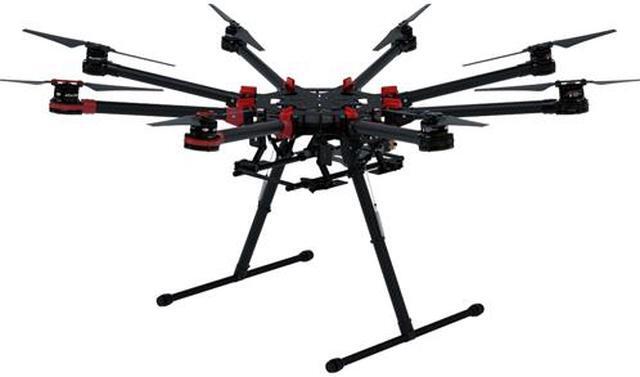

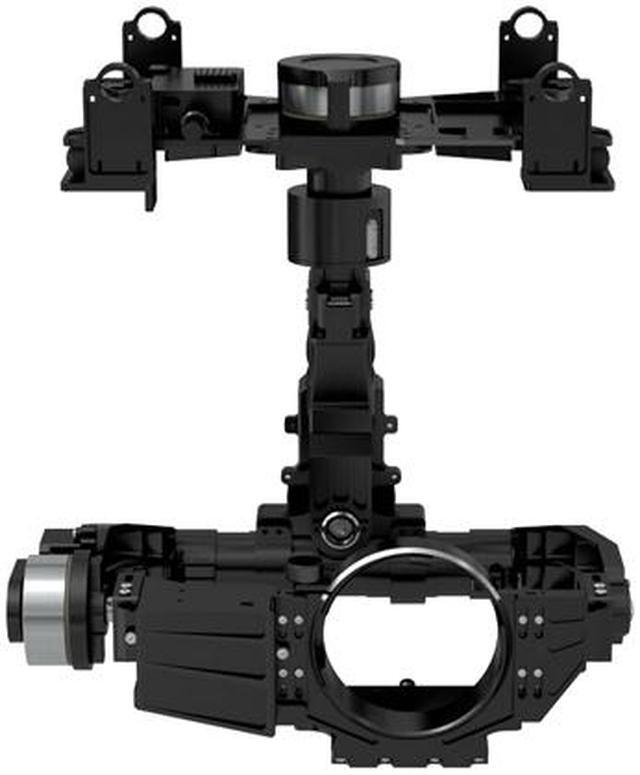

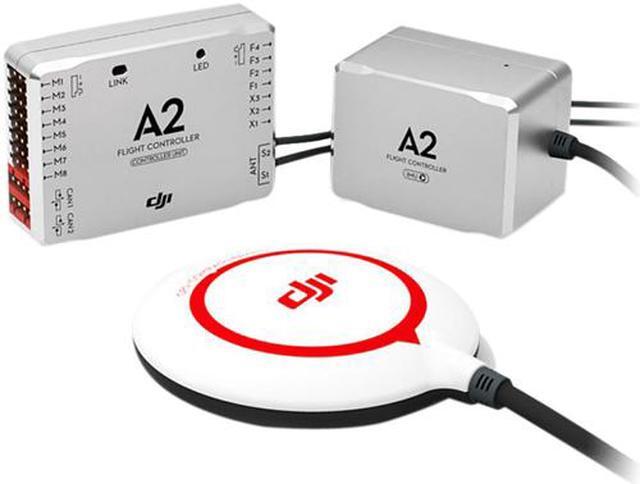

| Features | The Spreading Wings S1000 Premium Octocopter with Zenmuse Z15-5D III (HD) and A2 is a bundle from DJI that features the S1000 Octocopter and the Zenmuse Z15-5D (HD) 3-axis gimbal that is specifically configured for the Canon 5D Mark III. The S1000 is a collapsible, eight-propeller RC helicopter designed to carry a DSLR or similar-sized camera. The aircraft is intended to serve as a platform that, combined with the gimbal, allows professional videographers and photographers to add dynamic aerial shots to their productions. It features the DJI A2 flight control system, a collection of hardware components that control mixing, regulate power, provide sensor data, and include a 2.4 GHz DR16 receiver. The flight control system features attitude and GPS attitude flight modes, offering the pilot varying degrees of autopilot intervention depending on skill level and preference. In GPS mode it is possible to hover in a fixed position, which is ideal for capturing static video shots. In attitude mode, the flight controller will use IMU data to keep the aircraft stable, but when hovering it may drift due to inertia or wind currents. The A2 also features return to home, Intelligent Orientation Control, and other features made possible thanks to computerized, GPU-based flight control. For stabilizing and moving the camera in flight, this bundle features the Zenmuse Z15-5D (HD), a 3-axis gimbal specifically for the Canon 5D Mark III DSLR. The airframe features a dampened gimbal mounting bracket with a low mounting position. Additionally, the landing gear can be raised, allowing an unobstructed 360° of visibility. This the HD version of the gimbal which means there is an HDMI signal relay through it for connecting the Lightbridge Air Unit. This Kit Includes: - DJI Spreading Wings S1000 Premium Professional Octocopter - DJI A2 Flight Control System for Multi-Rotor Aircraft - DJI Zenmuse Z15-5D III (HD) 3-Axis Gimbal for Canon 5D Mark III |
|---|
| Package Content | Spreading Wings S900 Hexcopter - Center Frame - 6 x Frame Arms - 2 x Landing Skid Tubes - 2 x Landing Gear legs - GPS Collapsible Mount - 2 x Springs - Connector Set - 3-pin Servo Cable - Screw Package - 2 x Spare CW Propellers - 2 x Spare CCW Propellers - 4 x Magic Tape - 6 x Red Knobs - 50 x Soft Vibration Absorbing Gaskets - Limited 1-Year Warranty on ESC and MC; Limited 6-Month Warranty on GPS, IMU, and Motors A2 Flight Control System for Multi-Rotor Aircraft - LED-BTU-I LED Bluetooth Indicator for A2 Flight Control System - MC for A2 Flight Control System - PMU for A2 Flight Control System - GPS Bracket for A2 Flight Control System - IMU Module for A2 Flight Control System - GPS-PRO Module for A2 Flight Control System Zenmuse Z15-N7 3-Axis Gimbal for Sony NEX-7 - Gimbal Control Unit (GCU) - Lens Retaining Ring - Lens Retaining Ring Shim - 4 x Mounting Bracket - Camera Mount Screw - Lens Retaining Ring Screw - Gimbal Video Power Cable - Micro - USB Cable - CAN-Bus Cable - Spare Package |
|---|
| Date First Available | June 01, 2015 |
|---|
