SUPERMICRO SYS-2027R-WRF 2U Rackmount Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

(2) Write a Review
  • Dual LGA 2011
  • Support Dual Intel Xeon E5-2600 Series
  • 16 x 240Pin Memory Slots (Max 1TB)
  • 740W (1+1) Redundant high-efficiency power supply with PMBus
Overview
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

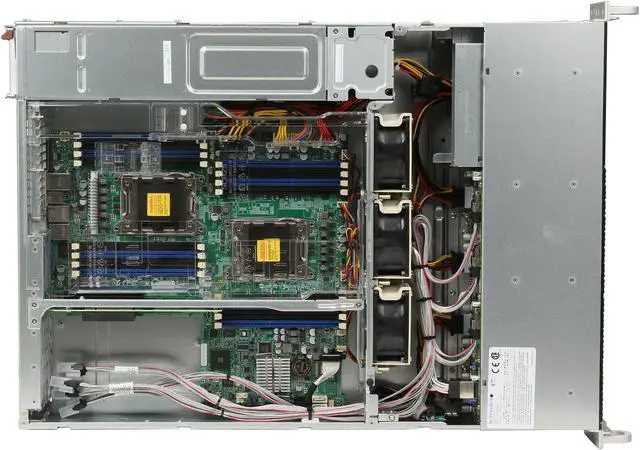

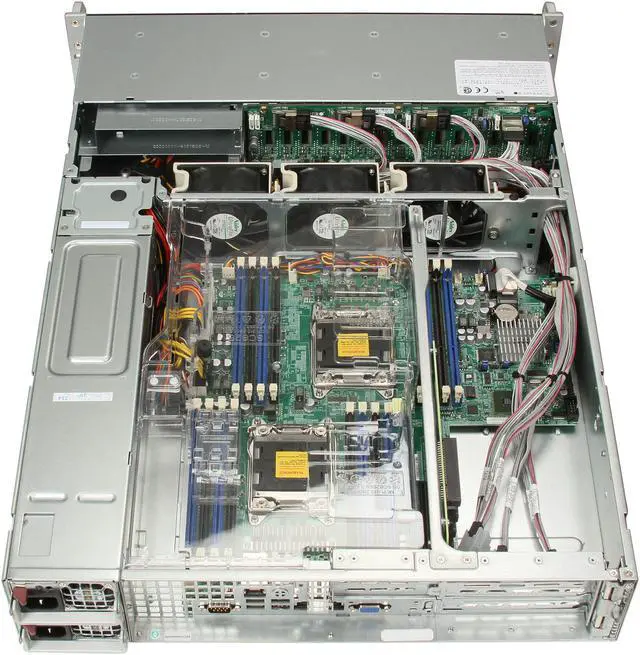

SUPERMICRO SYS-2027R-WRF 2U Rackmount Server Barebone

Key Features


PHILIPS
  1. 1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  2. 2. Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM sockets
  3. 3. 4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
  4. 4. Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports
  5. 5. 16x Hot-swap 2.5" SAS/SATA HDD bays for Customizable Storage
  6. 6. 740W Redundant Power Supplies Platinum Level (94%+)


Specifications

Product SKUs
SYS-2027R-WRF SuperServer 2027R-WRF (Black)
Motherboard
Super X9DRW-iF
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP)
Note † BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Up to 1TB DDR3 ECC LRDIMM
  • Up to 512GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • G200 (Renesas SH7757 BMC)

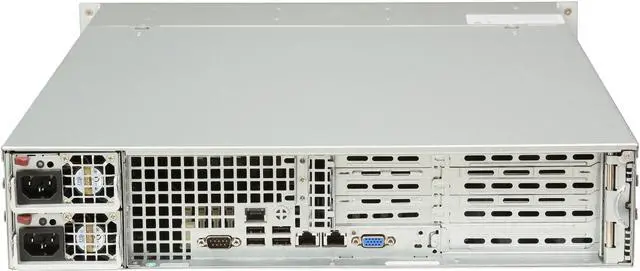

Input / Output
SAS/SATA
  • Customizable storage
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 6x USB 2.0 ports total
    (4x rear + 2x via header)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header

What's in the Box

PHILIPS

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
