Form Factor
1U
CPU Number
1
Memory Number
24
- Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, four NVMe in middle bay, and three PCIe 5.0 slots for higher bandwidth and system upgrades
- Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Ready for AI and HPC workloads: Up to two single-slot GPUs.
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.
* SAS support only from optional SAS HBA/RAID card.
** Once the server is sold, the middle bay cannot be expanded or sold separately.

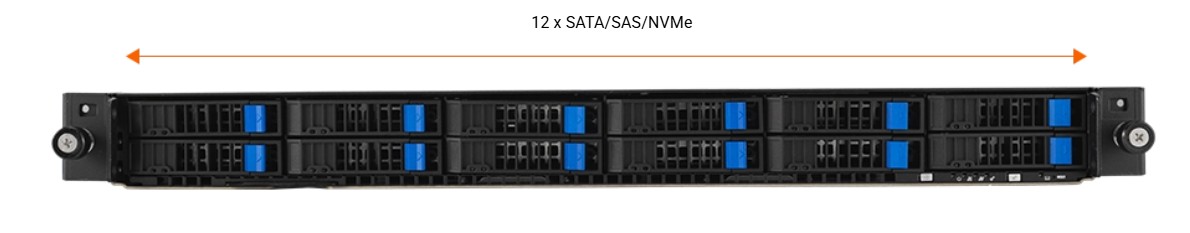

Front Panel
* SAS support only from optional SAS HBA/RAID card.

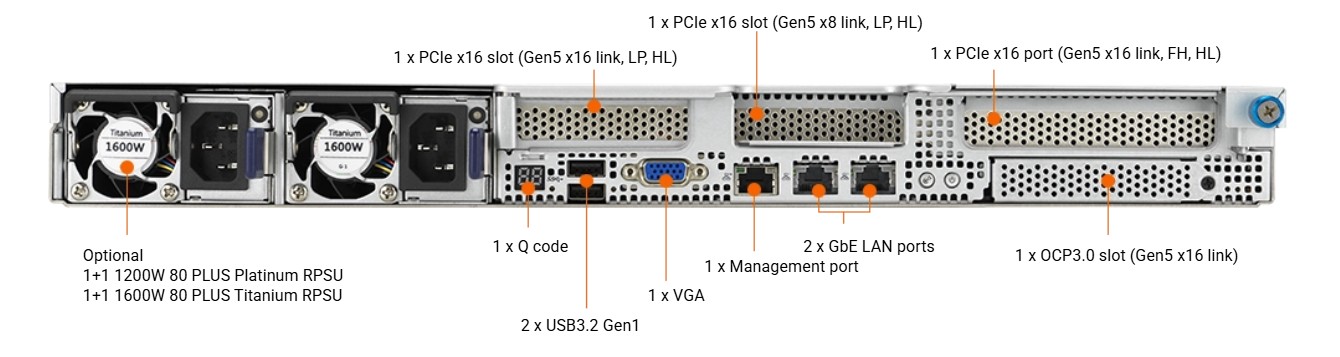

Rear Panel
AMD EPYC™ 9005-series CPUs amplify the AMD history of x86 architecture innovations and record-breaking performance with next generation 3nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9005 CPUs support 12 memory channels with two DIMMs/channel capability, delivering the resources needed for memory hungry AI-enabled data center workloads, ML, HPC and large in-memory computations.
* CPU performance varies by model.
Up to
1.152 GB L3 Cache
with AMD 3D V-Cache technology
Up to
192 cores
on Zen 5c
128
PCIe5 lanes in a 1 socket server
ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.
ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.
Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.
Automatic power acceleration with an innovative voltage design to increase server overall performance.
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.
* SPEC is a corporation formed to establish and endorse standardized benchmarks and tools to evaluate performance and energy efficiency of computer systems.
ASUS select servers achieved most power efficiency positions on the SPEC Power benchmark for energy efficiency and demonstrate to customers how they can achieve faster deployments and higher energy efficiency for their IT infrastructure.
Adjust overall loading automatically based on real-time monitoring to decrease overall power consumption for Improved efficiency and cost/performance optimization.
Features intelligent fan-curve adjustments to fit the real-time server usage patterns and lower fan power consumption.
This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to two single-slot active or passive GPUs, and Xilinx Alveo accelerators. The scalable configurations in one 1U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
* The total number of NVMe drives installed will affect the total number of GPUs that can be installed.
* FPGA Xilinx verification is available on request.
ASUS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As our long-term partnership with NVIDIA and ISV certifications, we're fully invested in the Omniverse ecosystem and ready to help our partners develop new segments on this exciting platform.

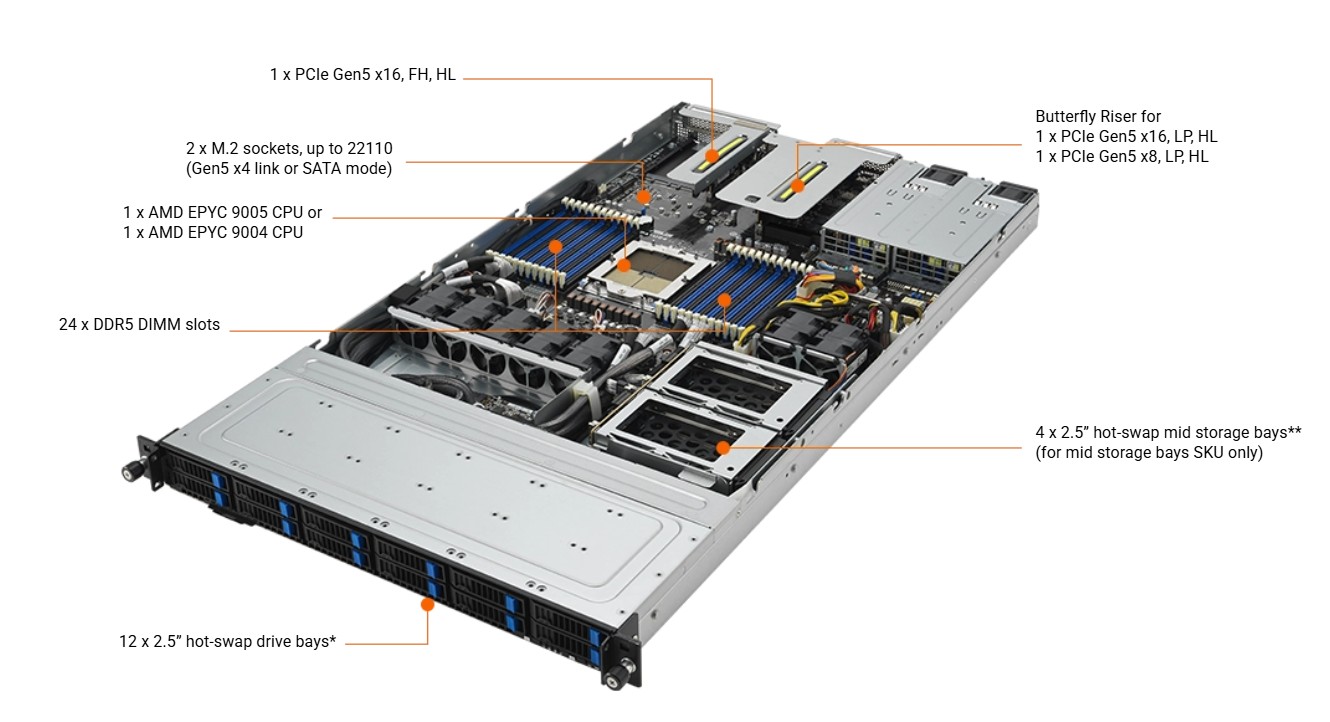

This server features unique design of additional four 2.5” internal storage supporting NVMe and SATA in middle bay*, allowing up to 16 all-flash NVMe drives for different configurations.
* 4 x 2.5” SATA/NVMe in middle bay is for mid storage bays SKU only
* Once the server is sold, the middle bay cannot be expanded or sold separately
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API..
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.
