* Turin BIOS can be flashed only if your Server build model is from May 2025, if not sure please contact ASUS support team for further advice.
Form Factor
2U
CPU Number
1
Memory Number
12

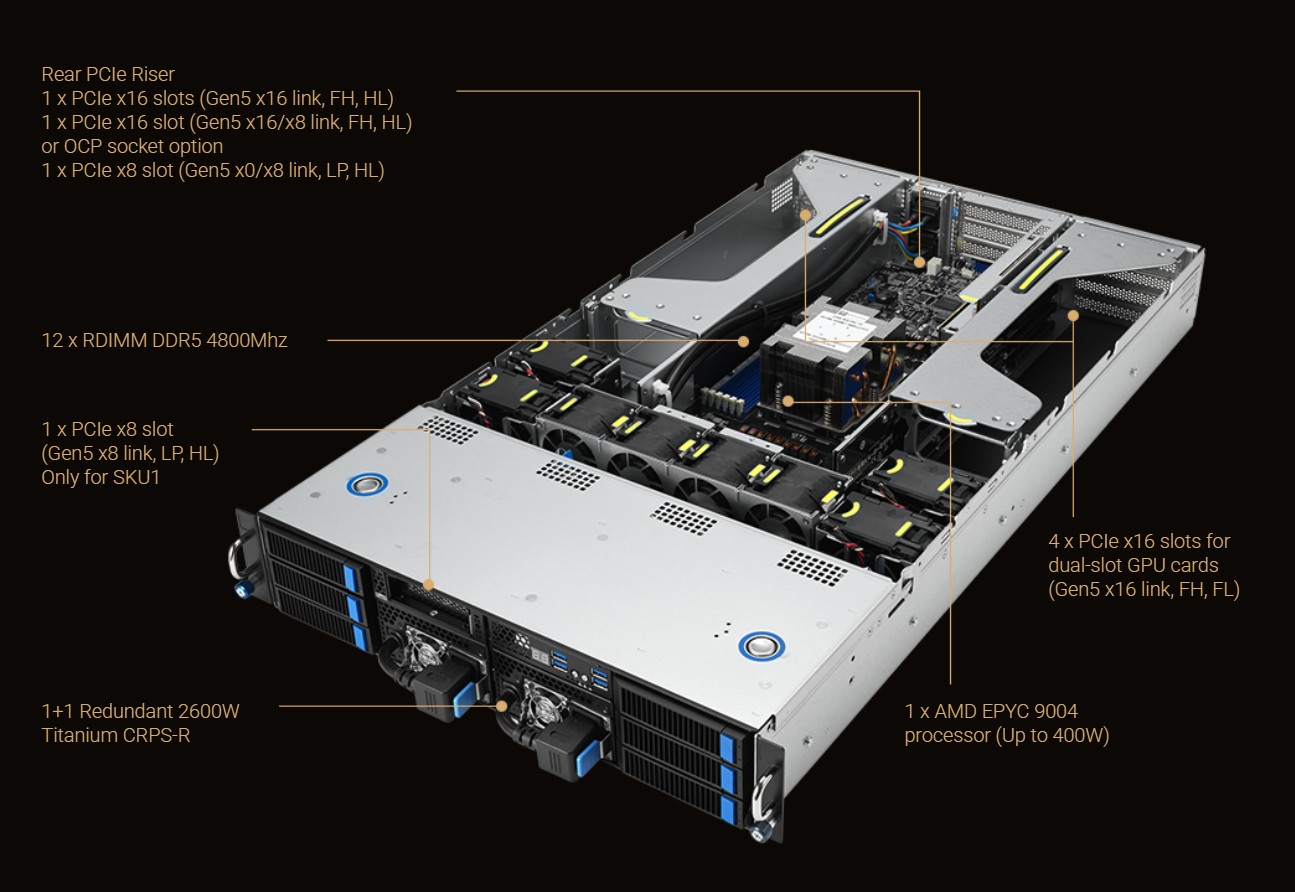

- Powerful performance: Powered by AMD EPYC 9004/9005 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation
- Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
* Turin BIOS can be flashed only if your Server build model is from May 2025, if not sure please contact ASUS support team for further advice.

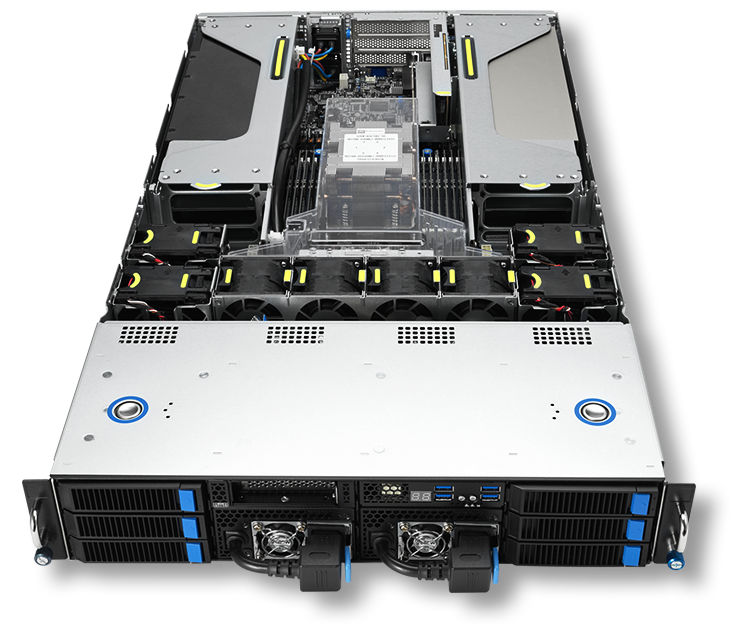

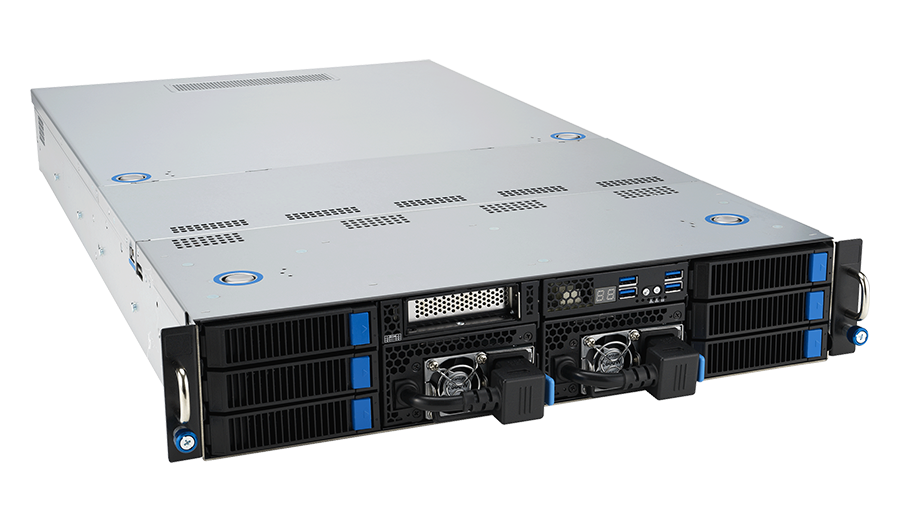

ESC4000A-E12 is an AMD EPYC™ 9004/9005 single-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to four dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge or AMD Infinity Fabric™ Link to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better lane scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready, with scalable designs to satisfy the increasing workloads or modern data centers.

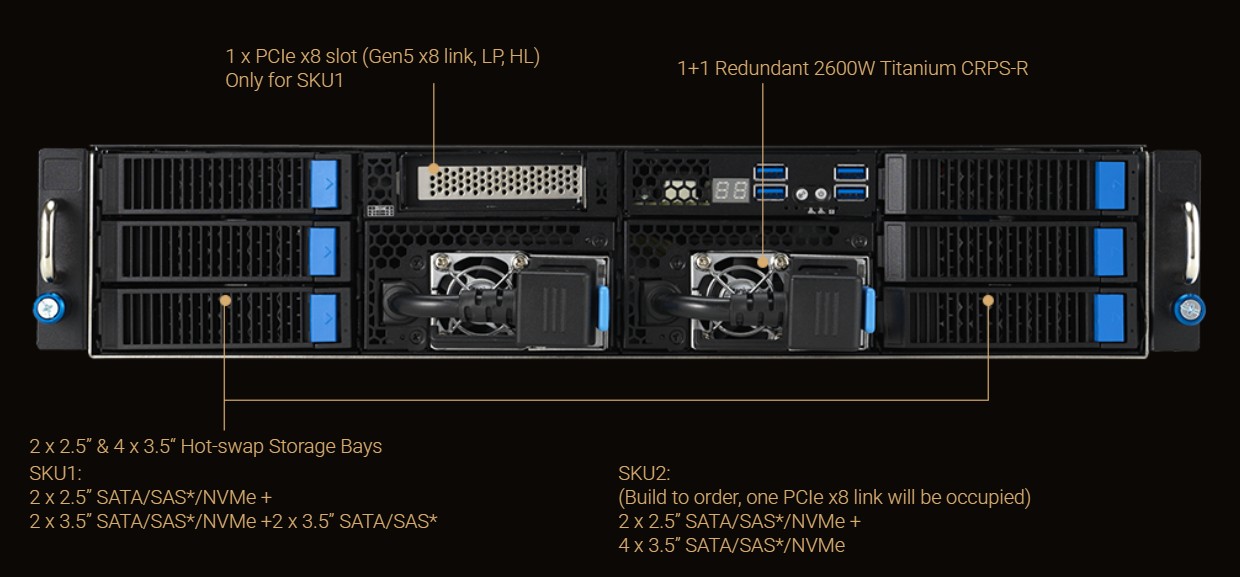

Front Panel
* SAS support required a HBA/RAID card.
* For SKU1, additional 2 x NVMe support required a RAID card.

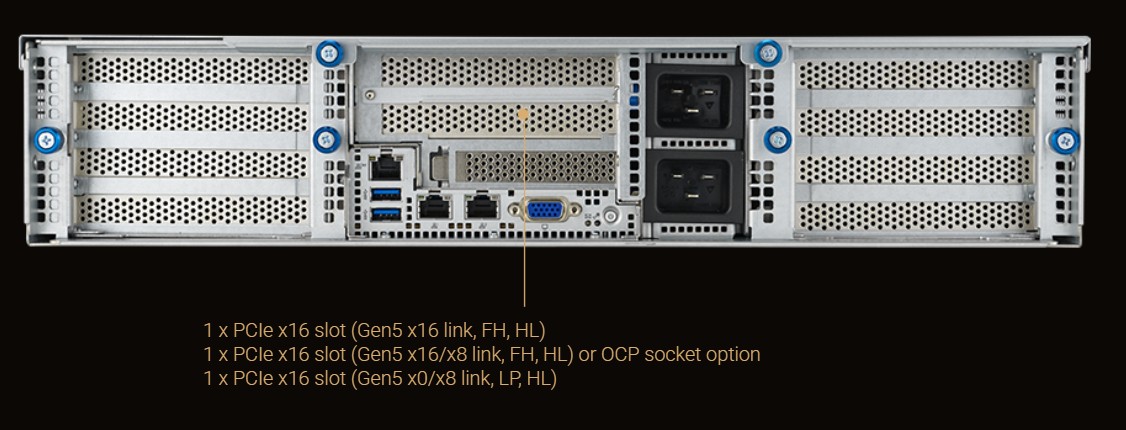

Rear Panel
Data centers can consume huge amounts of electricity, raising environmental concerns. ASUS servers are designed to optimize both total cost of ownership (TCO) and total cost to the environment (TCE), including thermal design, power efficiency and advanced cooling solutions — reducing the impact of our products on the planet.

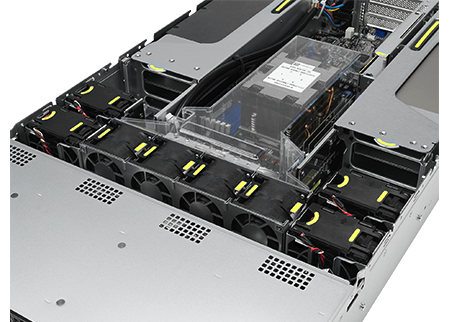

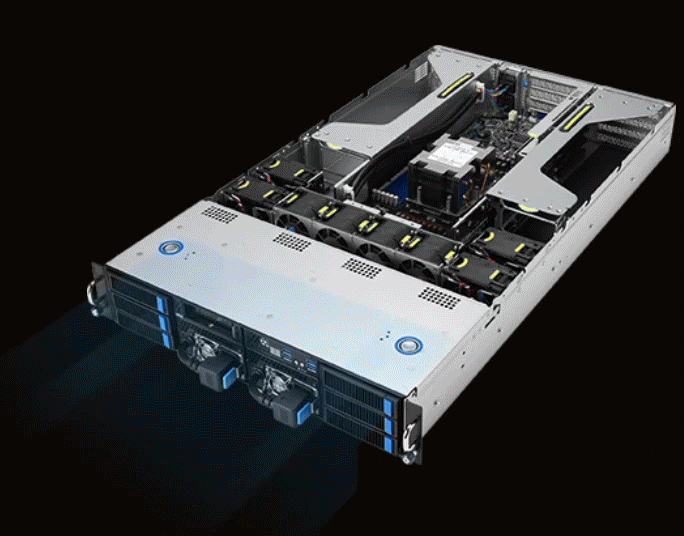

Our servers features a streamlined design with dedicated CPU and GPU airflow tunnels for seriously efficient heat dissipation. This advanced design provides better cooling for both the GPU and CPU, enabling heat to be expelled into the surrounding ambient air for greater energy efficiency and overall savings on system power.
ESC4000A-E12 supports 2600 W 80 PLUS® Titanium redundant power supplies to ensure power is supplied to the system equally from all power sources, maximizing efficiency and enabling uninterrupted operation.
Advanced ASUS management tools comprise IT assets management, security and reliability to improve the performance, up-time and real-time monitoring of the servers remotely — highly increasing the efficiency of IT infrastructure.
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.
NVIDIA is dedicated to its partners and believes that a strong partnership is the foundation of mutual success.
ASUS has the world’s best PCs, servers, monitors and graphics cards. With an expanding range of superior content-creation and gaming products, ASUS leads the industry through innovation to create the most ubiquitous, intelligent productivity.
Connect to the top industry apps your teams use every day, with plug-ins that enable live-sync collaboration and iteration across multiple software suites simultaneously — all brought together in Omniverse Enterprise.
Reduce deployment risks with a complete suite of VMware data-center products for Omniverse Enterprise.
ASUS servers feature three easy-access covers that can be opened without tools, enabling IT staff to perform maintenance on specific components without removing the server fully from the rack.
ASUS servers have a visible Q-Code/port-80 LED display LED for simple monitoring of the entire boot process, from power on through loading of the operating system.
ASUS servers feature multiple hot-swap components, including fans, power supplies and storage for easy troubleshooting to keep 24/7 seamless operations.
The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.
Up to
128
Zen 4c cores
Up to
1,150 MB
L3 Cache with AMD 3D V-Cache technology
128
(1 socket) PCIe 5.0
