How did you setup the RAID? Was there a web GUI or did you have to hook it up to an external computer?

Also what operating system did you use to hook it up? Did you put an operating system on the device?

I have never used a centralized system before for storage, and right now all the servers I have are ubuntu and was wondering if I purchased this, would I be able to use it with ubuntu? Did you use a fiber connection or an ethernet one?

Thanks in advance!

Question

How did you setup the RAID? Was there a web GUI or did you have to hook it up to an external computer?

Also what operating system did you use to hook it up? Did you put an operating system on the device?

I have never used a centralized system before for storage, and right now all the servers I have are ubuntu and was wondering if I purchased this, would I be able to use it with ubuntu? Did you use a fiber connection or an ethernet one?

Thanks in advance!

Accepted Answer

This is an external enclosure only for "Just a bunch of drives (JBOD)"  You will have to have another computer to hook up to this.

I bought a couple of IBM M1015 cards off of another website that allows you to bid on items and converted them to an LSI 9220-8i card. (Gsearch on how to do that)

I used internal sff-8087 cables to go the external sff-8088 inputs on this box. The software I used is called "FreeNAS" and works flawlessly..

Hope that helps a little.. good luck!

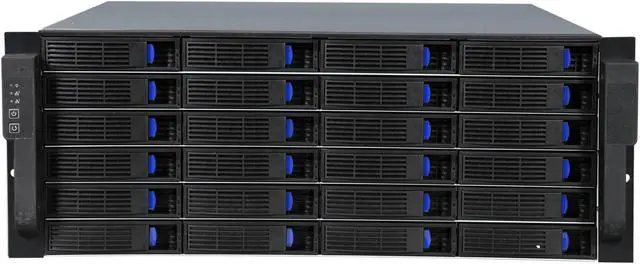

Drive Bay	24 x hot-swappable SATA II, III/SAS 6G drive bays

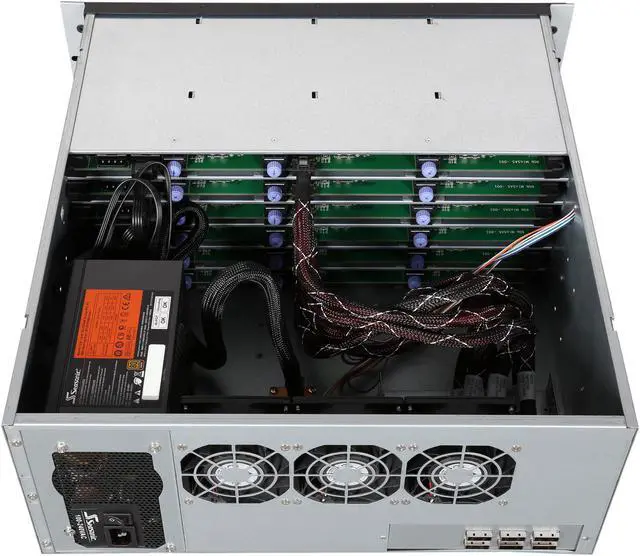

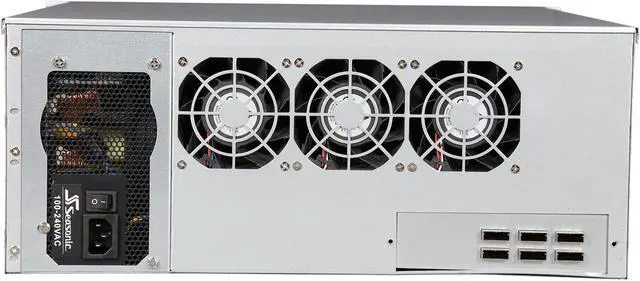

Cooling Fan	3 x 80mm rear fans
Connector	Six SFF-8088 external connectors
OS Support	OS Independent
Power Supply Options	Come with standard ATX power supply
Dimensions (W x D x H)	19 x 18.9 x 7.0" (483 x 480 x 176mm)
Packing	Double boxes
Weight (without hard drive)	38lbs (17.2kg) (NET) 41lbs (18.6kg) (GROSS)
Environment Temperature	32 - 104°F (0 - 40°C) (Operating) -4 - 140°F (-20 - 60°C) (Non-Operating)
Relative Humidity	5% to 95%, non-condensing

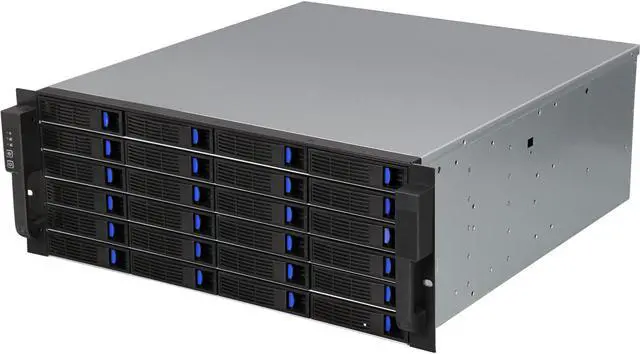

External 4U 24 Bay Hot-Swap 6G SAS / SATA III Rackmount RAID / JBOD Enclosure

External 4U 24 Bay Hot-Swap 6G SAS/SATA III

Rackmount RAID/JBOD Enclosure

Features

Specifications

Learn more about the Detailed Specifications

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16816133046
