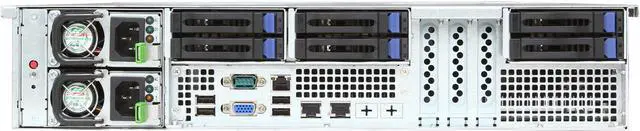

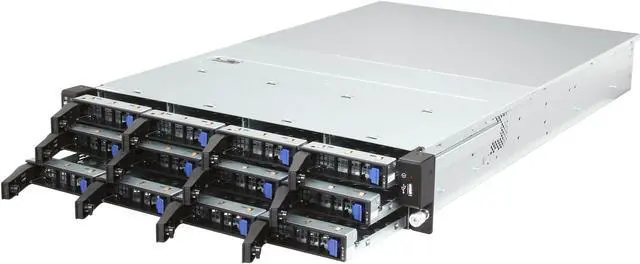

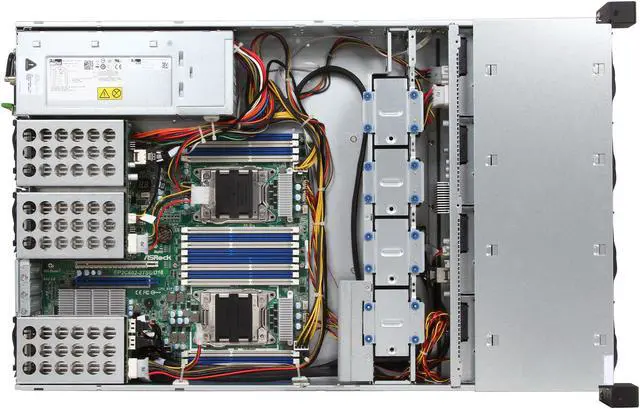

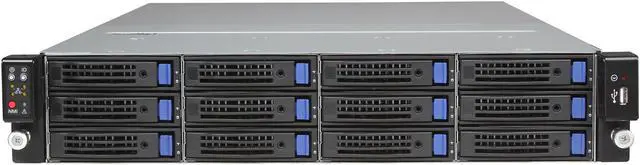

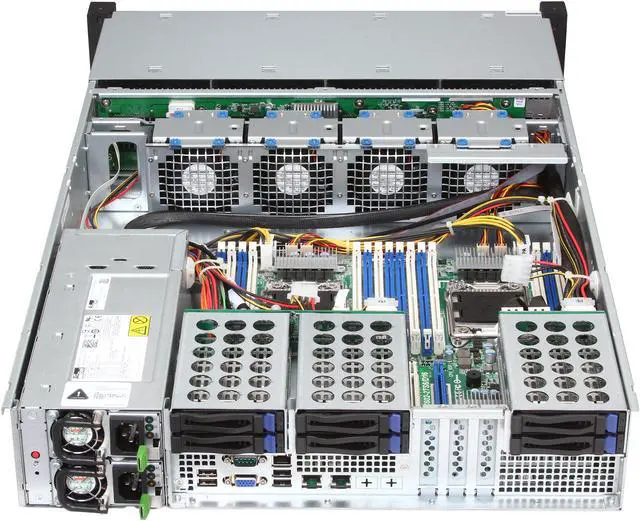

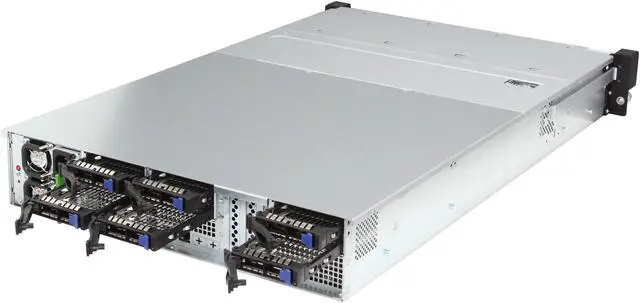

Main image of ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 2 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 3 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 4 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 5 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 6 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 7 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 8 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 9 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Alt view image 10 of 10 - ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

See more

Shop All ASRock Rack Products

ASRock 2U12L6SW-2TS6 2U Rackmount Server BareboneDual LGA 2011 Intel C602 DDR3 1600/1333/1066 650W Redundant PSU, Gold

Be the first to review this product...

Dual LGA 2011
Dual Intel Xeon E5-1600/2600/4600 & v2 Series
16 x 240Pin Memory Slots
1+1 Redundant 650W,Gold

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack 2U12L6SW-2TS6

General
Brand	ASRock
Model	2U12L6SW-2TS6
Form Factor	2U Rackmount

CPU Supported
CPU Type	Dual Intel Xeon E5-1600/2600/4600 & v2 Series
CPU Socket	Dual LGA 2011

Chipset
North Bridge	Intel C602

Memory Supported
Memory Slots	16 x 240Pin
Max Memory Supported	Support up to 512GB DDR3 R/LR DIMM ; 128GB ECC/non-ECC unbuffered UDIMM
Memory Type Supported	DDR3 1600/1333/1066
Channel Supported	Quad Channel
ECC Supported	Yes
Registered	Yes

Storage Supported
Serial ATA	8 x SATA 300 + 2 SATA 600
SAS	LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)

Graphics
GPU/VPU	Aspeed AST2300
Video Memory	16MB

Expansion Slots
PCI Express	2 PCIe 3.0x16

Communications
First LAN	Intel X540
Max. LAN Speed	100/1000Mbps/10 Gigabit

Expansion Bays
Hot-Swap Bays	12 x 3.5", 6 x 2.5"

Panel Ports
COM	1
VGA	1
Rear USB	4
RJ45	2 + 1 (IPMI) Lan port (RJ45)

Power Supply
Max. Power	1+1 Redundant 650W,Gold

Features
Features	*E5-1600 supports single socket Fan: 80 x 38 mm PWM Hot-Swap Fan x4 MB Form Factor: SSI EEB 12" x 13" IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN Support OS: Microsoft - Windows 2003 32/64 (IDE) - Windows 2003 R2 32/64 (IDE/AHCI) - Windows 2008 32/64 - Windows 2008 R2 - Windows 2012 Linux - Redhat Enterprise Linux Server 5.5 32/64 (AHCI) - Redhat Enterprise Linux Server 6.0 32/64 (AHCI) - Redhat Enterprise Linux Server 6.4 32/64 - CentOS 5.5 32/64 (AHCI) - CentOS 6.0 32/64 (AHCI) - SUSE 10.3 32/64 (AHCI) - SUSE 11.1 32/64 (AHCI) VMware - VMware ESXi 5.1

Dimensions & Weight
Dimensions	660 x 430 x 88cm( 26" x 16.9" x3.5")
Weight	17Kg
