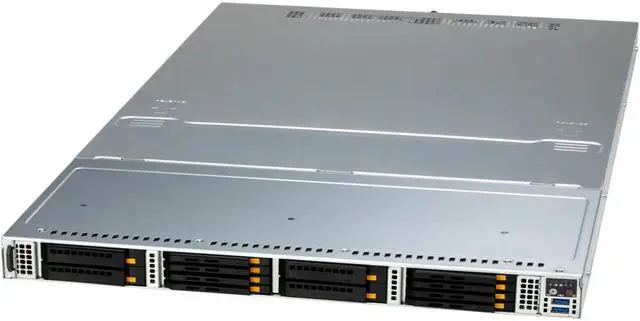

Supermicro SSG-121E-NE3X12R 1U front-loading all-flash storage server with 8 E3.S NVMe drives and 4 E3.S 2T CXL bays
- Dual Socket E (LGA-4677) 5th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-4800 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 8x hot-swap E3.S (1T) NVMe drive bays, 4x E3.S(2T) CXL bays
- Redundant Titanium 1600W Power Supplies
+
+
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2026
- Return for replacement until: January 31, 2026
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2025 and December 31, 2025 you will have until January 31, 2026 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
The Supermicro SSG-121E-NE3X12R is a 1U storage server barebones system with eight hot-swap E3.S NVMe bays and four E3.S 2T CXL bays, suited to data centers building high-throughput software-defined storage or NVMe-over-Fabrics platforms.
Recommended For
- Data-center teams building software-defined storage or NVMe-over-Fabrics nodes that need front-accessible E3.S NVMe drives in a 1U server.
- Infrastructure teams running memory-heavy databases or in-memory computing workloads that can use the server’s four E3.S 2T CXL Type 3 bays for memory expansion.
- HPC and data-intensive computing operators who need dual-socket Xeon processing alongside hot-swap E3.S NVMe storage in a rack-scale system.
- Private-cloud or hybrid-cloud teams deploying Red Hat Enterprise Linux or OpenShift on a certified Supermicro server platform.
Real-World Use Scenarios
- In a software-defined storage cluster, use the server as a dense NVMe storage node for frequently accessed data; the storage software and network configuration determine how much of the local flash capacity other systems can use.
- For a database handling frequent transactions, place the database files on compatible E3.S NVMe SSDs to support fast reads and writes; actual throughput and latency depend on the selected drives and database configuration.
- In a private or hybrid cloud, configure it as a flash-storage resource for virtual-machine or cloud workloads that need quick access to data; the storage platform and network setup determine how it integrates with the rest of the environment.
- For data-intensive HPC jobs, use the NVMe drives as fast local storage for active datasets and job output, such as simulation checkpoints; the benefit depends on the workload and the storage software.
- As an NVMe-over-Fabrics storage target, connect the server to compute hosts over a suitable high-speed network so they can access its NVMe storage remotely; this requires compatible networking hardware and NVMe-oF software.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | 1U storage-server deployments using E3.S NVMe drives and E3.S 2T CXL bays |
