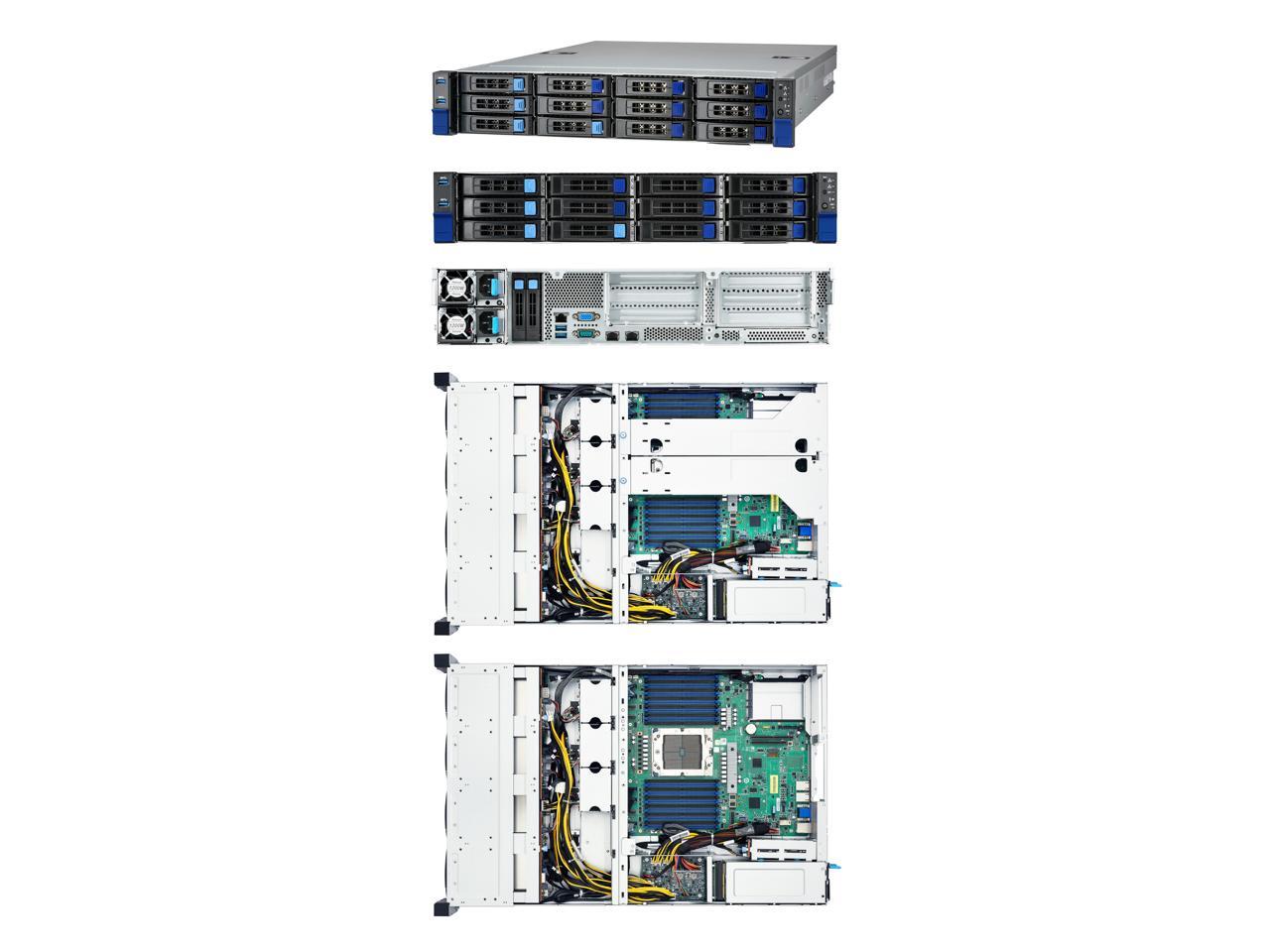

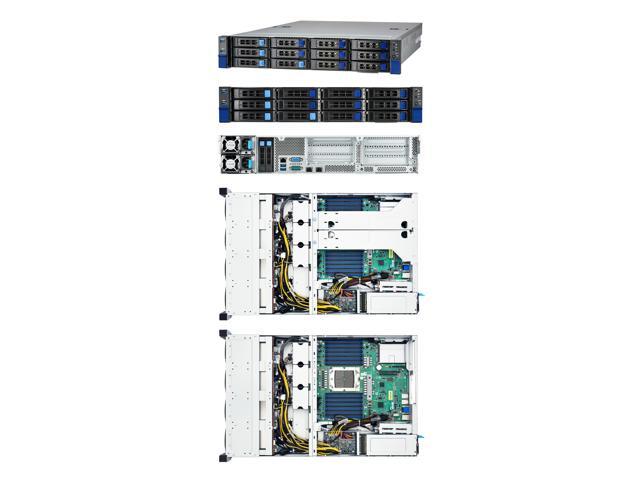

• 4th Generation AMD “Genoa” EPYC server motherboard in Tyan’s next-generation 2U server chassis. Tool-less drive trays, tool-less rail kit, quick-lock latches. Support for PCIe Gen 5.0, DDR5-4800, and 96 core processors with a single NUMA domain.
• Dimension: H87.6mm x W440mm x D700mm (27.5”)
• AMD “Genoa ” EPYC 9004 Processor /w TDP up to 360W
• Memory
• (24) DDR5 DIMM slots
• Supporting up to 3,072GB RDIMM/LRDIMM/NVDIMM DDR5-4800
• Maximum memory speed subject to AMD memory controller limitations,
• PCIe Expansion Slots
• (2) FH/HL PCIe Gen 5. X16,+ 1x FH/HL PCIe 5 x 8
• Network
• (1) PCIe Gen 5 x OCP 3.0
• (2) 10GBase-T Ethernet ports
• (1) 1GBase-T Dedicated IPMI port (Realtek RTL8211E-VB-CG)
• Storage
• (12) Hot-swap tool-less with 4 optional NVMe U.2
• (2) Rear hot-swap tool-less 2.5” NVMe/SATA 6G drive bays
• Up to (4) of the front drive bays support both SATA & U.2 NVMe (depending on SKU)
• (2) 22110/2280 (by PCIe Gen.4 interface)
• AST2600 BMC with iKVM, IPMI, and Redfis
