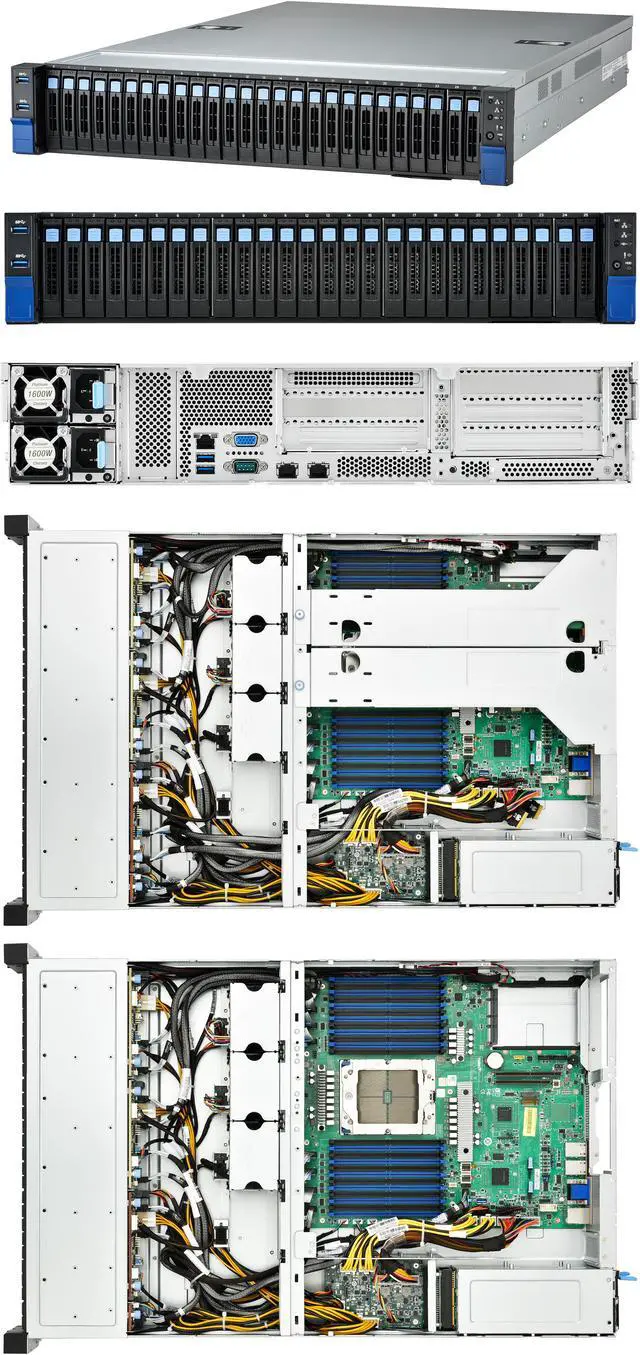

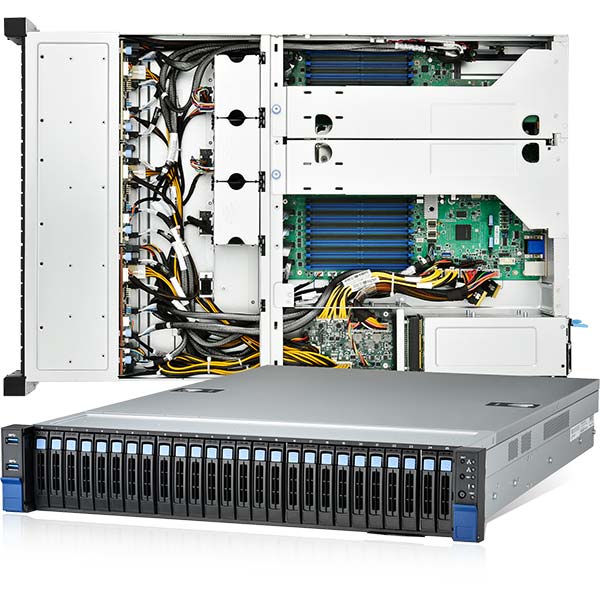

Transport SX TS70A-B8056
2U1S Storage Server
2U1S High IOPs Storage Server, 26 NVMe U.2
B8056T70AE26HR-2T
Single AMD SP5 socket
Support EPYC 9004/97x4/9004 with 3D V-Cache Processors
(24) DDR5 DIMM slots
Support DDR5-4800 RDIMM / 3DS RDIMM up to 3,072GB
PCIe Expansion Slots
(1) full-height / half-lenght PCIe 5.0 x8 slot
(1) PCIe 5.0 x16 OCP v3.0 mezz slot
Storage
(26) hot-swap, tool-less NVMe U.2 trays
(2) NVMe M.2 22110/2280 slots
Network
(2) 10GBase-T LAN + (1) 1000Base-T dedicate IPMI ports
Graphic Chipset
AST2600 BMC with IPMI 2.0 & Redfish support
Power Supply
(1+1) 1,600W hot-swap CRPS, 80+ Platinum

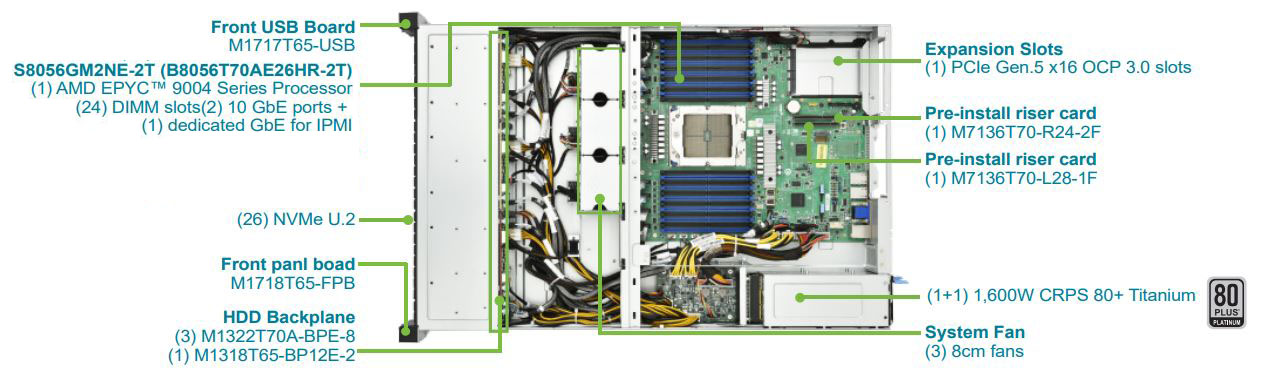

Top View
NEW 4TH GEN AMD EPYC™ PROCESSORS POWERED PLATFORMS
Cutting-Edge Cloud Computing and High-Performance Processors for Technical Computing
The new 4th Gen AMD EPYC™ processors are built upon the AMD EPYC™ 9004 CPU architectures. They include "4th Gen AMD EPYC 97x4 processors " designed specifically for cloud-native computing, and "4th Gen AMD EPYC with 3D V-Cache technology processors " featuring AMD 3D V-Cache™ technology optimized for outstanding performance in technical computing.
Tyan's server platforms powered by the 4th Gen AMD EPYC 97x4 processor are designed to excel in cloud native environments, it integrates up to 128 Zen 4C cores and an impressive up to 256 MB of L3 Cache. With exceptional performance, density, energy efficiency, and seamless compatibility, these platforms set the stage for no-compromise computing, meeting the evolving demands of dynamic cloud-native applications.
For demanding technical compute workloads, Tyan's 4th Gen AMD EPYC with 3D V-Cache technology processors server platforms leverage AMD 3D V-Cache™ technology, with up to 96 cores, over 1GB L3 cache, and a 400W TDP, making it the ultimate choice for demanding technical compute workloads. With outstanding processing power and advanced cache technology, these platforms deliver exceptional performance for intensive computational tasks.
Tyan's commitment to excellence is exemplified in these server platforms, meticulously engineered to leverage the immense capabilities of the new 4th Gen AMD EPYC™ processors. With Tyan's cutting-edge designs and AMD's groundbreaking technologies, enterprises can unlock new frontiers in cloud native computing and high-performance technical computing, achieving exceptional performance, scalability, and efficiency.
Experience the future of server computing with Tyan's new 4th Gen AMD EPYC™ processor-based platforms, where power, innovation, and reliability converge to redefine the boundaries of modern data centers.
Applications for 4th Gen AMD EPYC 97x4 CPU Platforms:
- Data Storage and Backup
- SaaS, IaaS, PaaS
- Big Data Analytics
- Content Delivery and Streaming
- IoT
- Artificial Intelligence (AI) and Machine Learning (ML)
Applications for 4th Gen AMD EPYC with 3D V-Cache technology CPU Platforms:
- Scientific Research
- Engineering and Manufacturing
- Weather Forecasting and Climate Modeling
- Oil and Gas Exploration
- Financial Modeling and Risk Analysis
- Genomics and Bioinformatics
- Academic Research
- Aerospace and Defense
- Energy Exploration and Optimization
- Data Analytics and Machine Learning
