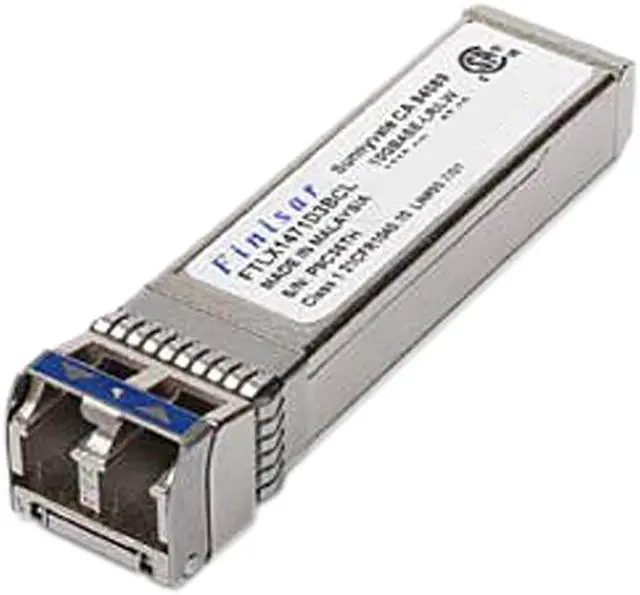

Finisar's FTLX1471D3BCV 1G/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over singlemode fiber. They are compliant with SFF-8431, IEEE 802.3-2005 10GBASE-LR/LW and 1000BASE-LX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. The FTLX1471D3BCV is a limiting module, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the hostboard EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038. Application/Usage: Optical Network Application/Usage: Data Networking Product Type: SFP+ Interfaces/Ports Details: 1 x 10GBase-X Product Type: SFP+ Manufacturer Part Number: FTLX1471D3BCV Interfaces/Ports Details: 1 x LC Duplex 10GBase-X Network Network Technology: 1000Base-LX Network Technology: 10GBase-LR Form Factor: Hot-pluggable Manufacturer: Finisar Corporation Product Model: FTLX1471D3BCV Product Name: FTLX1471D3BCV SFP+ Module Network Technology: 1000Base-LX Network Technology: 10GBase-LR Brand Name: Finisar Brand Name: Finisar Maximum Data Transfer Rate: 10.3 Ethernet Technology: Gigabit Ethernet Ethernet Technology: 10 Gigabit Ethernet Media Type Supported: Optical Fiber Environmentally Friendly: Yes Environmental Certification: RoHS-6 Ethernet Technology: Gigabit Ethernet Ethernet Technology: 10 Gigabit Ethernet Media Type Supported: Optical Fiber Fiber Mode Supported: Single-mode
Finisar's FTLX1471D3BCV 1G/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over singlemode fiber. They are compliant with SFF-8431, IEEE 802.3-2005 10GBASE-LR/LW and 1000BASE-LX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. The FTLX1471D3BCV is a limiting module?, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the hostboard EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038.
Learn more about the Detailed Specifications
Model
Brand
Finisar
Details
Type
SFP+
Specifications
1 x 10GBase-X
Features
Features
1 x LC Duplex 10GBase-X Network
Additional Information
First Listed on Newegg
April 10, 2017
