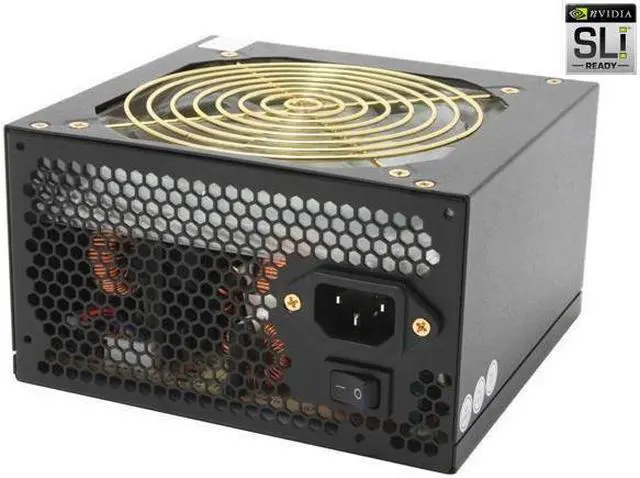

Thermaltake W0057RU-01 PurePower TWV 500 W ATX 12V Ver.2.0 SLI Certified CrossFire Ready Modular Active PFC Power Supply

ATX 12V Ver.2.0
Modular
115 / 230 V 50/60 Hz
+3.3V@24A, +5V@30A, +12V1@12A, +12V2@21A,+12V3@13A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (19)

Any questions? Our AI beta will help you find out quickly.

Try me now

Details
Type	ATX 12V Ver.2.0
Maximum Power	500 W

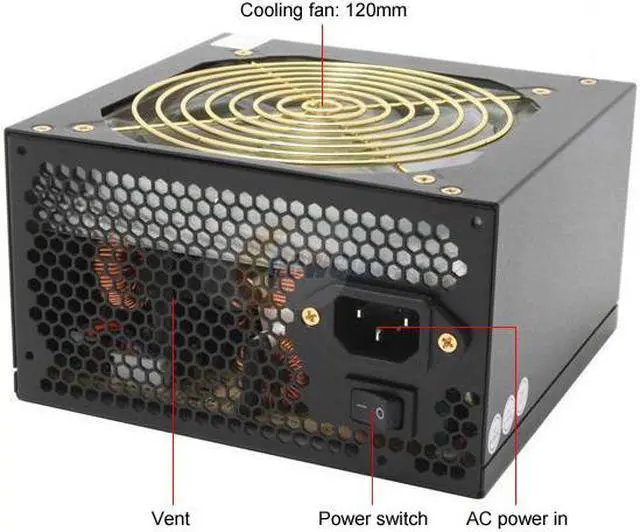

Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	3
PCI-Express Connector	2 x 6-Pin
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	Typical 80%
Over Voltage Protection	+5V trip point < +7.0V, +3.3V trip point < +4.5V, +12V trip point < +16.0V
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	10A
Output	+3.3V@24A, +5V@30A, +12V1@12A, +12V2@21A,+12V3@13A, [email protected], [email protected]
Approvals	CB, CE, FCC, UL, CUL, TUV

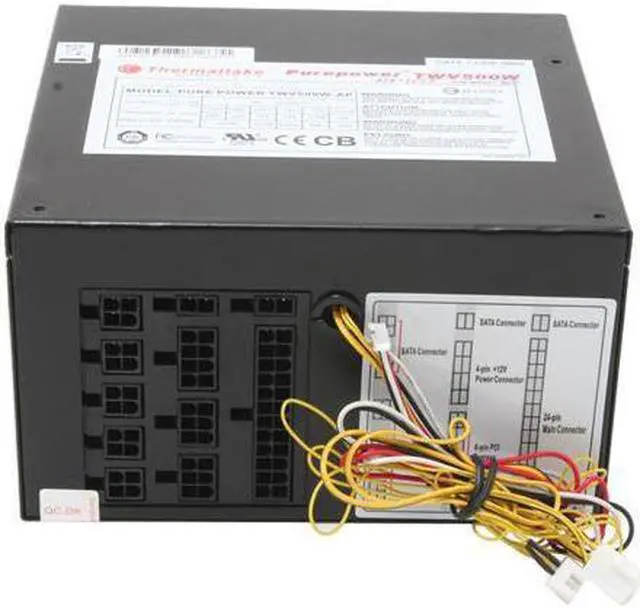

Connectors	1 x Main connector (20+4Pin) 1 x 12V(4+4Pin) 8 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E

Features

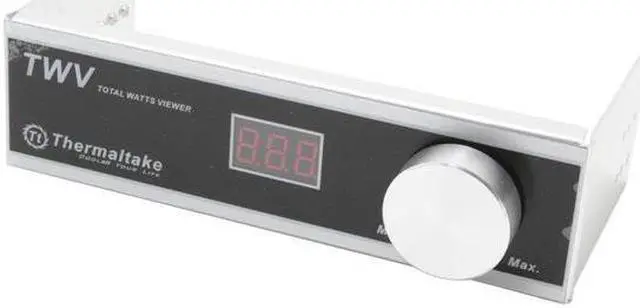

Features	Modularized Cable Management to eliminate clutter and improve airflow inside the case Separate +12V rails provide sufficient 36A for PC system Supports SLI and Cross-Fire technology Active PFC Function (PF>0.99) 5.25” Total Watt Viewer and Fan Speed Controller to read power consumption and control fan speed Protections: Over voltage, Short-Circuit, Over-current, Overload, and Over-temperature

Additional Information
First Listed on Newegg	March 06, 2006
