Question 1

Will this switch supports wireless keyboard and mouse ?

Accepted Answer

Absolutely.  My Microsoft wireless mouse works great. I just have the USB dingle plugged into it. I've been using this kvm switch a few years now and love it.  Yes it's a little expensive but if you want that dvi high resolution this is one reliable to do it. I use my Dell UltraSharp U2713HM monitor running at 2560x1440.

Question 2

How long are the cables coming off of the switch?

Accepted Answer

about 4 feet.  This is approximate because I didn't want to take my setup apart to measure.  I also have a Single-Link 4port switch which has 6 foot cables.  The Dual-Link KVM is shorter by about a foot on my desk, and a foot under my desk, so I under estimated at 4 feet.  2 feet would work for me though, since the switch works on another cable the puts a button on my desk with length to spare.  See how the input is on the opposite side, so the box makes a Y cable - the button cable comes off the side.  My computers are side by side under my desk.  I think side by side is the best for this switch.  The GCS1104, which I also have, has 6 foot cables, and I've put computers on each side of my monitor.  That doesn't work with the GCS982U.  My monitor cable is long, so I have room to spare.

Question 3

I HAVE AN IOGEAR WITH VGA PORTS CONNECTED TO TWO DESKTOPS AND ONE MONITOR. ON THE SAME DESKTOPS I HAVE DVI-D DUAL-LINKS PORTS ONE ON EACH DESKTOP. I WOULD LIKE TO USE THE DVI-D PORTS AND USE A 24 INCH MONITOR TO EXTEND BOTH DESKTOPS WHEN I SWITCH FROM ONE DESKTOP TO ANOTHER. DO I USE THE IOGEAR GCS982U FOR THIS PURPOES OR IS THERE ANOTHER ALTERNATIVE?

Accepted Answer

Hi David:

I think in your case, GCS982U was made exact for you, as long as your monitor has a DVI port (dual link or not) too. Plus, compared to the old IOGEAR VGA switch (I have a GCS62), this one has a audio switch so you can share one speaker with two computers. Another good thing I like the best is that I can now use one Logitech wireless keyboard (K270 in my case) and one Logitech wireless mouse (M705 in my case) with ONE (not two) unifying receiver and working perfectly.

Good luck !

Question 4

Will this switch support 1920 X 1080 144Hz refresh rate?

Accepted Answer

I'm not sure about 144Hz because I don't have a monitor or video card to support it.  I do know this does 1920 x 1200 without a problem.

Question 5

Is this product compatible with Apple computers?

Accepted Answer

OS is inconsequential for a KVM.  It's like asking if a particular tire is compatible with a diesel vs. a gasoline powered engine in a car. The KVM is a piece of hardware not software. So the short answer is yes. The more important question is "is your video card connector compatible with the KVM (VGA vs. DVI)" and "does my keyboard and mouse use the connectors received by the KVM switch?" If you have DVI out you'd need an adapter to fit this VGA port. If you have ps2 keyboard/mouse you'd need an adapter for each to fit these USB. Things like that.

Type	DVI, USB
PC Connectors	Keyboard & Mouse: 4 x USB Type A Male (Purple for Keyboard and Black for Mouse) Monitor: 2 x Single Link DVI-D Male Audio: 2 x Mini Stereo Jack Male (Green) Microphone: 2 x Mini Stereo Jack Male (Pink)
Console Connectors	Keyboard: 1 x USB Type A Female Mouse: 1 x USB Type A Female Monitor: 1 x Single Link DVI-D Female Audio: 1 x Mini Stereo Jack Female (Green) Microphone: 1 x Mini Stereo Jack Female (Pink)
Computer Connections	2 Ports
Monitor Connections	1 Port
Video Resolution	2560 x 1600
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	Default 5 Seconds (3, 5, 10 or 20 sec.)
LED Indicators	2 x Green

Temperature	Operation Temperature: 0 - 50 degree C Storage Temperature: -20 - 60 degree C
Humidity	0 - 80% RH; Non-condensing

Audio Features	with Audio
USB Features	USB port only
Features	One dual-link DVI console controls two dual-link DVI / USB computers Dual-link DVI resolution up to 2560x1600 @ 60Hz Port switching via remote switch button, mouse or hotkeys Hotkeys allows independent KVM and audio switching between computers 2.1 stereo sound and microphone support USB 2.0 Peripheral Sharing via mouse port - Connect a powered USB hub to expand your USB connectivity* IOGEAR's DynaSync** technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers Power-On Detection – If one of the computers is powered off, it will automatically switch to the next powered-on computer Re-programmable Hotkey activation for keyboards without a Scroll Lock key Mouse emulation can be disabled to support mice with special keys Mac and Sun keyboard support Firmware upgradeable Plug-n-Play; No software required Mouse emulation must be disabled for this feature to function correctly *IOGEAR's DynaSync provides the EDID support for Windows 7

Dimensions	4.75" x 3.75" x 1.00"
Weight	1.20 lbs.

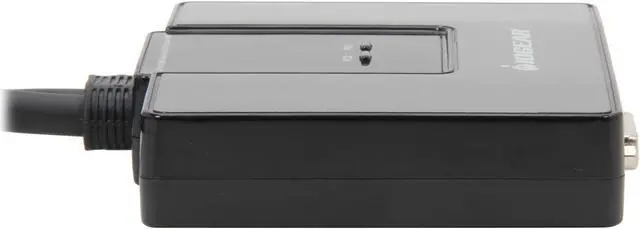

IOGEAR GCS982U 2-Port Dual-Link DVI Cable KVM with Audio

Learn more about the IOGEAR GCS982U

Customer Reviews of the IOGEAR GCS982U

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	IOGEAR
Model	GCS982U
