Question 1

what size is it 3.5 or 5.25?

Accepted Answer

I find with these drive there are always some cable connections that cannot be connected in computer unless you have that specific configuration. Over all I find the mayor part of functionality to be good.

Question 2

I am not going to put this internal, I need to know the actual dimensions. What are the units dimensions?

Accepted Answer

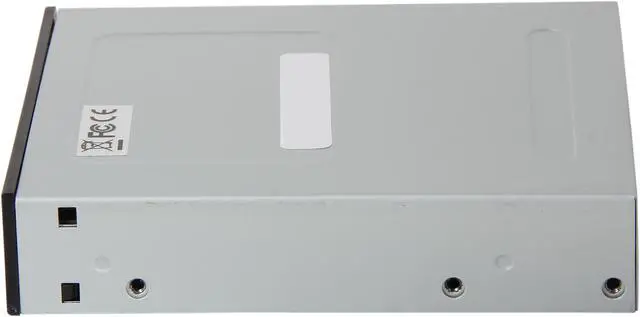

I have already installed the card reader in my PC case. So the measurements were taken from the installed unit. I measure the height as 1 inch, the width as 4 inches and the depth as 3 7/16 inches (just slightly under 3.5 inches).

Question 3

the only place on the motherboard, as far as I can see, is a SATA port. Will that work with this unit?

Accepted Answer

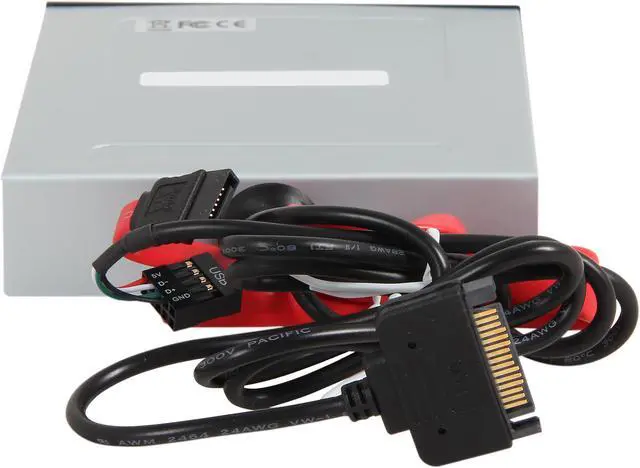

This unit requires the follow:
-  The SATA cable is hardwired to the unit with a plug on the free end to connect to an unused SATA connector on the motherboard.
- an Intel USB connector on the motherboard. The cable to make this connection is provided.
- the power connection for this device is a SATA power connector. I needed a IDE to SATA power adapter since my power supply did not have an available SATA power connection but did have plenty of unused IDE power connectors.

Question 4

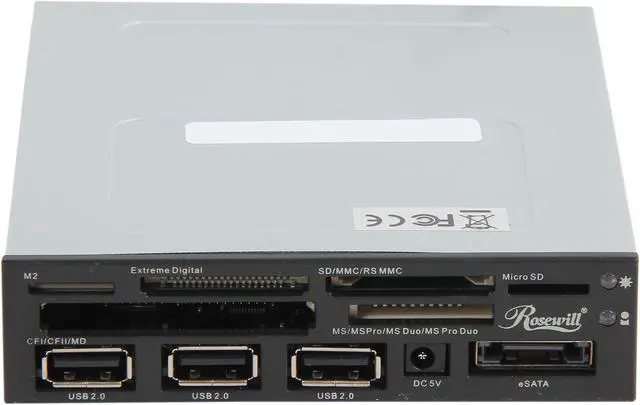

Is the 5v power input in the front the only way the unit recieves power or is there internal power via SATA as well?

Accepted Answer

This device gets it's power via SATA only.  The 5v output is for external devices that need 5 volts.  Other thoughts:  this device is pretty awesome.  Good luck.

Question 5

are the cables long enough for a full tower case?

Accepted Answer

I have the cooler master HAF full size case with a Gigabyte Z77 board. This reader works wonderful. I had no issue with the cables at all. Buy it!

Question 6

What connections are needed to install this?   I don't  see it mentioned and I don't recognize one of the connectors in the picture.

Accepted Answer

Usb n audio ports, the instrucutions are fairly clear if you have ever been inside a computer case you will recognize each connector, have your mainboard book handy..

Brand	Rosewill
Model	RDCR-13001

Type	75-in-1
Interface	3 ports USB 2.0 Hub eSATA port
Compatibility	CF Slot: CF I / CF I Pro / CF I Pro II / CF I Elite Pro / CF I ultra II / Shoot & Store CF / CF II / CF II Magicstor / CF II Ultimate / CF-Digital Film / CF 3.0 / CF 4.0 / EXTREME III CF / EXTREME CF / ULTRA II CF / HS CF / XS-XS CF / CF ELITE PRO / CF PRO / CF PRO II / IBM MD / HITACHI MD / MAGIC STOR MD SD/MMC Slot: SD / EXTREME SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD PLUS / ULTRA-X SD / ULTRA SPEED SD / SD PRO / SDHC / SD ELITE PRO / HS SD / MMC / MMC 4.0 / MMC 4.2 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile / MMC Plus / MMC Micro / DV-MMC / mini SD / HS mini SD MS Slot: MS / MS PRO / MS DUO / MS PRO DUO / MS MG PRO / MS PRO MG HIGH SPEED / MS PRO MG EXTREME III / MS MG / MS MG DUO / MS MG PRO DUO / EXTREME MS PRO / MS SELECT / EXTREME III MS PRO / ULTRA II MS PRO / HS MS PRO DUO / MS ROM / MS PRO Magic Gate / MS DUO Magic Gate / MS Pro HG Duo MICRO SD Slot: MICRO SD M2 Slot: MS MICRO (M2) Extreme Digital Slot: Extreme Digital Media Cards / Extreme Digital M type / Extreme Digital H type Requires adapter: HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile / MMC Micro / mini SD / HS mini SD
Support - Compact Flash	Yes
Support - Memory Stick	Yes
Support - MMC	Yes
Support - SD	Yes

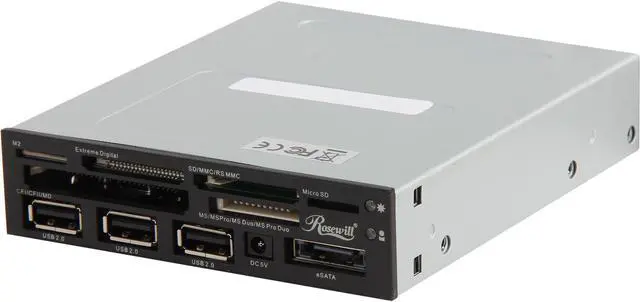

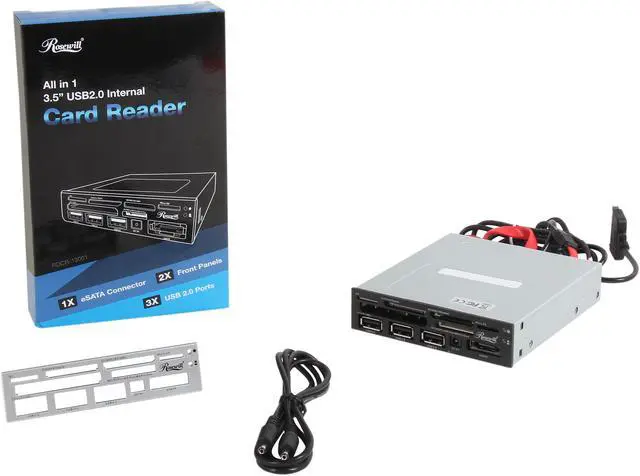

Rosewill RDCR-13001 USB2.0 All in One Internal Card Reader w/ 3 ports USB2.0 Hub / eSATA port / Extra silver fascia panel / SATA Power

Learn more about the Rosewill RDCR-13001

Customer Reviews of the Rosewill RDCR-13001

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16820223122
