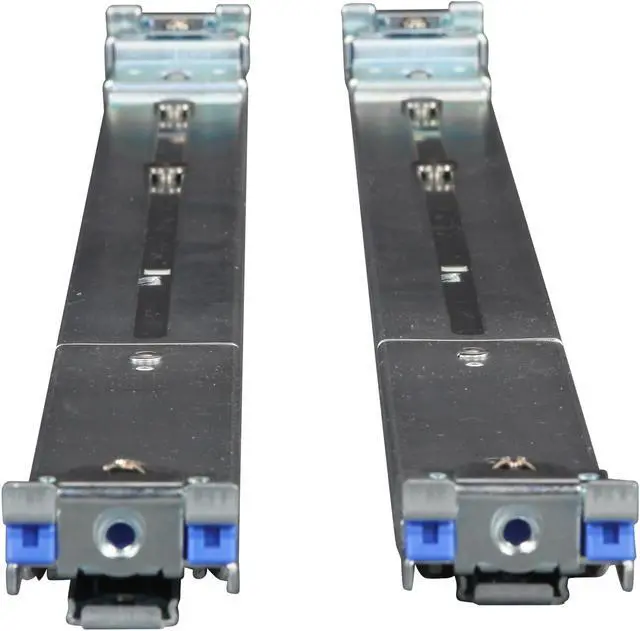

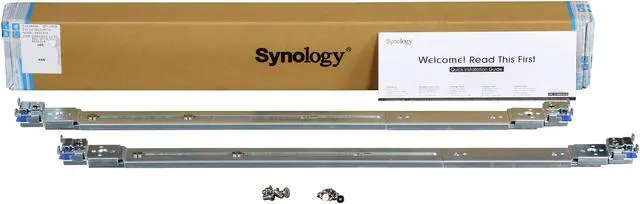

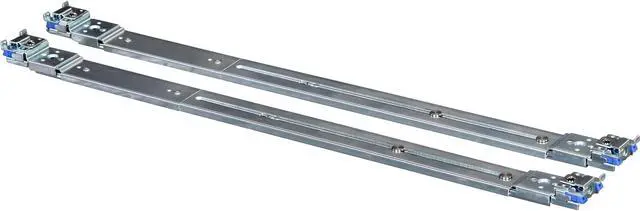

Synology RKS1314 Rail Kit

Synology Rail Kit RKS1314/RKM114

For installing your Synology RackStation in a rack

Synology Rail Kits are designed for installing your RackStation on the rack. Synology RKS1314 comes with sliding rails, making it easy to slide the RackStation in and out for easy maintenance, while Synology RKM114 secures your RackStation on a rack.

Synology Rail Kits are backed with Synology's 1-year limited warranty.

Rail Kit offers the following choices:

• Synology RKS1314 - Rail Kit Sliding
• Synology RKM114 - Rail Kit Mounted

Applied models:

Synology RKS1314:

• 16-series: RS18016xs+, RS2416(RP)+, RX1216sas
• 15-series:RC18015xs+, RXD1215sas, RS815(RP)+, RS815, RX415
• 14-series:RS3614xs+, RS3614(RP)xs, RS2414(RP)+, RS814(RP)+, RS814, RX1214(RP)
• 13-series:RS10613xs+, RS3413xs+, RX1213sas
• 12-series:RS3412(RP)xs, RS2212(RP)+, RS812(RP)+, RS812
• 11-series:RS3411(RP)xs, RS2211(RP)+, RS411, RX1211(RP)
• 10-series:RS810(RP)+, RX410
• 9-series :RS409(RP)+, RS409, RX4

Synology RKM114:

• 15-series:RC18015xs+, RS815(RP)+, RS815, RX415
• 14-series:RS814(RP)+, RS814
• 12-series:RS812(RP)+, RS812
• 11-series:RS411
• 10-series:RS810(RP)+, RX410
• 9-series :RS409(RP)+, RS409, RX4

Specifications

Technical specifications

Physical specifications for Synology RKS1314

A. Mount post width must be equal to or greater than 451mm

B. Panel width must be equal to or greater than 480mm

C. Cabinet depth: 680mm~910mm

D. Rack mounting holes must be square and at least 9.5mm x 9.5mm

Physical specifications for Synology RKM114

A. Mount post width must be equal to or greater than 451mm

B. Panel width must be equal to or greater than 480mm

C. Cabinet depth: 570mm~720 mm (for 13-series and earlier 1U models)

Cabinet depth: 570mm~810mm (for 14-series and future 1U models)
