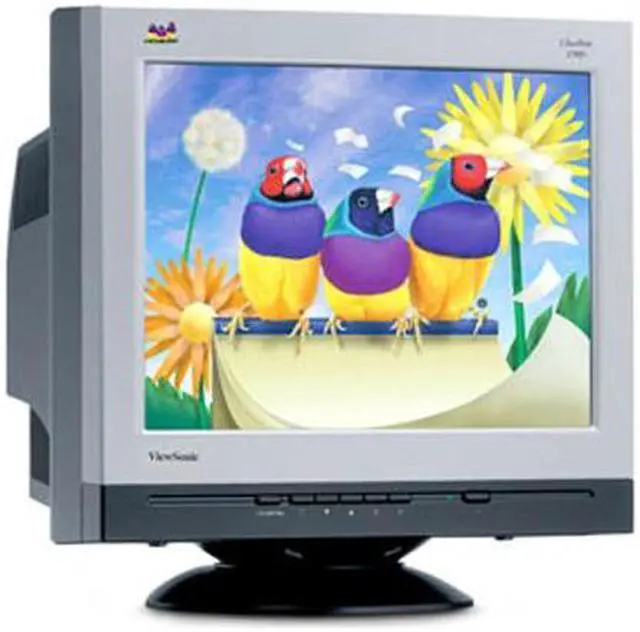

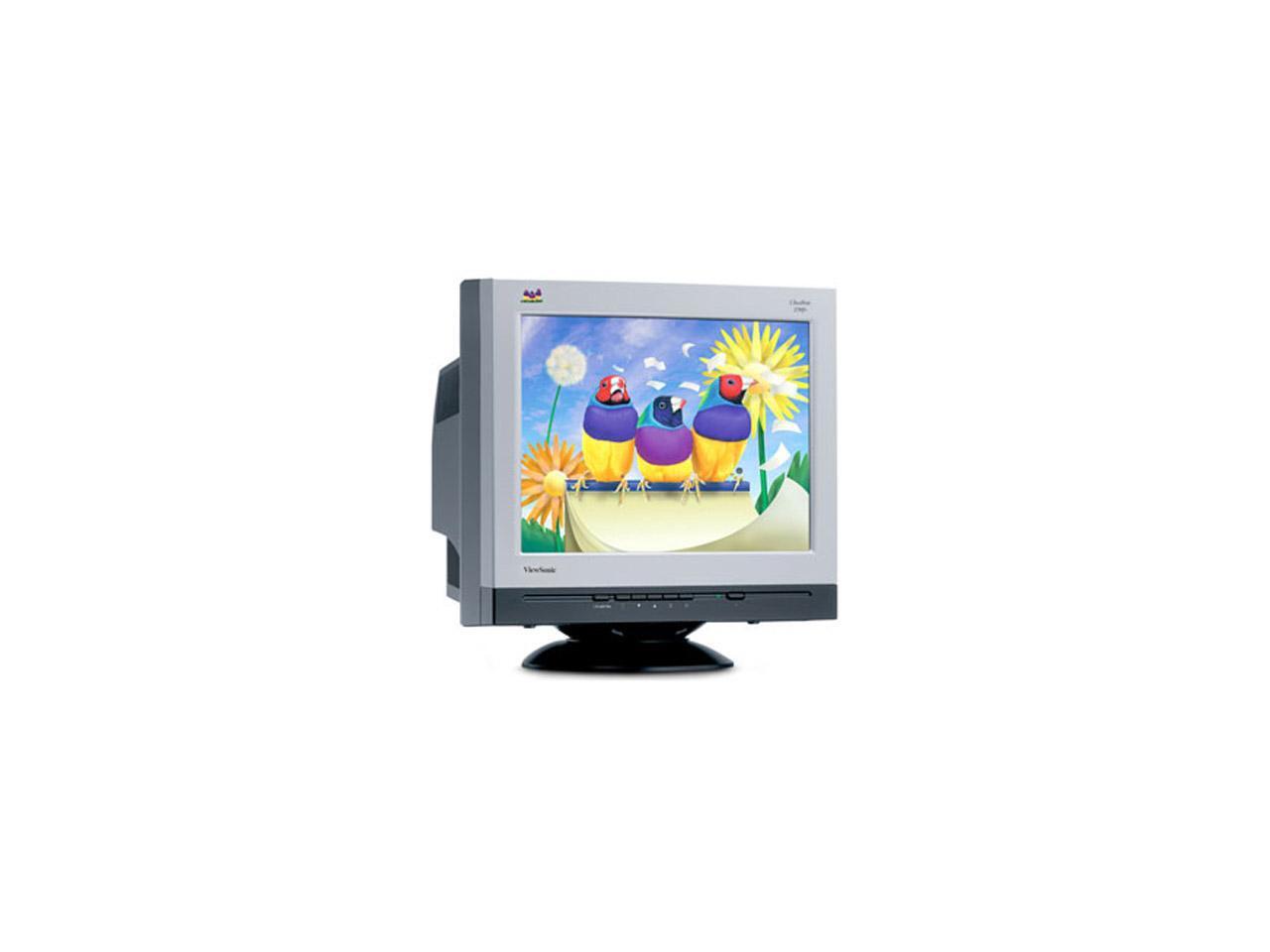

ViewSonic E90f+SB Silver-Black 19" CRT Monitor 0.21mm horizontal, 0.14mm vertical, 0.25mm diagonal Dot Pitch D-Sub

(38) Write a Review
  • 0.21mm horizontal, 0.14mm vertical, 0.25mm diagonal Dot Pitch
  • D-Sub
Specs
Reviews (38)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ViewSonic E90f+SB

Model
Brand ViewSonic
Model E90f+SB
Cabinet Color Silver-Black
Display
Panel Pigment coated P22
Screen Size 19"
Viewable Size 18"
Maximum Resolution 1792 x 1344 @ 61Hz
Resolution 1280 x 1024 @ 80Hz
Dot Pitch 0.21mm horizontal, 0.14mm vertical, 0.25mm diagonal
Bandwidth 202 MHz(typ)
Horizontal Refresh Rate 30~86kHz
Vertical Refresh Rate 50~180Hz
Connectivity
Connectors D-Sub
Power
Complies with Meets MPR II and ENERGY STAR standards
Power Supply AC 90-264V, 50/60Hz (+/-2)
Power Consumption 100W (typ), (auto switch)
Convenience
User Controls Basic Power, on/off, key-1, down, up, key-2, one-touch auto-adjust
On View OnView controls including ViewMatch feature Contrast, brightness, H/V size, H/V position, pincushion, pin balance, trapezoid, parallelogram, tilt, degauss, H/V moiré reduction, ViewMeter, zoom, language, ViewMatch color (9300, 6500, 5000, user color), OSD position, memory, recall
Regulatory Approvals UL, cUL, DHHS, FCC-B, ICES-003, CB, MPR II, ENERGY STAR®, TUV/GS, TUV/ERGO, SASO, PCBC, BSMI, PSB, TUV/S
Built-in Speakers No
Features UltraBrite technology; anti-reflection, anti-glare, anti-static screen coating
Dimensions & Weight
Dimensions 17.5" x 18.0" x 18.0"
Weight 42.2 lbs
Environmental
Temperature Range Operating 32-104° F (0-40° C)
Humidity Range Operating 5-95% (non-condensing)
Additional Information
First Listed on Newegg December 03, 2002
