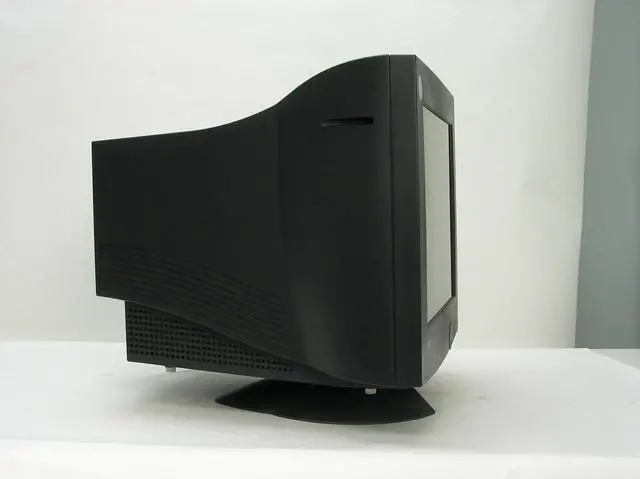

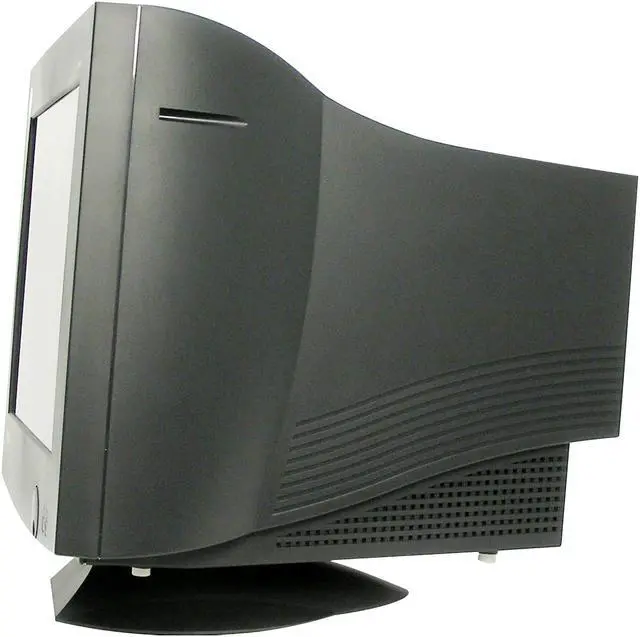

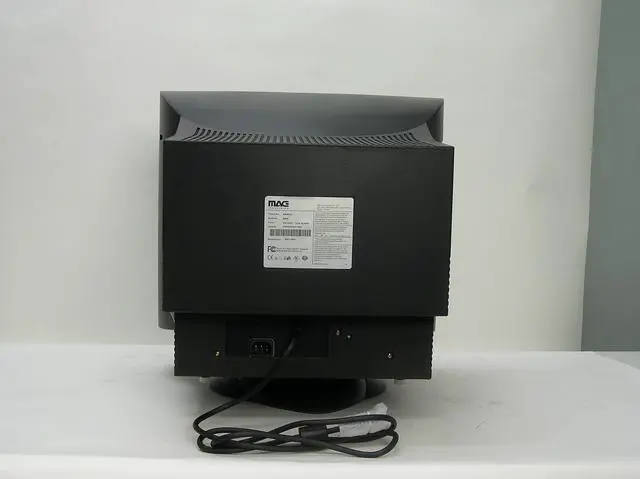

MAG 996PF2B Black 19" CRT Monitor 0.25mm Dot Pitch 15pin mini D-sub

(3) Write a Review
  • 0.25mm Dot Pitch
  • 15pin mini D-sub
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MAG INNOVISION 996PF2B

Model
Brand MAG
Model 996PF2B
Cabinet Color Black
Display
Panel SamSung MDT tube Pure
Screen Size 19"
Viewable Size 18"
Maximum Resolution 1600 x 1200 @ 76 Hz
Dot Pitch 0.25mm
Bandwidth 203 MHz
Horizontal Refresh Rate 30.0-96.0kHz
Vertical Refresh Rate 50-160Hz
Connectivity
Input Video Compatibility RGB Analog ( 0.7 Vp-p, 75ohms )
Connectors 15pin mini D-sub
Power
Complies with VESA DPMS
Power Supply 100-240 VAC, 50-60Hz (Auto switch)
Convenience
User Controls Contrast, Brightness, H / V Size, H / V Position, Pincushion, Trapezoid, Rotation, Parallelogram, Pin Balance, Advanced Select( Moire[ H / V ],
Corner[ Top / Bottom ] ), Degaussing, Reset, Color Manager, Language Manager, OSD Manager,Exit
Regulatory Approvals UL, CUL, TUV/GS, DHHS, CE, FCC-B, BSMI, CCC, MPRII, CB, TCO99
Built-in Speakers No
Features Flat square tube, 90 degree deflection, Anti-glare, Anti-static, Anti-reflection Medium short persistence
Dimensions & Weight
Dimensions (H x W x D) 18.4" x 18.4" x 18.1"
Weight 55.1 lbs
Environmental
Temperature Range Operating 0°C to 40°C
Humidity Range Operating 10% to 90%
Additional Information
First Listed on Newegg July 23, 2004
