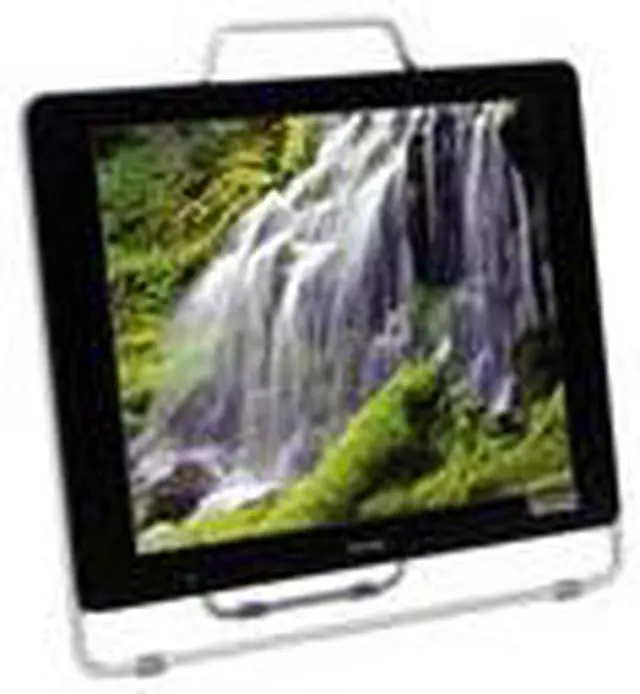

Shuttle 17" Active Matrix, TFT LCD SXGA LCD Monitor 8 ms D-Sub, DVI-D XP17AR-BK-V2
- 17"
- Active Matrix, TFT LCD SXGA
- 500:1
- 16.2 Million
- Tilt
- XP17 LCD Monitor VGA Cable DVI Cable Power Adapter Power Cable User Manual
Specs
Reviews (5)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Shuttle Computer XP17AR-BK-V2
| Brand | Shuttle |
|---|---|
| Model | XP17AR-BK-V2 |
| Cabinet Color | Black-Silver |
| Screen Size | 17" |
|---|---|
| Widescreen | No |
| Maximum Resolution | 1280 x 1024 |
| Resolution | 1280 x 1024 |
| Viewing Angle | 140° (H) / 140° (V) |
| Monitor Pixel Density | 0.264mm |
| Display Colors | 16.2 Million |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 500:1 |
| Response Time | 8 ms |
| Panel | Active Matrix, TFT LCD |
| Display Type | SXGA |
| Vertical Refresh Rate | 75Hz |
| Input Video Compatibility | Analog RGB, Digital |
|---|---|

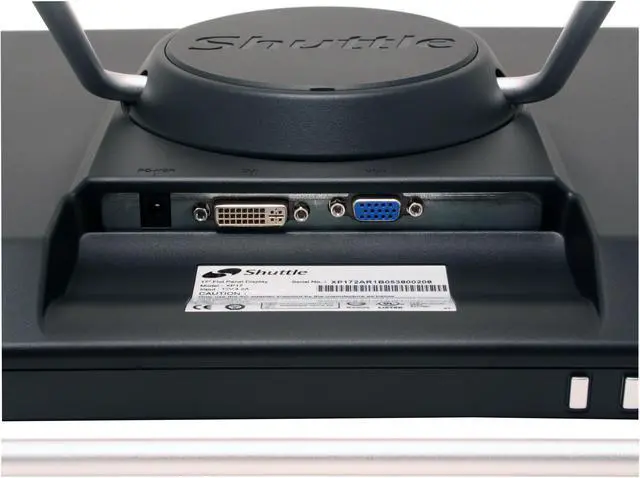

| Connectors | D-Sub, DVI-D |
| D-Sub | 1 |
| DVI | 1 |
| HDMI | No |
| Power Supply | 90-264 VAC, 50/60Hz |
|---|---|
| Power Consumption | 50W (max.) |
| User Controls | Basic: Power, menu, up, down, select, auto adjust On Screen Display (OSD): Auto image adjust, contrast, brightness, input select, color adjust [9300K, 6500K (default), RGB], information (mode, model number, frequency, resolution), image adjust (H. size, H. position, V. position, phase adjust, sharpness), language, OSD position. Languages: English, Chinese (simplified & traditional), Japanese, German, French, Italian, Spanish |
|---|---|
| Regulatory Approvals | CE, FCC, UL, 3C, PSE, TUV |
| Stand Adjustments | Tilt |
| Built-in TV Tuner | No |
| Built-in Speakers | No |
| Features | VESA Wall Mount: (100 mm x 100 mm) |
|---|
| Dimensions | 17.2" x 16.7" x 1.6" |
|---|---|
| Weight | 9.5 lbs. |
| Temperature Range | 0-50°C |
|---|---|
| Humidity Range | 10-90% non-condensing |

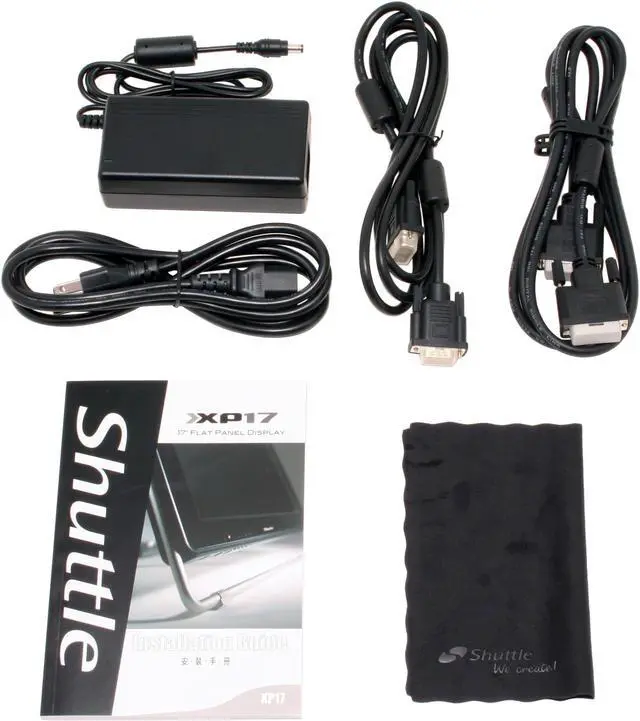

| Package Contents | XP17 LCD Monitor VGA Cable DVI Cable Power Adapter Power Cable User Manual |
|---|
| First Listed on Newegg | December 22, 2005 |
|---|
