Say good-bye to wires forever with XOHM's WiMax service. Plug in the XOHM modem and you get full broadband speeds without wires. Now you don't have to worry about setting up your computer near a phone or cable jack. And if you move anywhere within the XOHM coverage area, just take the modem with you and you're connected.
The modem comes with 2xRJ45 network ports to plug in multiple systems. A full set of indicators on the front let you know what's connected and how strong the signal is. There are 2 antennas built into the modem with 2 SMA connectors in case you need to add additional ones if you are on the outskirts of the coverage area.
Say good-bye to wires forever with XOHM's WiMax service. Plug in the XOHM modem and you get full broadband speeds without wires. Now you don't have to worry about setting up your computer near a phone or cable jack. And if you move anywhere within the XOHM coverage area, just take the modem with you and you're connected.
The modem comes with 2xRJ45 network ports to plug in multiple systems. A full set of indicators on the front let you know what's connected and how strong the signal is. There are 2 antennas built into the modem with 2 SMA connectors in case you need to add additional ones if you are on the outskirts of the coverage area.
Full Broadband SpeedConnect the XOHM Modem to your computer or Wi-Fi router and get full broadband speed that is equivalent to your basic DSL and cable internet service.
Portable DesignWeighing only 1.06 lbs, the compact XOHM Modem provides superior portability so you can bring the benefits of mobile broadband to anywhere within the XOHM coverage.

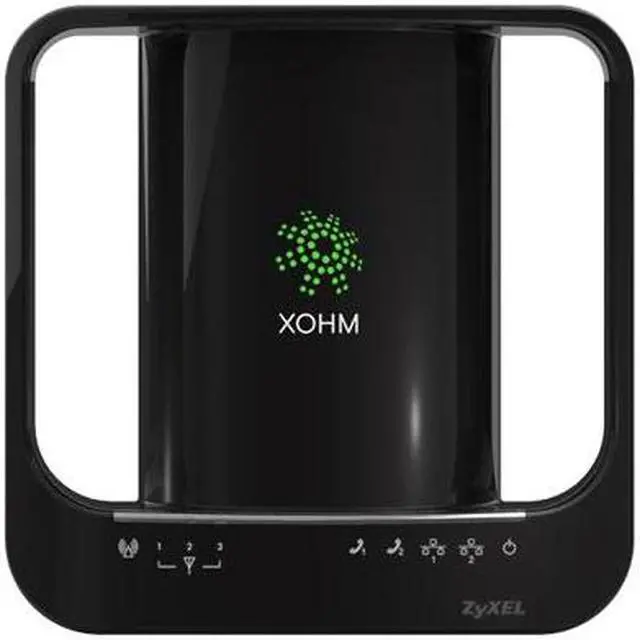

Learn more about the Xohm MAX-206M2
Model
Brand
Xohm
Model
MAX-206M2
Details
Specifications
Xohm Service Only available at Baltimore area right now
Size: 6.5" x 6.45" x 4.65"
Weight: 1.06 lbs.
WiMAX radio: 802.16e, QoS support
Ports: (2) Ethernet RJ45 ports, (2) RJ11 analog VoIP ATA ports (inactive, for future use)
Buttons: Reset button restores modem to factory default configuration when depressed for 15 seconds
Indicators (see LED table): Power, LAN 1 & 2, Phone 1 & 2, Signal Strength, WiMAX signal (connection and data status), 3 signal strength indicators
Power Supply: AC to DC Power Adapter, UL certified, operating voltage under 12 VDC
Antenna: 2 pieces of 5dBi dipole antenna integrated into modem, 27dBm output power
Connectors for Remote Antenna: 2 pieces SMA, female reverse connectors
OTA-DM: Supports Over-the-Air Software Download and Remote Management
Memory: 32 MB RAM
WiMAX Standard: IEEE 802.16e-2005
PRL (preferred roaming list): Supported
Authentication: EAP-TLS
Mobile IP support: Supported
Transmitter Normal Output Power: 23dBm TX Max Power: 27dBm Frequency Range: 2.5GHZ – 2.7GHZ
Receiver Frequency Range: 2.5GHZ – 2.7GHZ Modulation Method: QPSK, 16QAM, 64QAM Receiver Sensitivity: -99dBm at QPSK
Features
Features
Mobile Broadband:
Comparable to basic DSL and Cable internet service
Use at home or anywhere in XOHM coverage area
Plug-and-Play
No holes and wall jacks
No technicians
Portable
Keep XOHM as your service provider if you move across town, or to another city with coverage
Take it along on a trip anywhere within XOHM coverage
