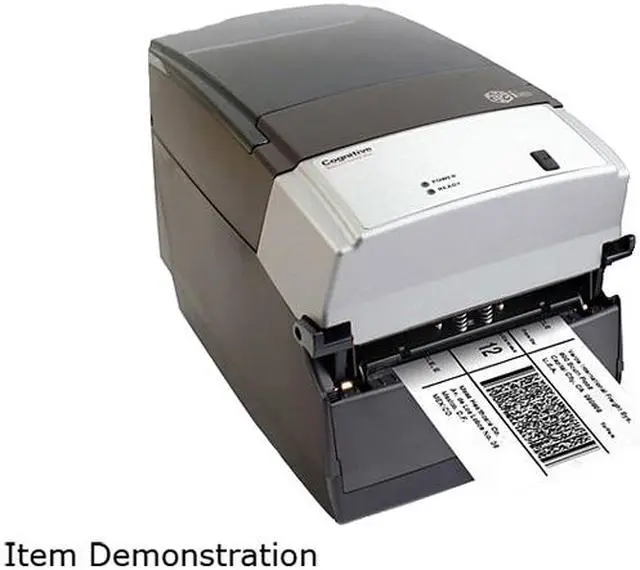

Cognitive TPG CXD4-1300 Direct Thermal Desktop Label Printer, 300 dpi, 8 ips, 4.2" 2-Line LCD Display, Serial, Parallel, USB A/B, Ethernet
- 4.2", 300Dpi, 8Ips, 2-Line Lcd Display, 90-260Vac, 6 Mb Flash, Rtc, Ser/Par, Usb A/B, Ethernet, Us Power Cord, 6' Usb 2.0 Cable
- Die-cast LCD control panel for easy setup and no need for a computer
- Rugged & reliable all-metal printer mechanism
- Large 8” OD roll capacity for high volume applications
- Small footprint, big box performance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
C Series Compact Industrial Thermal Label Printer
A compact label printer ideal for applications that require an efficient use of space, yet with the capacity to perform like industrial sized barcode label printers! C Series printers can be used throughout your entire enterprise.
The C Series represents CognitiveTPG's most versatile line of thermal label printers. Its small desktop size holds the performance associated with big box printers. The C Series printers deliver value and functionality to fit multiple applications and industries, from warehouse floor to the pristine pharmacy environment.
Features
- Rugged and reliable, all-metal printer mechanism for high volume printing applications
- Die-cast metal user interface to withstand harsh environments
- Menu-driven LCD controls for easy set-up without a computer
- Full connectivity suite, including internal Ethernet, USB ports and serial or parallel communication ports
- Fast print speeds up to 8ips
- Real-time clock (RTC) for date- and time-sensitive applications
- 8" OD roll capacity for continuous printing
Industries
-
Entertainment -
Transportation & Logistics -
Retail -
Healthcare
Entertainment
Transportation & Logistics
Retail
Healthcare-
Distribution -
Services -
Manufacturing -
Government
Distribution
Services
Manufacturing
GovernmentHighlights
Metal vs. Plastic
One touch tells you that this is not a plastic printer. We know the environment and the workload the C Series printers must endure. Using solid metal framing, print mechanism, and components gives it the rugged and industrial strength to stand up to some of the most challenging environments. This industrial build is what enables the C Series to compete with table top printers.
Flexibility Provides Versatility
The C Series delivers flexibility and versatility to meet mostly any applications. For on-demand printing applications, the C Series small footprint, LCD menu, and USB-A port provides a user friendly solution. With high volume printing, the back expands to accommodate an 8 inch roll to maintain its compact footprint. The C Series also offers a 300dpi print solution for high resolution and graphics printing.
Stand Alone Application
Use the USB-A port to attach scanner or keyboard and the LCD menu for on-demand labeling.
All-Metal Build for Increased Reliability
One touch and lift of this printer will tell you this is no cheap, plastic component printer. We understand the workload these printers endure which is why we use metal in all critical components so the printer can stand up to daily wear-and-tear.
8" OD Roll Capacity
Back drops out so you can insert a 8" OD Roll capacity for high volume applications, equivalent to some of the larger table top printers.
TECHNICAL SPECIFICATIONS
| 2-Inch Model | 4-Inch Model | |
| Method | Direct Thermal or Thermal Transfer | Direct Thermal or Thermal Transfer |
| Width (max) | 2.118" (53.8mm) | 4.094" (104mm) |
| Length (max) | 322" (8179mm) | 322" (8179mm) at 203dpi |
| Speed (max) | 8ips (203.2mm/sec) with LCD display | 8ips (203.2mm/sec) with LCD display |
| Resolution | 203dpi (8dpmm). Optional 300dpi (12dpmm) | 203dpi (8dpmm). Optional 300dpi (12dpmm) |
| MEDIA | ||
| Width | 0.75 - 2.84" (10 - 72mm) | 2 - 4.63" (50 - 119mm) |
| Roll Diameter | 8" (203mm) | 8" (203mm) |
| Ribbon Length (TT only) | 6500" (165mm) | 5500" (140mm) |
| Indexing | Continuous, gap, black bar, black mark, notch | |
| Media Caliper | Up to .01" (0.254mm) | Up to .01" (0.254mm) |
| BARCODES | ||
| Add2, Add5, Codabar, Code39, Code93, Code 128A/B/C, D2of5, I2of5, S20f5, EAN8, EAN13, EAN128, MSI/I1, Plessey, Postnet, UPCA/A+/E/E1 | ||
| FONTS | ||
| Bitmapped | 7 Styles with up to 10 x 10 magnification, variable boldness and spacing | |
| International | Sans serif font in 7 pt. sizes, up to 4 x 4 magnification, variable boldness and spacing | |
| Scalable Smooth Fonts | 3 Ultra Font styles for smooth characters in any size and boldness | |
| Rotations | 0, 90, 180, 270 degrees | |
| Optional | Kanji, Korean, and OCR fonts available | |
| GRAPHICS | ||
| PCX and BMP formats | ||
| MEMORY | ||
| RAM - 16MB, Flash - 8MB | ||
| COMMUNICATIONS | ||
| USB-A/B, Serial or Parallel, Ethernet (internal) | ||
| REAL-TIME CLOCK (RTC) | ||
| Standard, All Models | ||
| ELECTRICAL | ||
| Auto-ranging 100 ~ 240VAC, 50 - 60 Hz, 24VDC output | ||
| ENVIRONMENTAL | ||
| Operates at 41 - 104°F (5 - 40°C) | ||
| PHYSICAL CHARACTERISTICS | ||
| Width | 5" (127mm) | 6.9" (175mm) |
| Height | 7.1" (181mm) | 7.1" (181mm) |
| Depth | 10.04" (255mm) | 10.04" (255mm) |
| Weight (DT/TT) | 5.02 lbs (2.28kg) / 5.23 lbs (2.38kg) | 5.91 lbs (2.69kg) / 6.10 lbs (2.77kg) |
| ACCESSORIES | ||
| Start-up guide, power supply, Windows driver, programmer's guide, NiceLabel design software, 8" OD media roll adapter, USB cable. Optional communication cables | ||
| WARRANTY | ||
| Printer | 24 Months from date of purchase (requires registration and excludes printhead) | |
| PROGRAMMING LANGUAGE | ||
| Cognitive Programming Language (CPL), EcPL and ZcPL language emulation. Optional laser printer emulation (PCL5) | ||
Cognitive's Compact Industrial CX printer is the next generation of high performance thermal label printer, bridging the gap between mid range and desktop models. CX printer delivers exceptional value as high performance printers with small footprints. Product Type: Direct Thermal Printer Platform Supported: PC Recommended Use: Label Print Product Type: Direct Thermal Printer Manufacturer Part Number: CXD4-1300 Media Thickness: 10 mil Platform Supported: PC Maximum Print Width: 4.09 Recommended Use: Label Print Standard Memory: 16 MB Manufacturer: Cognitive TPG Product Model: CX Product Name: CX Network Thermal Label Printer Maximum Print Resolution: 300 dpi Brand Name: CognitiveTPG Maximum Print Resolution: 300 dpi Brand Name: CognitiveTPG Media Type: Notched Media Type: Black Mark Media Type: Black Bar Media Type: Continuous Form Media Type: Receipt Media Type: Fanfold Media Type: Tag Media Type: Notched Media Type: Black Mark Media Type: Black Bar Media Type: Continuous Form Media Type: Receipt Media Type: Fanfold Media Type: Tag Height: 7.1 Width: 6.9 Depth: 10 Maximum Mono Print Speed: 8 in/s Environmentally Friendly: Yes Ethernet: Yes Print Color Capability: Monochrome Maximum Mono Print Speed: 8 in/s Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: RoHS Ethernet: Yes Ethernet Technology: Fast Ethernet Maximum Label Width: 4.63 Maximum Label Length: 26.83 ft Print Color Capability: Monochrome
