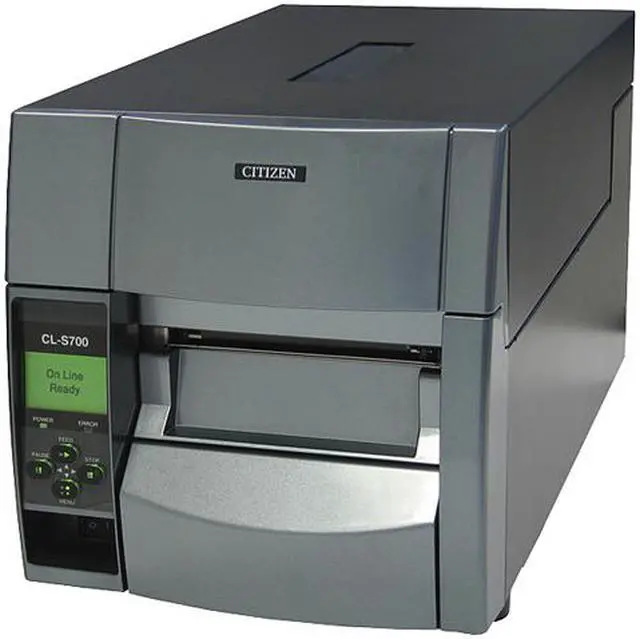

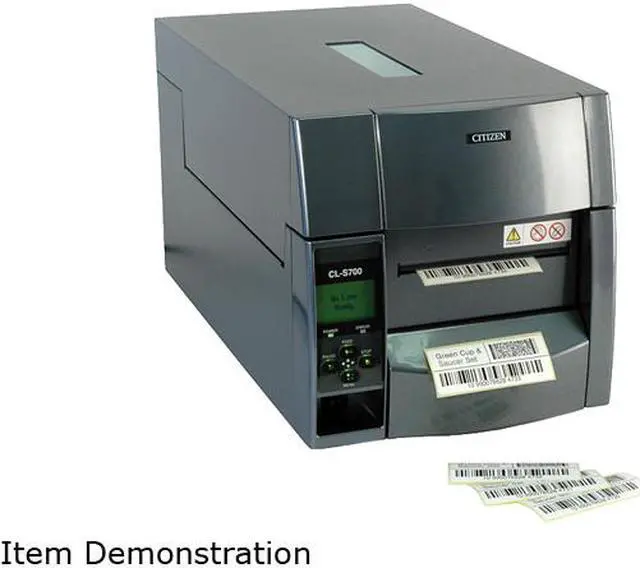

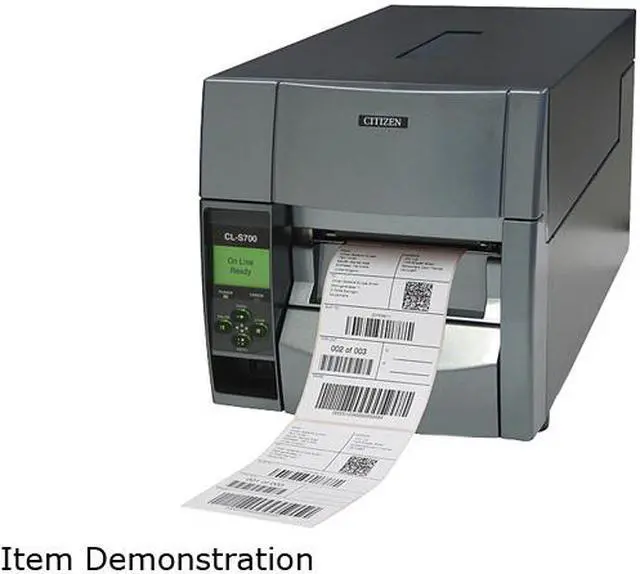

CITIZEN CL-S700-E Industrial Barcode/Label Printers

The Citizen CL-S700 industrial barcode and label printer offers front-panel loading for media and ribbon replacement. The direct thermal label printer also has a backlit LCD control panel for easy access to settings and features. Spend less time at the printer with optional features like an auto peeler, cutter and rewinder that help cut downtime in half.

Print and Store Multiple Types of Labels With the Citizen Barcode Label Printer

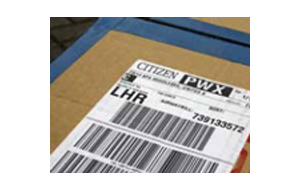

Print up to 10 ips with the Citizen CL-S700 industrial barcode and label printer. Use ribbon capacities of up to 450m and media rolls up to 4in. wide to create CD, barcode, shipping and other labels for your business. Adjustable media sensors like black mark and label gap sensors ensure you get sharp results and they alert you to potential print errors. Reprint your most recent labels using the available 1MB memory or store several frequently used formats with the optional memory card slot.

Connectivity for USB and Wireless Devices

The primary interface for the Citizen barcode label printer is a triple interface USB with additional built-in parallel and serial ports. However, LAN access is available through Ethernet 10/100 BaseT and 802.11b wireless connectivity. The compact design integrated power supply and connectivity options make it easy to fit this barcode and label printers into any space. Use it in small offices, large warehouses or retail stores to create barcodes for all your merchandise or supplies.

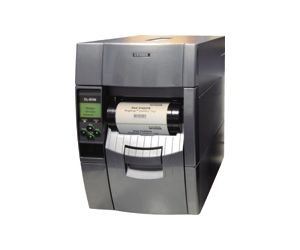

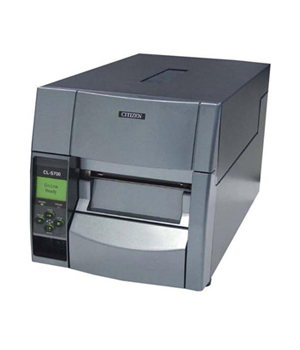

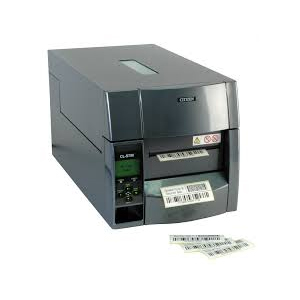

Citizen CL-S700 Series

High Performance with Easy Access
Ingeniously Designed for Easy Operation and Reliability

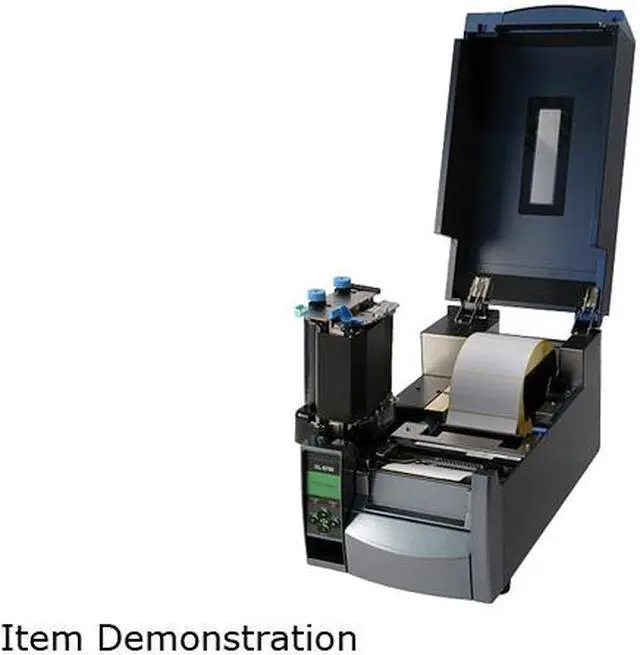

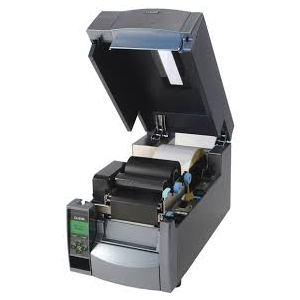

The CL-S700 front loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a high-lift metal mechanism that opens to a full 90 degrees, allowing for easy access to the ribbon and media path. Best of all, the Hi-Open design of the CL S700 allows the case to be opened vertically, making it the perfect printer for placement in confined settings. In addition, the CL S700 offers all the superior features you have come to expect from citizen Active Ribbon Control and Positioning system to eliminate ribbon wrinkle and media slippage, rugged heavy-duty steel cabinet for extra durability.

Features

• Programmable front LCD panel
• Cross-Emulation™ control board
• Direct thermal or thermal transfer printing
• Fast 10ips print speed
• 450m ribbon – inside or outside wound
• Metal Hi-Lift™ print mechanism
• Heavy-duty steel cabinet
• Active Ribbon Control and Positioning system (ARCP)
• Internal 8-inch (200mm) media capacity
• Standard internal parallel, serial and USB interfaces
• 300dpi version available (CL-S703)
• Optional internal Ethernet card
• Optional peeler and cutter available
• Label-making software included
• Ships with Windows™ 2000, XP, and Vista Drivers
• Two-Year Warranty

Key benefits

• Front exit - prevents damage from moisture or foreign objects
• Variable paper width - 1 inch (25.4mm) – 4.6 inches (118.1mm)
• Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
• Paper thickness up to 0.250mm
• Ultra fast print out – nearly 10ips (250mm per/sec)
• Backlight LCD control panel for easy configuration
• Very large media capacity - holds rolls up to 8 inches (200mm)
• Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
• Integrated power supply enables clean work station
• No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.

Connectivity

• Triple interface USB, parallel and serial built-in, exchangeable interface card slot for optional card from list below.
• LAN
• Wi-Fi

Operating Systems

• Windows XP, Vista, 7 and 8
• Windows Server 2003, 2008R2 and 2012
• Linux and Mac OS/X
• Cross-Emulation™ - Automatically switch between Zebra® ZPL® and Datamax®
• CUPS

Applications

• Supply chain
• Inventory control
• Asset tracking
• Packaging
• Healthcare
• Ticketing

Specifications

Model Version	CL-S700DT	CL-S700	CL-S700R
Technology	Direct Thermal	Thermal Transfer & Direct Thermal
Resolution	203dpi (8 dots permm)
Print Speed (maximum)	7ips, 175mm/sec	10 inches per second (254mm / second)
Print Width (maximum)	4.10 inches (104.1mm)
Media Width (min to max.)	1.00 inches to 4.65 inches (25.4mm to 118.1mm)
Media Length (min. to max.)	0.25 inches to 32.0 inches (6.35mm to 812.8mm)
Roll Size (max.), Core Size (min.)	8 inches (200mm) outside diameter. Core size minimum of 1 inch (25mm). External media slot
Media Sensor	Fixed front sensor	Fully adjustable rear sensor and high resolution front sensor
Media Thickness (min. to max.)	0.0025 inches - 0.01 inches (0.0635 - 0.254mm)
Ribbon Size	Direct thermal only	3.40 inches (86.5mm) maximum Outside Diameter. 1476 ft (450 metres) length
Ribbon Winding & Type		Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type
Ribbon System		ARCP™ automatic ribbon tension adjustment
Emulations (Languages)	Cross-Emulation™ - automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400®
Standard Interfaces	Serial & USB	Parallel (IEEE-1284), Serial (RS-232C), USB (version 1.1)
Optional Interfaces	Parallel, LAN, WLAN	Ethernet LAN (10/100 BaseT), Wireless LAN (802.11b, g, n*)
Case Type, Mechanism Type	Hi-Open™ metal case with safe, soft-close feature. Hi-Lift™ mechanism with 90-degree opening
Control Panel	4-Line back-lit graphic LCD and 4 buttons
RAM (Standard Memory)	16.0Mb total, 1.0Mb available for user
Flash (Non-Volatile Memory)	4.0Mb total, 1.0Mb available for user
Windows® Drivers, Design Software	Free-of-charge on CD with printer, including support for Windows® XP®, 2003, 2008, Vista®
Internal Peeler & Rewinder	No	No	Yes
Dimensions (W x D x H)	10 x 19.3 x 10.4 in. (255 x 490 x 265mm)	10 x 19.3 x 10.4 in. (255 x 490 x 265mm)	10 x 19.29 x 15.1 in. (255 x 490 x 385mm)
Weight (approximately)	27.5 lbs (12.5kg)	29.3 lbs (13.3kg)	38.8 lbs (17.6kg)
Warranty	2-Year Manufacturer's Warranty or 100Km on printer. Printhead: 50Kms or 6 months in TT mode
