What types of barcodes can the Wasp WPL305 printer handle?

The Wasp WPL305 printer can handle various 1D barcodes including Code 39, Code 93, Code 128 UCC, Codabar, EAN-8, EAN-13, UPC-A, UPC-E, and several others.

What is the maximum print width of the Wasp WPL305 Desktop Thermal Barcode Printer?

The maximum print width of the Wasp WPL305 Desktop Thermal Barcode Printer is 4.25 inches (108.00 mm).

$521^.99

Free 79-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

TELeasy

Top Rated

4 (1,162 total ratings)

$560^.06
+ FREE SHIPPING

IPC Store

4.4 (3,116 total ratings)

$569^.30
+ FREE SHIPPING

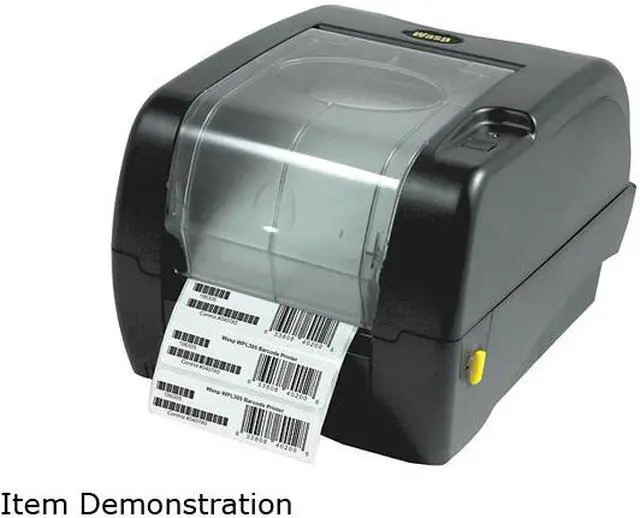

Main image of Wasp 633808402006 WPL305 Desktop Thermal Barcode Printer

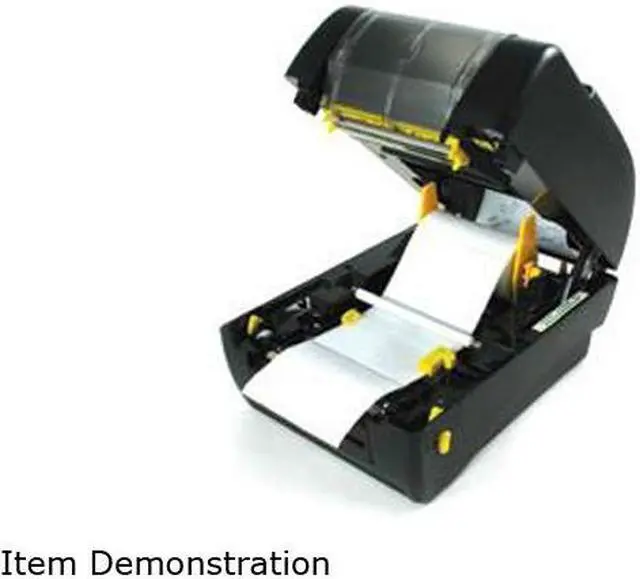

Alt view image 2 of 3 - Wasp 633808402006 WPL305 Desktop Thermal Barcode Printer

Alt view image 3 of 3 - Wasp 633808402006 WPL305 Desktop Thermal Barcode Printer

Shop All Wasp Barcode Products

Wasp 633808402006 WPL305 Desktop Thermal Barcode Printer

Be the first to review this product...

Direct Thermal / Thermal Transfer Printer
Print Speed: 5 in/s
Print Resolution: 203 dpi
Print Width: 4.25"
USB / Serial / Parallel
8 MB of SDRAM / 4 MB of FLASH

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

WPL305 is user-friendly, and reliable desktop barcode printer in its class. Its desktop design great for limited office and warehouse space. Easy installation & media loading will have you printing in minutes.

WASP WPL305-LABEL PRINTER-B/W-THERMAL TRANSFER-ROLL ( 4.65 IN)-203 DPI-UP TO 300

General
Brand	Wasp
Model	WPL305 (633808402006)

Printer
Print Technology	Direct Thermal/Thermal Transfer Printer
Printer Type	Desktop
Print Speed	5 ips
Max Resolution(B&W)	203 dpi (8 dots / mm)
Memory	8 MB SDRAM, 4 MB Flash
Fonts Included	Resident fonts: Eight alphanumeric bitmap fonts, one Monotype Imaging CG Triumvirate Bold Condensed scalable font, built-in Monotype True Type Font engine Font rotation: 0°, 90°, 180°, 270°
Barcode Type	1D Barcodes: Code 39, Code 93, Code 128 UCC, Code 128 subset A., B., C., Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
Cutter	Tear Off
RFID Encoder	No

Media Handling
Media Type	Label
Media sizes supported	Media width: 1.00" - 4.40" (19.00 mm - 118.00 mm) Media diameter (max.): 5.00" OD (127.00 mm) with 1.00" core Ribbon length (max.): 984 ft. (300 m)
Print Size	Maximum print width: 4.25" (108.00 mm) Maximum print length: 90.00" (2286.00 mm)

Connections
Interface	Parallel / Serial / USB

Compatibility
Windows Compatible	32-bit or 64-bit version of: Windows 8 Windows 7 Windows Vista Windows XP (SP3) Windows 2000 Windows Server 2012 Windows Server 2008 Windows Server 2003

Features
Features	Standard Features: Memory expansion: SD memory expansion slot for use with 4 GB SD cards Sensors: Gap transmissive sensor (offset 6 mm from linear edge), movable black mark reflective sensor, head open sensor, ribbon end sensor Cabinet: Double-walled ABS plastic Operation panel: One power switch, one feed button, and one LED (3 colors) Command set: WPL, ZPL emulation, EPL emulation Operational Characteristics: Operating temperature: 41 to 104 Fahrenheit degree (5 to 40 Celsius degree) Storage temperature: -40 to 140 Fahrenheit degree (-40 to 60 Celsius degree) Certifications: FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TUV/Safety, CCC Benefits: Compact size is perfect for office and warehouse use Rapidly change label rolls using the drop-in media design Multiple connectivity options simplify installation Easily monitor media usage with the clear media window Flexible design delivers thermal transfer and direct thermal printing for a variety of applications

Dimensions & Weight
Dimensions	7.40" x 8.39" x 12.36"
Weight	7.00 lbs.

Group
Group Feature	No

Additional Information
First Listed on Newegg	February 17, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Wasp WPL305 is a desktop barcode label printer for small offices and warehouses that need direct-thermal or thermal-transfer printing, with 203 dpi resolution, speeds up to 5 inches per second, and a maximum 4.25-inch print width.

Recommended For

Small businesses shipping orders from a Windows PC that need desktop 4-inch shipping labels, without a mobile or wireless workflow.
Office or warehouse teams printing inventory, shelf, or asset labels in light- to medium-duty batches; thermal transfer supports longer-lasting labels, while direct thermal suits labels that need not be permanent.
Retail and stockroom staff who print product, price, or barcode labels at a fixed workstation and use Windows-based labeling software.
Teams replacing or adding a printer to an existing setup that uses USB, serial, or parallel connections, or WPL, ZPL, or EPL printer commands.

Spec Summary

Attribute	Value
Best For	Desktop barcode and label printing for office or warehouse use, with direct thermal and thermal-transfer printing and USB, serial, or parallel connectivity
Print Performance	Prints at 5 ips with a maximum black-and-white resolution of 203 dpi (8 dots/mm) and a maximum print width of 4.25 inches
Media And Handling	Supports labels 1.00–4.40 inches wide, rolls up to 5 inches in diameter on a 1-inch core, and ribbon up to 984 feet; tear-off cutter and sensors for gaps, black marks, an open head, and ribbon end
Memory And Expansion	8 MB SDRAM and 4 MB Flash, with an SD expansion slot supporting 4 GB SD cards
Barcodes And Fonts	Supports 1D barcode formats including Code 39, Code 128, EAN, UPC, Codabar, Interleaved 2 of 5, and GS1 DataBar; includes bitmap and scalable fonts, a TrueType font engine, and 0°, 90°, 180°, and 270° font rotation
Connectivity And Commands	USB, serial, and parallel interfaces; supports WPL commands and ZPL and EPL emulation
Operating System Compatibility	Compatible with listed 32-bit and 64-bit Windows versions from Windows 2000 through Windows 8, plus Windows Server 2003, 2008, and 2012
Controls And Construction	Power switch, feed button, and three-color LED; double-walled ABS plastic cabinet
Operating Environment And Certifications	Operating temperature 41–104°F (5–40°C); storage temperature −40–140°F (−40–60°C); FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TUV/Safety, and CCC certifications
Dimensions And Weight	7.40 × 8.39 × 12.36 inches; 7.00 lbs.
Model Identifiers	Wasp WPL305; model number 633808402006
