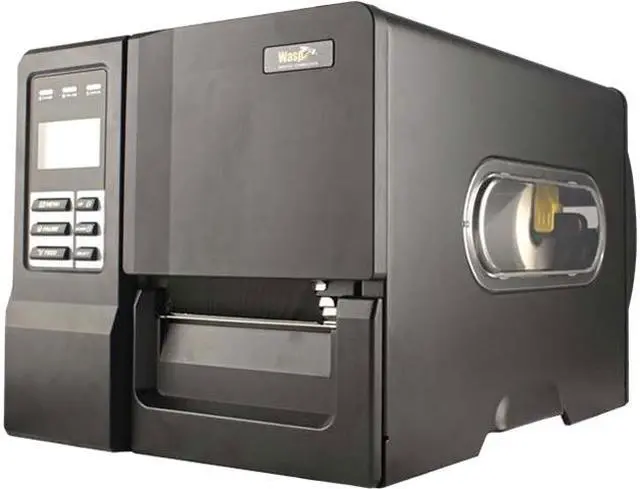

Wasp 633808404062 WPL406 Thermal transfer Industrial Barcode Printer

Be the first to review this product...

Thermal Transfer Printer
203 dpi
4" Print width
USB / Serial / Parallel
Interface cables sold separately

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The WPL406 is a low profile, industrial designed industrial barcode printer that delivers reliability your business depends on with durable construction and best in class connectivity options (Ethernet, USB 2.0, and Serial).

With an all-metal exterior housing and die-cast aluminum print mechanism, the WPL406 can withstand the most demanding conditions making this printer ideal for high volume print applications (up to 10K labels per day).

The WPL406 is designed for a range of environments including manufacturing, warehousing, distribution, retail, and healthcare. Optional WaspProtect extended service plan increases coverage to 4 years including accidental breakage. The WPL406 is CE, FCC, TUV, UL certified and is RoHS compliant.

MAIN OVERVIEW FEATURES: Recommended Use: Label PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 6 in/sMaximum Print Resolution: 203 dpiMaximum Print Width: 4.09"Standard Memory: 8 MBSerial Port: YesUSB: YesEthernet: YesEthernet Technology: EthernetDisplay Screen Type: LCDMedia Type: LabelForm Factor: DesktopPackage Contents: WPL406 Industrial Barcode Printer Software & Drivers CD USB Cable Power Cord 4.33" x 164' Sample Ribbon Platform Supported: PCEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: TaiwanLimited Warranty: 2 Year

General
Brand	Wasp
Model	WPL406 (633808404062)

Printer
Print Technology	Thermal Transfer Printer
Printer Type	Industrial
Print Speed	6 ips
Max Resolution(B&W)	203 dpi
Memory	8 MB SDRAM, 4 MB Flash Memory expansion: Up to 4 GB
Fonts Included	Resident fonts: 8 alpha-numeric bitmap fonts, 1 Monotype Image CG Triumvirate Bold Condensed scalable font Font rotation: 0, 90, 180, 270 degrees
Barcode Type	1D Barcode symbologies: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, GS1 DataBar, Logmars, Code11 2D Barcode Symbologies: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Media Handling
Media sizes supported	Media width: 1.00" to 4.60" (25.00 mm to 118.00 mm) Media diameter (max.): 8.00" OD Ribbon length (max.): 450 meter
Print Size	4" Print width

Connections
Interface	Internal Ethernet, USB 2.0, and serial

Features
Features	Standard Features: Sensors: Gap transmissive, black mark, head open, and ribbon end Cabinet: All-metal cover with die-cast aluminum print mechanism with clear media viewing window Control panel: 6-button (menu, pause, feed, up, down, select) Command set: WPL, ZPL emulation, EPL emulation Operational Characteristics: Operating temperature: 41 to 104 Fahrenheit degree (5 to 40 Celsius degree) Storage temperature: -40 to 140 Fahrenheit degree (-40 to 60 Celsius degree) Certifications: FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TUV/Safety, CCC Benefits: Multiple connectivity options allows for easy and quick integration into any environment Flexible design delivers direct thermal and thermal transfer printing for a variety of applications Low profile design fits where larger industrial printers do not All-metal construction and die-cast aluminum print mechanism can withstand even the toughest production environments Quiet operation and fast label throughput provide added versatility

Dimensions & Weight
Dimensions	10.20" x 11.26" x 17.09"
Weight	24.25 lbs.

Additional Information
First Listed on Newegg	October 31, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
