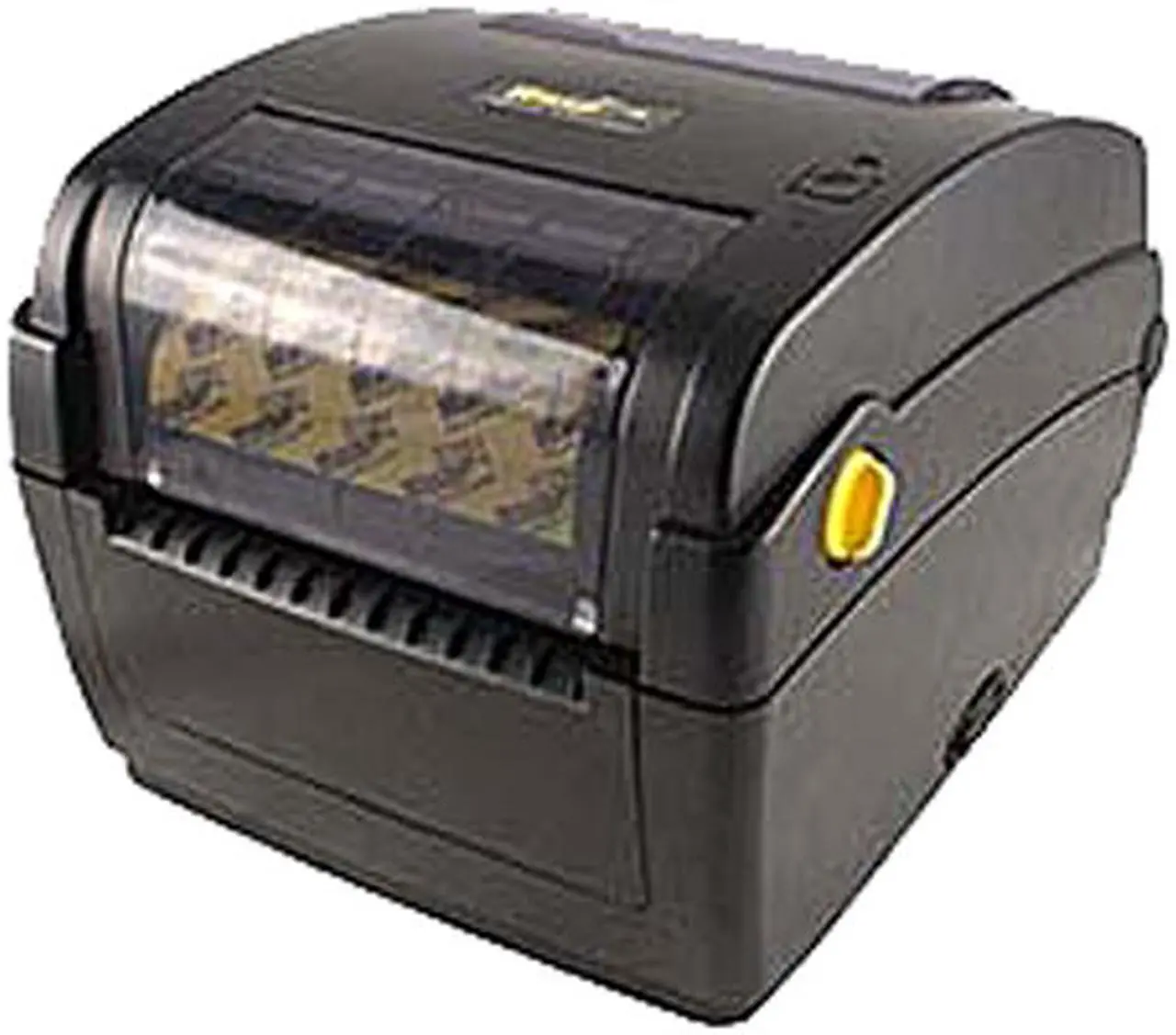

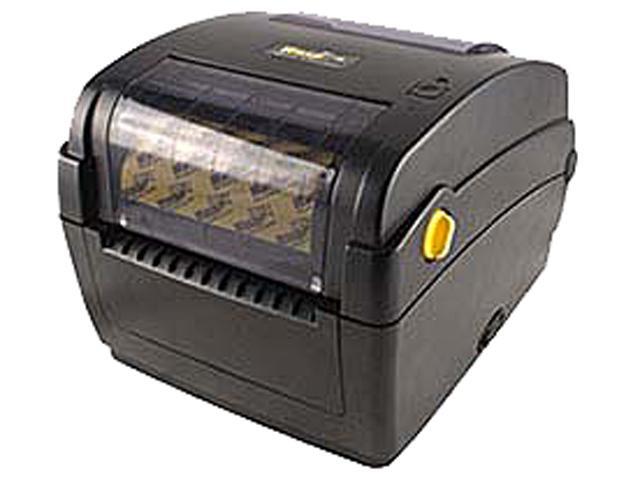

The WPL304 features direct thermal and thermal transfer print technology and best in class standard connectivity options (Ethernet, USB, Serial, and Parallel). With the smallest footprint of any Wasp 4-inch format printer, the WPL304 is an excellent choice for cramped workspaces.
The WPL304 is designed for a range of tasks including POS, asset tracking, shipping/receiving, and labeling of inventory. Optional WaspProtect extended service plan increases coverage to 4 years including accidental breakage.
Learn more about the Wasp Barcode WPL304 (633808404055)
General
Brand
Wasp
Model
WPL304 (633808404055)
Printer
Print Technology
Thermal Transfer Printer
Printer Type
Desktop
Print Speed
Up to 4 inches per second
Max Resolution(B&W)
203 dpi
Memory
Memory: 8 MB SDRAM, 4 MB Flash Memory expansion: Up to 4 GB
2D Barcode Symbologies: PDF-417, Maxicode, DataMatrix, QR code, Aztec
Media Handling
Media sizes supported
Media width: 0.79" to 4.40" (20.00 mm to 112.00 mm) Media diameter (max.): 5.00" Ribbon length (max.) 110 m
Print Size
4" Print width
Connections
Interface
Ethernet / Serial / USB
Features
Features
Standard Features: Sensors: Gap transmissive, black mark, head open, and ribbon end Cabinet: Double-walled ABS plactic Control panel: One power switch, one feed button, one LED Command set: WPL, ZPL emulation, EPL emulation
Operational Characteristics: Operating temperature: 41 to 104 Fahrenheit degree (5 to 40 Celsius degree) Storage temperature: -40 to 140 Fahrenheit degree (-40 to 60 Celsius degree) Certifications: FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TUV/Safety, CCC
Benefits: Multiple connectivity options allows for easy and quick integration into any environment
Compact footprint allows the WPL304 to easily fit into cramped workspaces
Less downtime due to 110 meter ribbon capacity
Double-walled clamshell design for durability and easier media loading
Flexible design delivers direct thermal and thermal transfer printing for a variety of applications
Dimensions & Weight
Dimensions
6.81" x 7.95" x 10.16"
Weight
5.00 lbs.
Additional Information
Date First Available
October 31, 2013
