Question 1

Does anyone have a clue as to whether this sound card will work under Windows 10 and when PowerColor intends to release a Windows 10 driver for it?  I have already emailed PowerColor but have not heard back yet.  Hopefully they are more responsive than Creative!

Accepted Answer

Hello,

We have uploaded Win 10 beta driver up on our website at powercolor/global/support_driver. When using this driver, it has been tested that when changing sample rate & resolution there will be a noise. Even though it will not cause harm to the card, it is a confirmed bug and we are working to have it solved by the next driver update.

Thank you,
PowerColor Support

Question 2

No molex cable provided in the box for the board. What cable should be used to connect to a PSU?

Accepted Answer

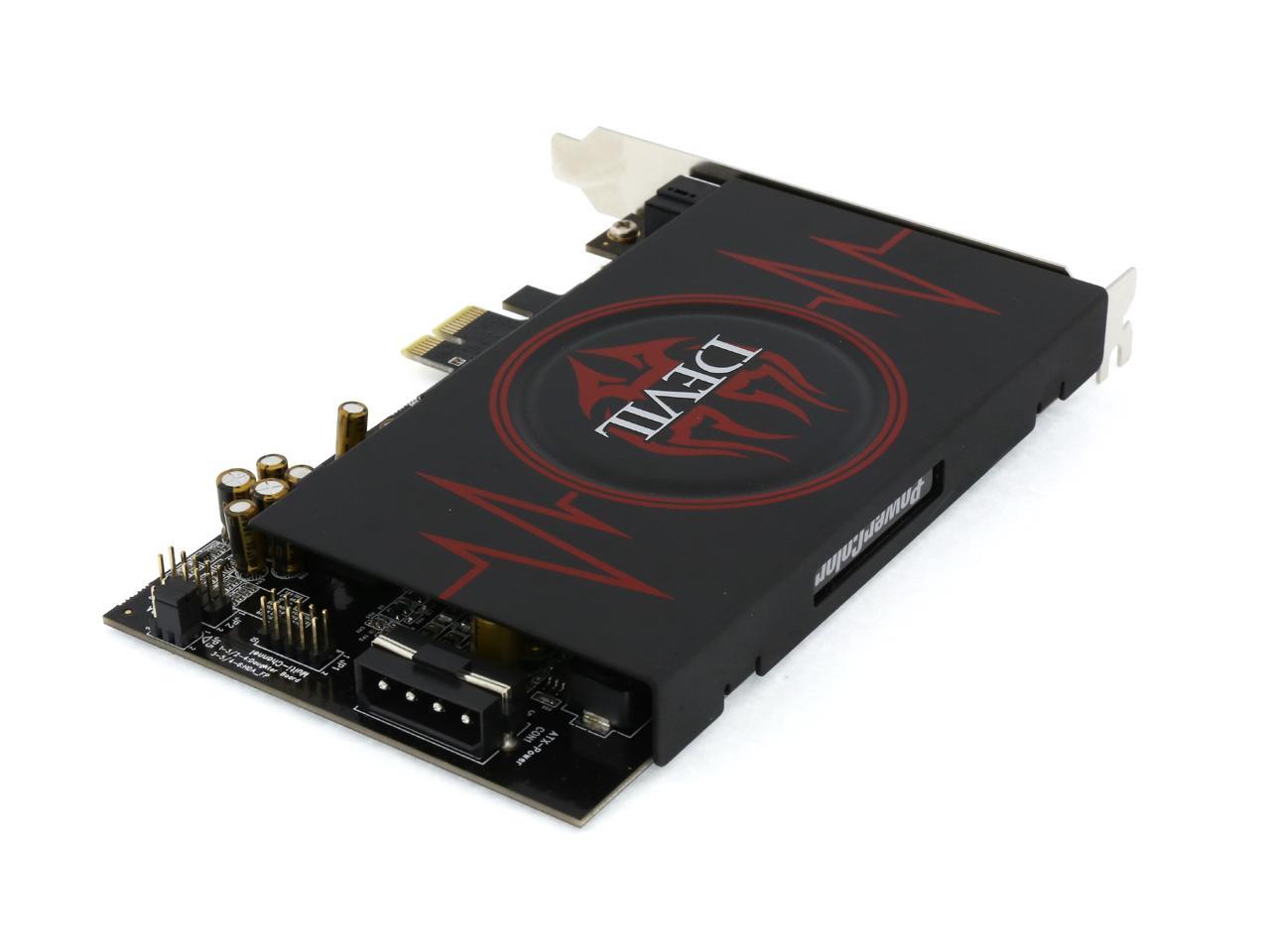

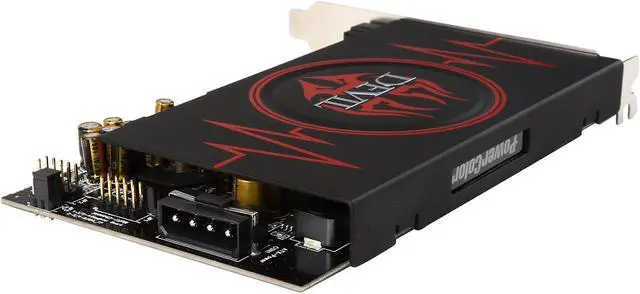

The card takes a standard 4-pin flat connector for power.  I just ran an extension off the ones that power my case fans, since they don't use much power in the first place.

Question 3

I am wondering if this sound card supports Linux? I am running Linux Mint 17.3.

Accepted Answer

im afraid the answer as of 3/5/16 is no, how unfortunate

Question 4

hi it is december now and the last good driver for windows 10 is sept beta. when will you release driver that will enable RCA line out as well ?

Accepted Answer

actually they updated the driver and everything works fine. You can enable the RCA line out via a toggle on the provided control panel. You can toggle btw headphone or RCA.

Question 5

Will this card Produce actual Dolby Digital 5.1 if connected to a Home Theater Receiver via Optical or coax?  building a HTPC for my Onkyo receiver and Klipsche  speakers.  Thanks

Accepted Answer

Hey I dont think it has dolby decoding support. It has the daughter extension board that outs 3.5mm jacks.
What i do is select the nvidia as the audio out that sends multi channel to the receiver which does the decoding. When i want to listen to headphone to select devil as the audio card. Great card for stero, i used it with Sennheiser HD650. Cheers.

Question 6

Can anyone say whether this card will output simultaneous analog and digital (preferably pass-through on the digi)?  With the 'daughter card' biz it looks likely, but I haven't been able to find definite yay or nay anywhere.

And/or if a manual is available for download somewhere -- looked around powercolor's site until I was too frustrated to continue and came up empty

Accepted Answer

Hello,

Unfortunately the card cannot simultaneously output analog and digital, but it will allow you to connect all devices through a software interface and select outputs from either analog or digital.

Please contact us at usa @ powercolor . com and we can provide you the manual.

Thank you,
PowerColor Support

Model Name	SCM888-DHDX / 4715409186021
Bus Standard	PCI Express
SNR	124dB (RCA out), 120dB (6.3 Phone out)
THD+N	0.00039% (-108dB)
Frequency Response	20Hz-20KHz
Sample Rate & Resolution	44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit

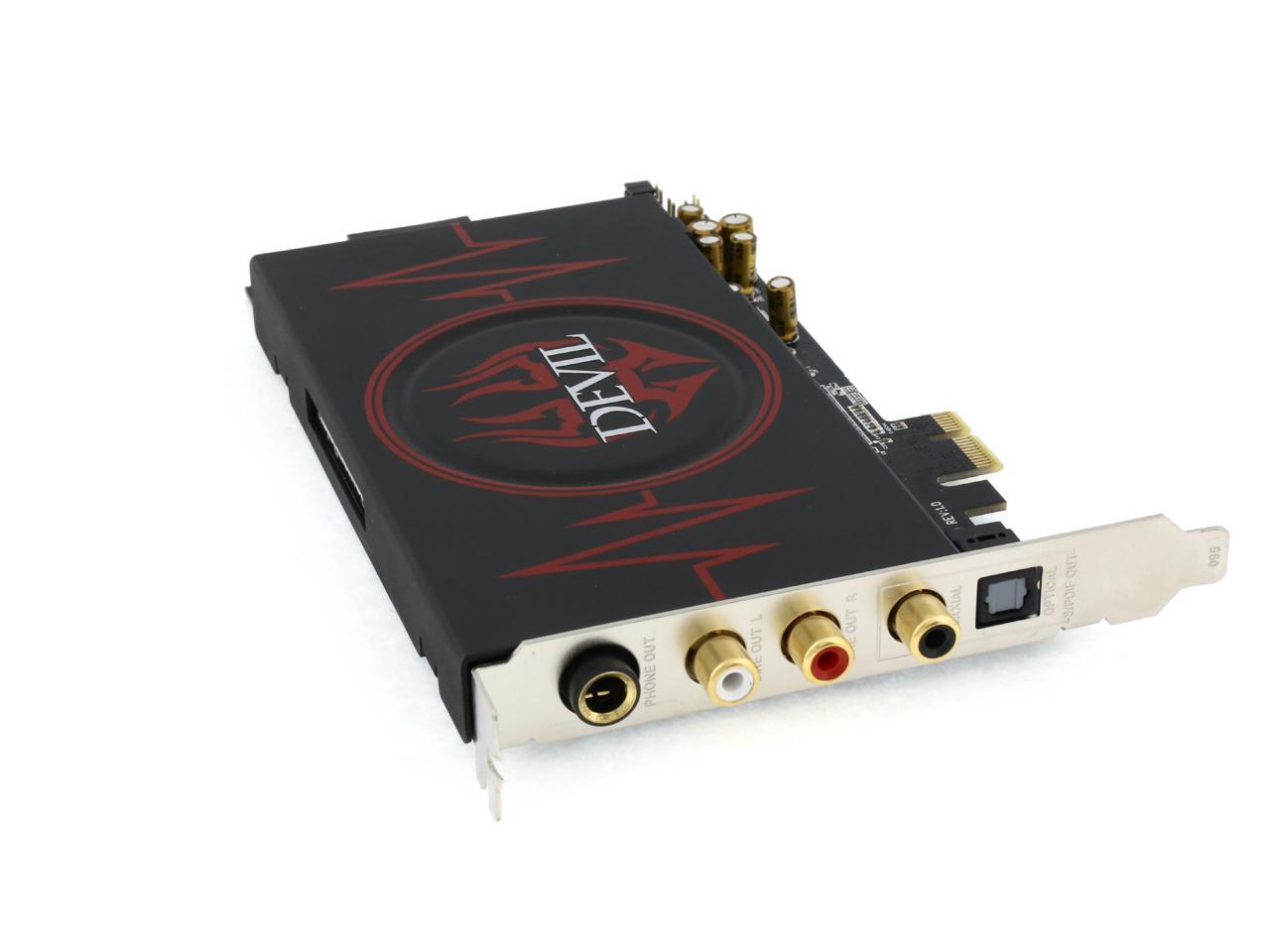

Connectivity	Main Board:

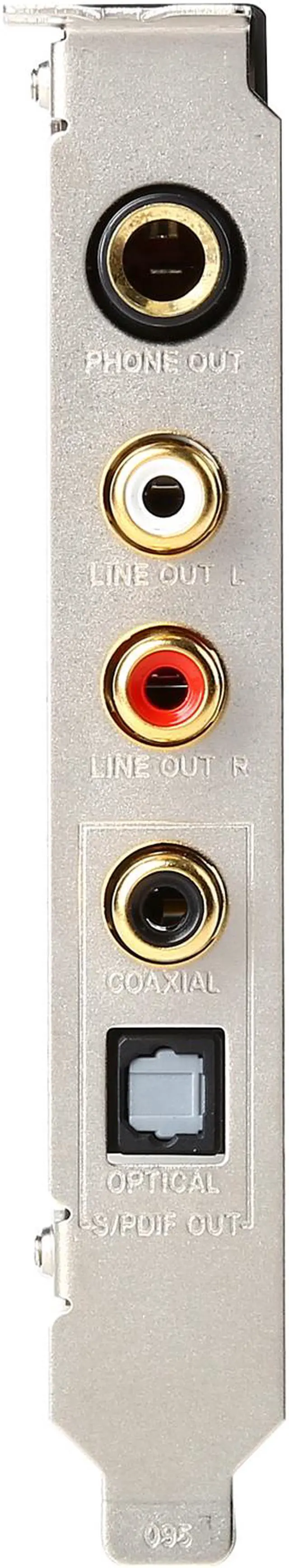

	1 x 6.3mm Phone Out with Amplifier
	2 x RCA (L/R) Jack Out
	1 x Coaxial Out
	1 x Optical Out
	1 x Multi-Channel connector to Daughter Board
	1 x HDA (HD Audio) connector to Daughter Board or Front panel audio header
	Daughter Board:
	1 x 3.5mm Mic-in
	4 x 3.5mm analog out (front/rear/center-subwoofer/side)
Output channel	Stereo & up to 7.1 Channel
Headphone Amplifier	up to 600 ohms
Chipset	Audio Processor: Cmedia CM8888 audio processor
Chipset	Digital to Analog Converter: Wolfson WM8741
Dimensions (WxL)	Main board:106 x 157 mm
Dimensions (WxL)	Daughter board: 100 x 50 mm

FEATURE SUPPORT	ACCESSORIES

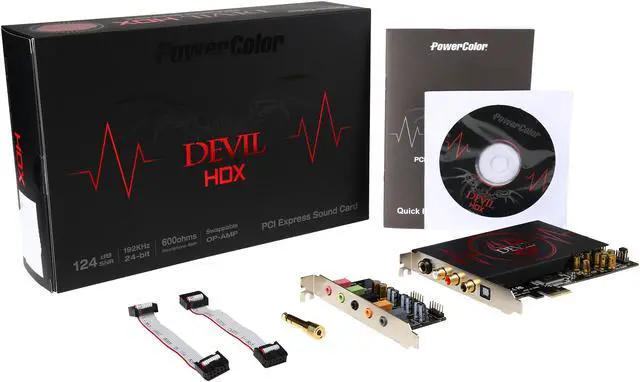

Swappable OP-AMPs Xear™ Surround Xear™ 3D (EX) Xear™ SingFX for karaoke application FlexBass II ASIO™ 2.2 with ultra-low latency	Multi-Channel Daughter Board Flat connection cable x 2 6.3mm to 3.5mm adapter Driver CD Quick Installation Guide

Brand	PowerColor
Part	SCM888-DHDX

Audio Chipset	C-Media CMI8888
Channels	7.1
Sample Rate	44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
SNR	124dB (RCA out), 120dB (6.3 Phone out)

Interface	PCI Express x1
System Requirements	Available PCI Express 1.0 (or higher) slot (1x, 4x, 8x or 16x) Intel Core 2 Duo or AMD equivalent processor, 2.2 GHz or faster CPU Intel, AMD or 100% compatible motherboard 2GB System Memory 100MB Hard Disk space Compatible with Microsoft Windows 8.1/7/ XP Available CD-ROM or DVD-ROM Drive (for installation) 4-pin peripheral power cable connector from power supply

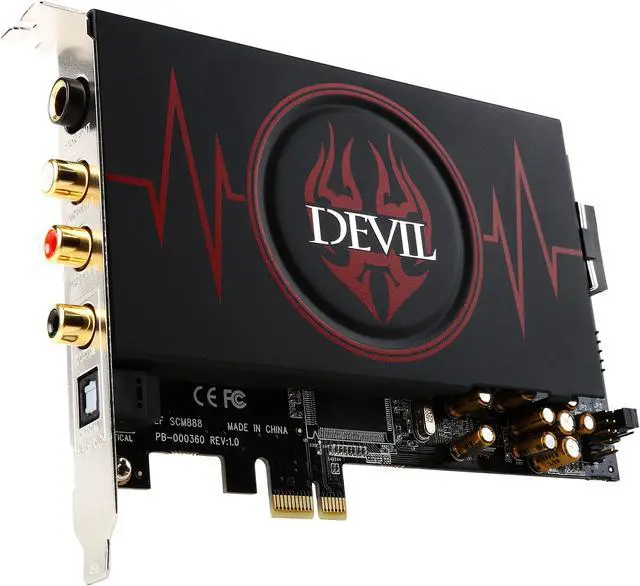

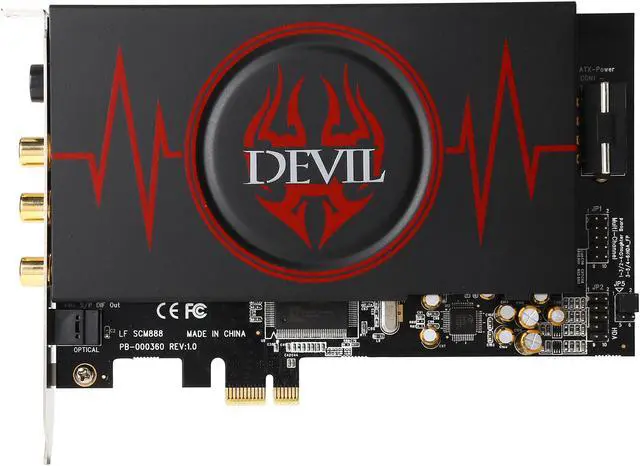

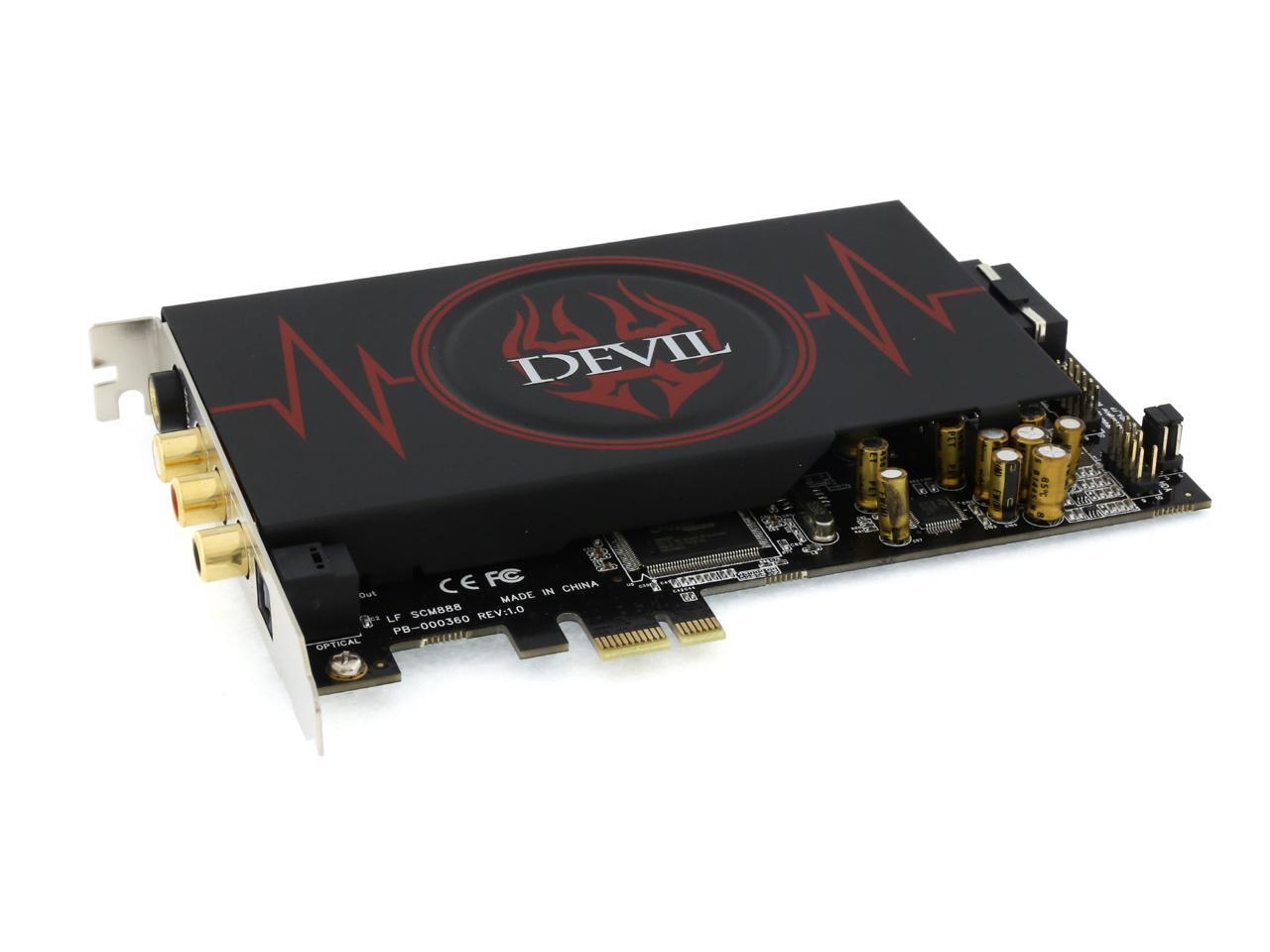

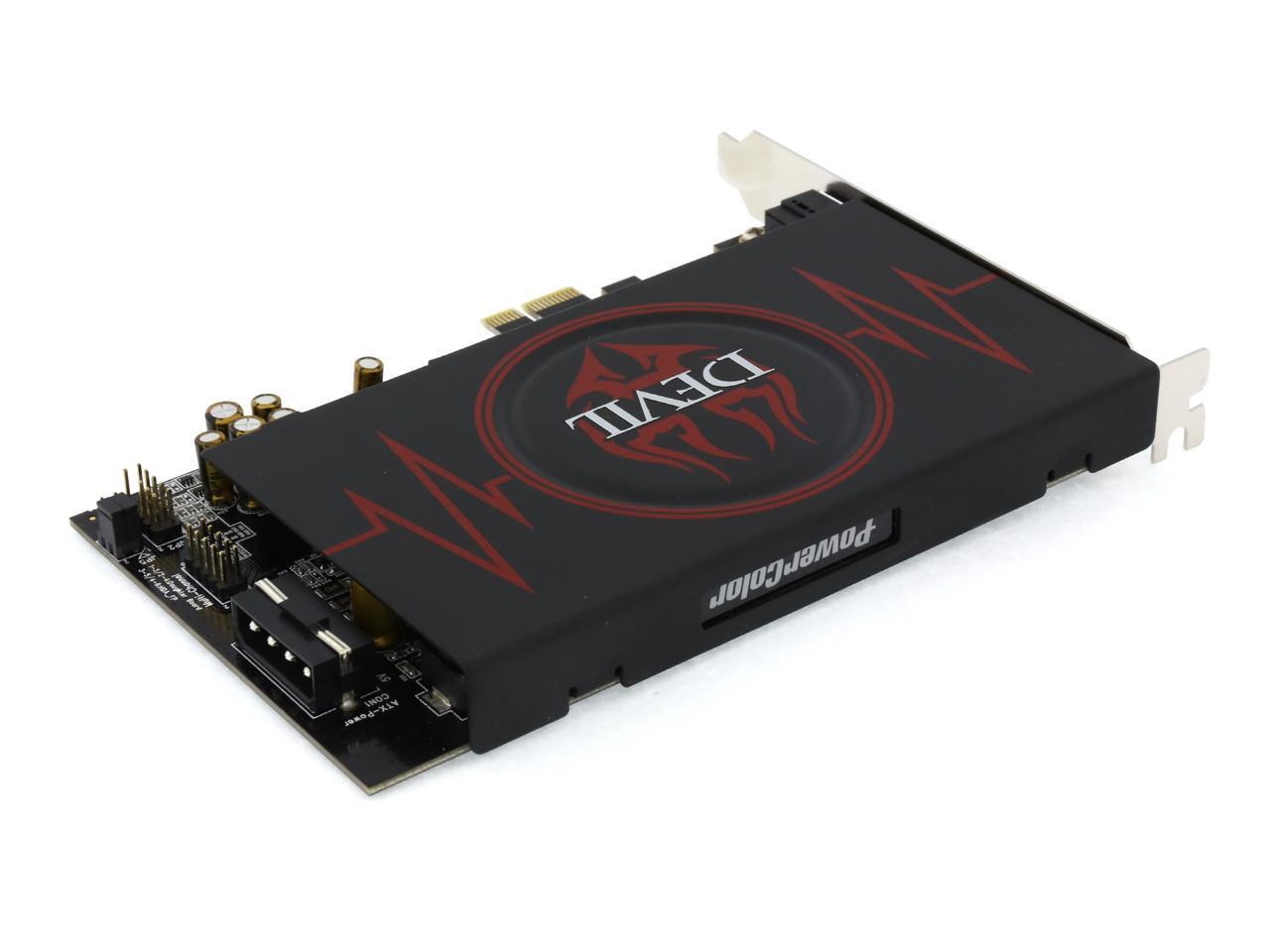

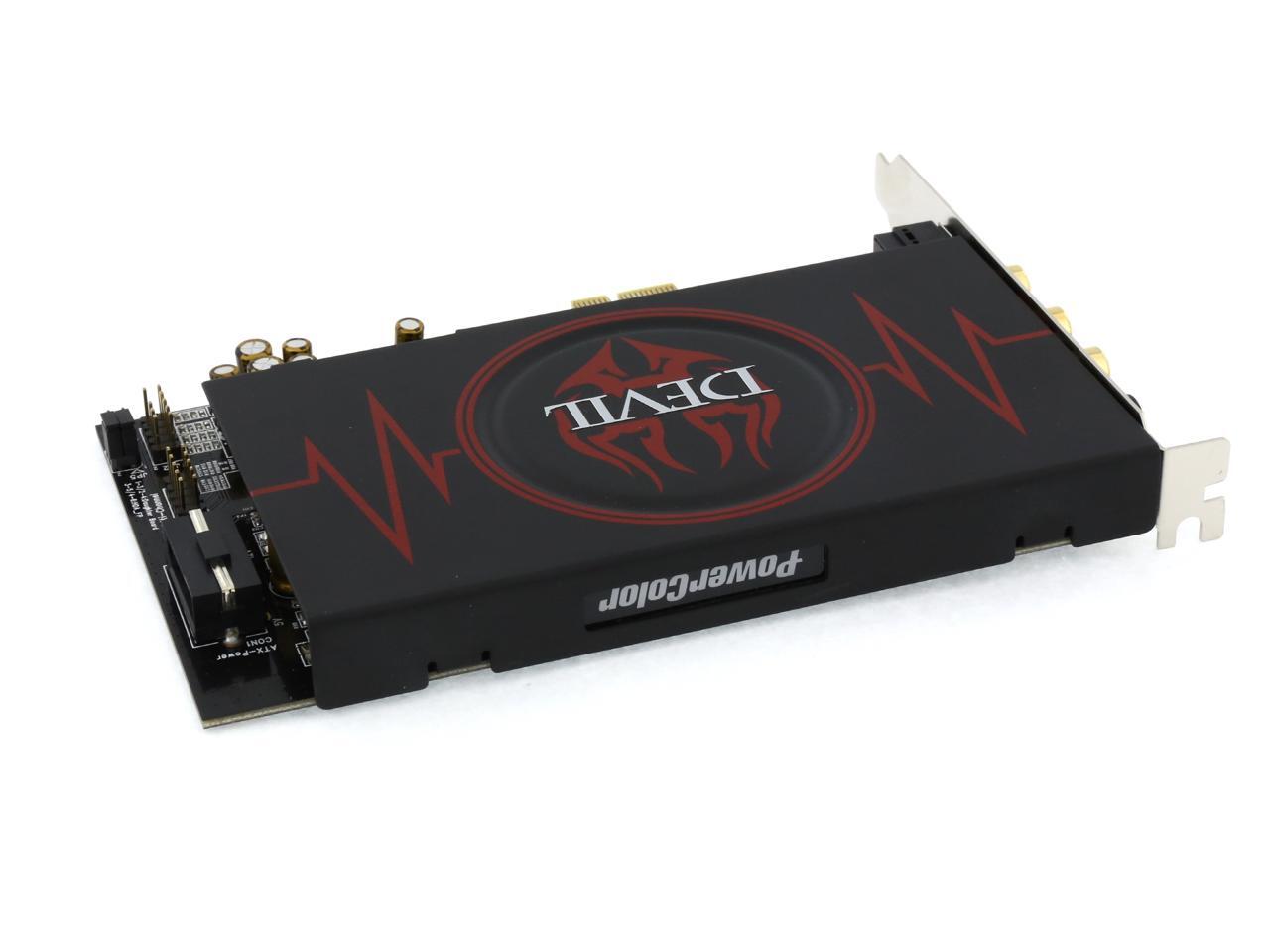

PowerColor DEVIL HDX 7.1 Channels PCI Express x1 44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit Sound Card

Crystal clear Hi-Fi audio

Built-in headphone amplifier

Swappable op-amp sockets

Learn more about the Detailed Specifications
