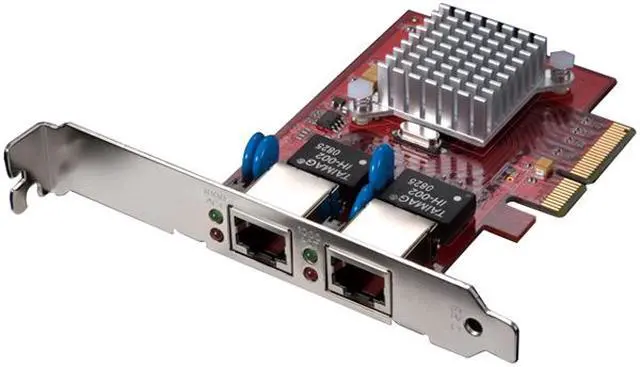

Rosewill RC-401-Dual-EX Two Gigabit Network Server Adapter 10/100/1000Mbps PCI-e x4 2 x RJ45

(9) Write a Review
  • 10/100/1000Mbps
  • 2 x RJ45
Specs
Reviews (9)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Rosewill RC-401-Dual-EX

Model
Brand Rosewill
Model RC-401-Dual-EX
Details
Standards IEEE802.3, IEEE802.3u, IEEE802.3z
Speed 10/100/1000Mbps
Connectors 2 x RJ45
Interface PCI-e x4
LEDs 2 LEDs per port to indicate for various network activities (1000 and LNK/ACT)
Drivers Supports Mac OS X, Windows 7, XP, 2000, 2003, Linux
On-board Memory Configurable 96 KB deep buffer for each link
Wake On LAN Yes
Features
Features The adapter provides two RJ-45 Ports fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet) networking of transfer rate up to 1000 Mbps.
RSS Hash Calculation and QoS (IEEE 802.1p) support for client and server application
Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
Compliant with PCI Express Specification, revision 1.0a
4-lane 10Gbps PCI Express host interface
Low Profile PCI Form Factor
Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)
RJ-45 Port offer high speed transmission over CAT 5 UTP cable
2 LEDs per port to indicate for various network activities (1000 and LNK/ACT)
Configurable 96 KB deep buffer for each link
Jumbo Frame Buffer
Automatic MDI / MDIX Crossover at all speeds
IP, TCP, UDP Checksum Offload and TCP segmentation offload / large-send support
Supports Full Duplex flow control (IEEE 802.3x)
Supports IEEE 802.1Q VLAN insertion and removal
Descriptor Bursting and caching
Interrupt Moderation
Wake On Lan Power Management support
SMBus V2.0 compliant
Supports Mac OS X, Windows XP, 2000, 2003, Linux
Includes 2 Brackets (Low profile PCI and Regular size PCI Brackets)
Fully RoHS compliant
Packaging
Package Contents Gigabit LAN Host Adapter
User's Manual
Driver CD
