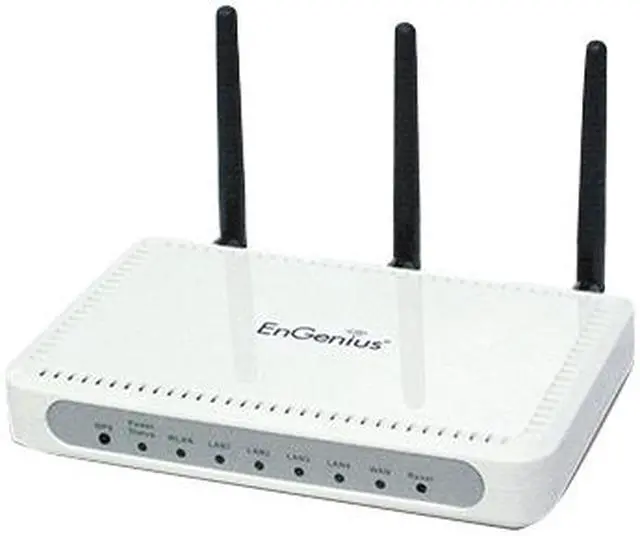

EnGenius ESR-9710 300Mbps 10/100 WAN 4 10/100/1000 LAN Gigabit Router IEEE 802.11b/g, IEEE 802.11n Draft

(12) Write a Review
  • IEEE 802.11b/g, IEEE 802.11n Draft
  • Up to 300Mbps Wireless Data Rates
Specs
Reviews (12)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EnGenius Technologies ESR-9710

Model
Brand EnGenius
Model ESR-9710
Details
Standards IEEE 802.11b/g, IEEE 802.11n Draft
Network Protocols DHCP Server
Static IP
DNS
UPNP

Static IP
DHCP Client
PPPoE
PPTP
Clone MAC
DNS Relay
DDNS-8 Verified Services

NAT/ NAPT
Static Routing- RIPv2
Dynamic Route
Virtual server mapping
IP address mapping
Port Forwarding
Port Triggering
Device Management Configuration: Web-based configuration (HTTP)
Firmware Upgrade: Upgrade firmware via web-browser

Administrator Setting:
Administrator password change
Idle time out

Reset Setting:
Reboot
Reset to Factory Default

System monitoring:
Status and Statistics, Time Zone & NTP Client, Event Log, Email Alarm
Security 64/128 bit WEP Encryption
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
Wi-Fi Protection Setup (WPS)
Auto Channel Selection
Support 802.1x authenticator, 802.11i (WPA/WPA2, AES)

Firewall:
Blocking Ping
ICMP Bolcking
SPI (Stateful Packet Inspection)
Rule Based (IP Address Ranges, Port Ranges & Schedule)
DMZ (Demilitarized Zone) Host

Policy Based Parental Controls:
Time Based Internet Access
Port Range / Service Filtering
Internet Domain Restriction
Dynamic URL Filtering (OEM subscription service)
WPA WPA2
WAN Ports 1 x 10/100M WAN; 4 x 10/100/1000M LAN
LEDs Power/ Status
WAN (Internet connection)
LAN1~LAN4 (10/100/1000Mbps)
WLAN (Wireless Connection)
Wireless Data Rates Up to 300Mbps
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Frequency Band 2.4 GHz - 2.484 GHz
Antenna External Antenna
Channels 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)
Transmitted Power 2.412~2.472G(IEEE802.11b): 19dBm @1~11Mbps
2.412~2.472G(IEEE802.11g): 19 dBm @6Mbps; 16 dBm @54Mbps
2.412~2.472G(IEEE802.11N): 20 dBm MCS 8; 16 dBm MCS 15
Receiver Sensitivity 2.412~2.472G(IEEE802.11b) (1Rx): -93dBm @ 1Mbps; -91dBm @ 11Mbps
2.412~2.472G(IEEE802.11g) (2Rx): -92dBm @ 6Mbps; -79dBm @ 54Mbps
2.412~2.472G(IEEE802.11N) (2Rx): -90 dBm MCS 8; -70 dBm MCS 15
Interface Ethernet Port
VPN support IPSec, L2TP, and PPTP VPN pass-through
Power Supply 90 to 240 VDC ± 10% (depends on different countries)
Wireless Adapter included No
Dimensions 6.5" x 4.3" x 1.0"
Weight 0.65 lbs.
Temperature Operating: -0°C to 50°C (32F to 122F)
Humidity 15%~95% Typical (Non-condensing)
Features
Features IEEE 802.11n draft Compliant and backward compatible with 802.11b/g
Supports DNS/ DDNS
Supports NAT (Network Address Translation)/NAPT
Hide SSID
Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI
WDS (Wireless Distribution System)
Universal Plug and Play (UPnP)
Filter Scheduling
Real time alert
Web configuration
Additional Information
First Listed on Newegg November 14, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
