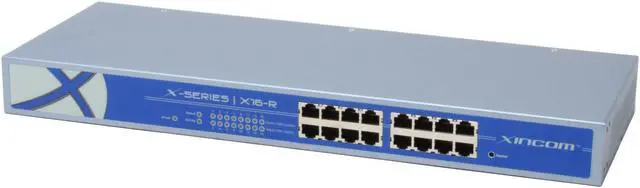

XiNCOM X16-R 80000 Simultaneous Sessions 90 Mbps WAN Ports: 2-8 RJ-45 ports (8 maximum) 10/100 Mbps LAN Ports: 8-14 RJ-45 ports (14 maximum),10/100 Mbps Multi-WAN Broadband Firewall & Gateway

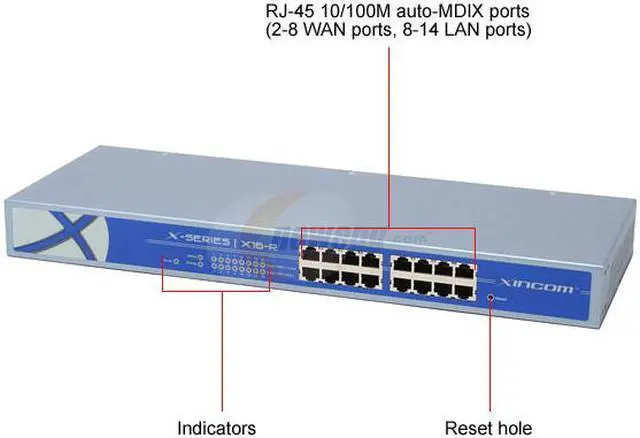

  • 2-8 ports (8 maximum) 10/100 Mbps RJ-45 Auto-MDI/MDIX; 802.3/802.3u WAN Ports
  • 8-14 ports (14 maximum) 10/100 Mbps RJ-45 Auto-MDI/MDIX; 802.3/802.3u LAN Ports
Specs
Reviews (1)

Learn more about the XiNCOM X16-R

Model
Brand XiNCOM
Model X16-R
Details
Standards IEEE 802.3, IEEE 802.3u
Protocols Firewall:
Maximum Thoughput: 90 Mb/sec
Maximum Conncurrent Sessions: 80,000
NAPT (Network Address Port Translation)
DoS (Denial of Service)
Access Control by Group
Ping to Death
Port Scan
SPI (Stateful Packet Inspection)
ICMP Filter for WAN
Packet Filter
URL Block (black & white listing)
Session Limit
System Filter Exception
QoS (Quality of Service)

Network: TCP/IP, HTTP, DHCP, PPP, UPAP,Multi-session PPPoE, ARP Proxy
Routing: Static Route, RIP I & II
Connection: Static/Dynamic IP, PPPoE, & PPTP
Speed 10/100Mbps
Security NAT, UPAP, CHAP
WAN Ports 2-8 ports (8 maximum)
10/100 Mbps RJ-45
Auto-MDI/MDIX; 802.3/802.3u
LAN Ports 8-14 ports (14 maximum)
10/100 Mbps RJ-45
Auto-MDI/MDIX; 802.3/802.3u
LEDs One (1) Power LED for power indication
WAN (Link/Act) LEDs for WAN port status
LAN (Link/Act) LEDs for LAN port status
Temperature 0°C ~ 40°C (32°F ~ 104°F)
Features
Features Load Balancing & Backup:
Auto Failover Connection
Outbound Load Balance by:
least load:
Byte
Packet
Session
IP Address
auto-learning
priority
round robin
weight round robin

Management & Security:
Management via WAN & LAN port
web based remote management via HTTP
SNMP
Email Alert
Syslog
Admin passwords
Authentication with UPAP & CHAP for PPPoE

Firmware Upgrade:
HTTP web based download
TFTP download

Application
Support MSN & Netmeeting
Support with H.323 VoIP products
Multi-session PPPoE
SMTP bind
UPnP
Virtual server
Multi-DMZ
Dynamic DNS
NAT status & connection list & alias
MTU changeable for WAN
Dial-on-demand & Auto-disconnect
MAC address clone
Transparent Bridge Mode
DNS Loopback
Any IP on LAN

Multiple WAN Ports and High Availability
Smart Load Balancing
QoS (Quality of Service)
Stateful Packet Inspection Firewall
Access Filter
Advanced NAT Features
Virtual Servers
Easy Setup & Management
Dimensions & Weight
Dimensions 17.3" x 5.6" x 1.7"
Packaging
Package Contents X16-R
Resource Disk
Rack mount kit
Power Cord
Screws
Other Accessories
Additional Information
Date First Available September 27, 2006
