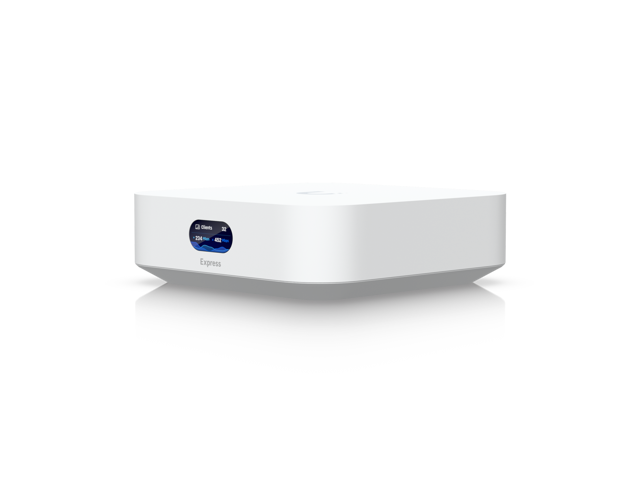

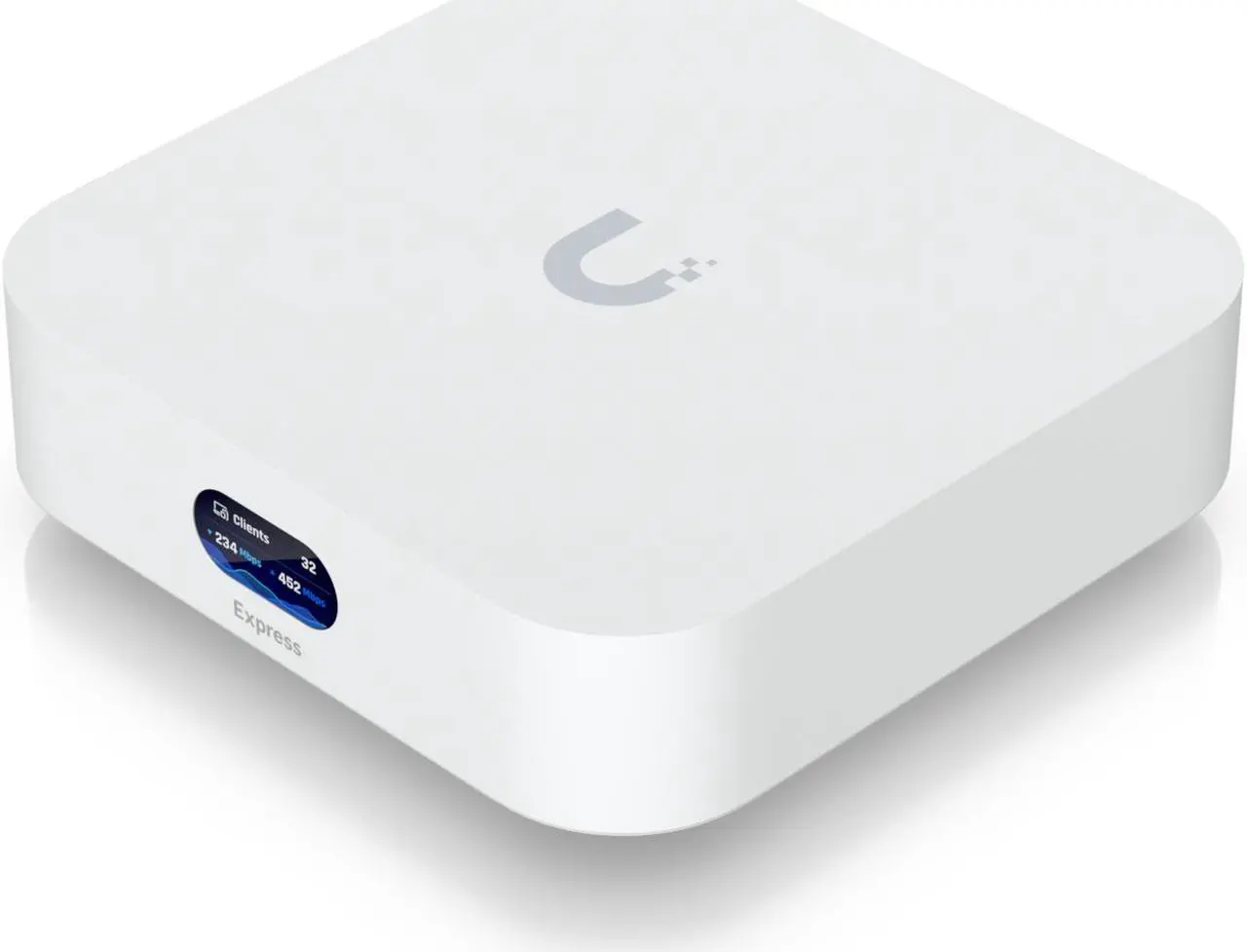

Ubiquiti UniFi Express (UX)

Impressively compact Cloud Gateway and WiFi 6 AP that runs UniFi Network. Powers an entire network or simply meshes as an AP.
Built-in WiFi 6 AP
140 m² (1,500 ft²) single-unit coverage
50+ connected WiFi devices*

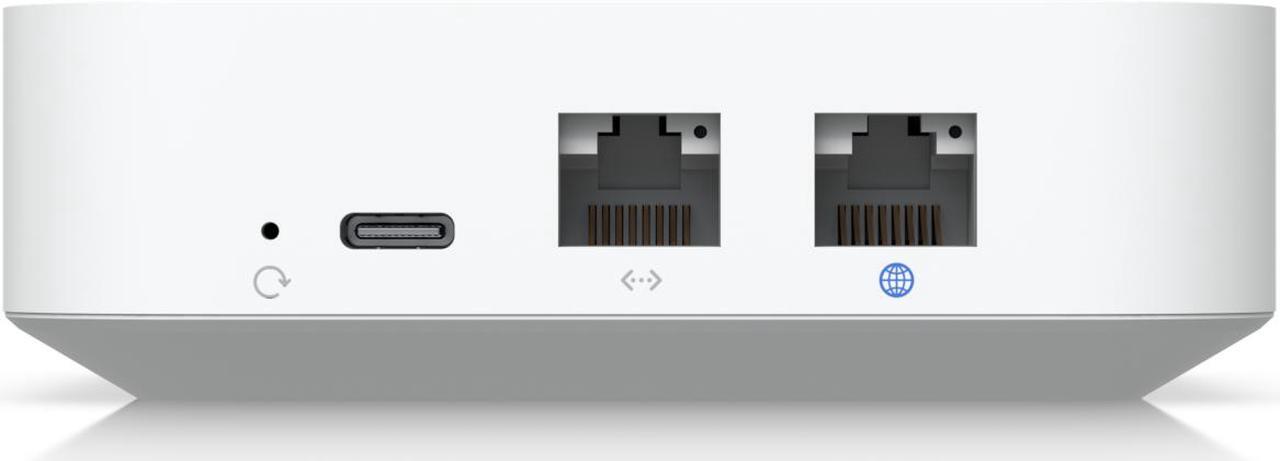

(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network

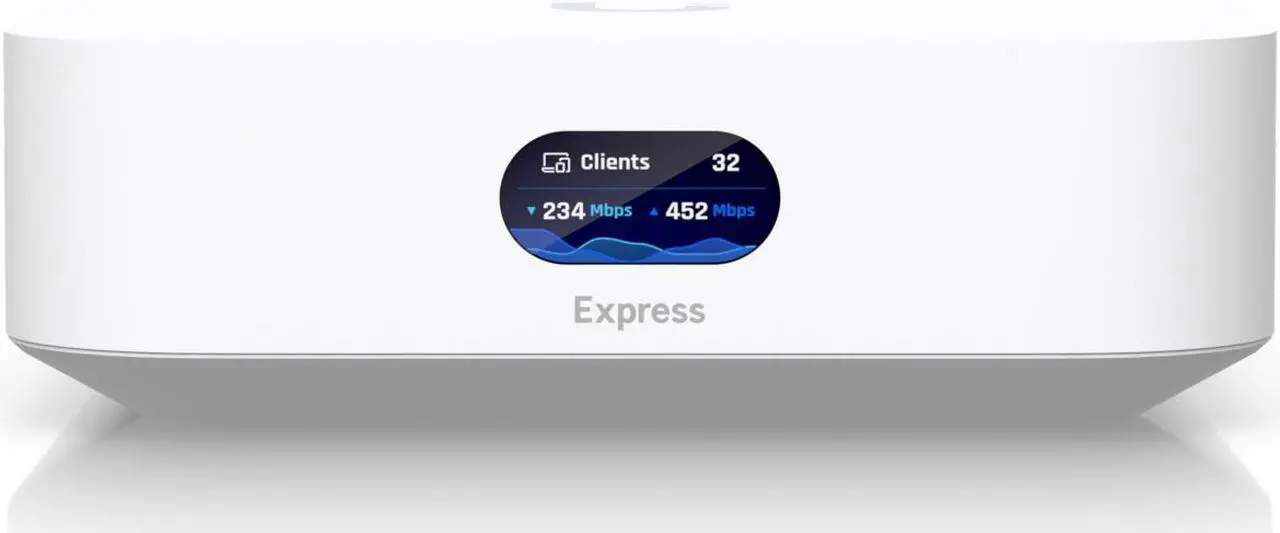

0.96" LCM status display
Manages up to four additional UniFi Network devices when operated as a gateway
Managed with UniFi Network 8.0.7 and later
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews (1)

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Ubiquiti Networks UniFi Express

Details
Type	Wired + Wireless
Form Factor	Desktop
Standards	WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
Security	Stateful Firewall Application-Aware Layer 7 Firewall DPI & Traffic Identification Content Filtering Ad Blocking
Processor	Dual-core ARM® Cortex®-A53 at 1 GHz
Ports	2 x 1GbE RJ45
Simultaneous Sessions	50
VPN	Yes
Throughput	573.5 Mbps-2.4Gbps
Button	(1) Factory-reset
Certifications	CE, FCC, IC
Power Input	Power Method: USB type C (5V DC/3A) Power Supply: USB type C (5V DC/3A) (Adapter included) Supported Voltage Range: 100—240V AC
Max Power Consumption	10 W

Features
Features	Hardware Management interface Ethernet Bluetooth Networking interface LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port Power method USB type C (5V DC/3A) Max. power consumption 10W Max. TX power 2.4 GHz 5 GHz 22 dBm 25 dBm MIMO 2.4 GHz 5 GHz 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) Throughput rate 2.4 GHz 5 GHz 573.5 Mbps 2.4 Gbps Antenna gain 2.4 GHz 5 GHz 4 dBi 5.15 dBi Antennas (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna LCM display 0.96" status display Performance Internet quality and outage reporting Next-generation security Application-aware firewall rules Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall Advanced networking License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Dimensions & Weight
Dimensions	98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight	302 g (10.7 oz)

Additional Information
First Listed on Newegg	August 06, 2024
