Brand | SONICWALL |
---|---|
Series | TZ 470W |
Model | TZ 470W - 3& Free (3Y APSS + 1Y CSE) |
Part Number | 03-SSC-3016 |
Type | Wireless |
---|---|
Form Factor | Desktop |
Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
Protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
Security | Security Services Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection |

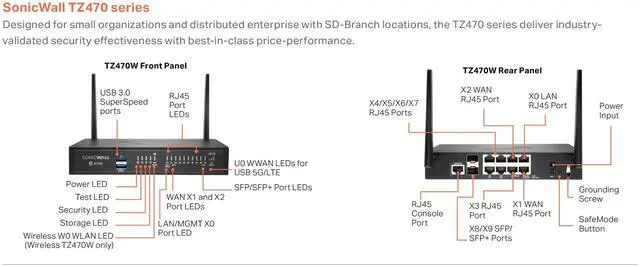

Ports | 8x1GbE, 2x2.5GbE, 2 USB 3.0, 1 Console |
VPN | Site-to-site VPN tunnels: 150 IPSec VPN clients (maximum:) 5 (200) SSL VPN licenses (maximum): 2 (150) Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft®, Windows 10 NetExtender: Microsoft®, Windows 10, Linux Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10 Firewall / VPN Performances Firewall inspection throughput: 3.5 Gbps Threat prevention throughput: 1.5 Gbps Application inspection throughput: 2 Gbps IPS throughput: 2 Gbps Anti-malware inspection throughput: 1.5 Gbps TLS/SSL inspection and decryption throughput (DPI SSL): 600 Mbps IPSec VPN throughput: 1.5 Gbps Connections per second: 12,000 Maximum connections (SPI): 1,000,000 Maximum connections (DPI): 250,000 Maximum connections (DPI SSL): 35,000 |
Certifications | FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware |
Compliance | FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, CB, Mexico CoC by UL, WEEE, REACH, ANATEL |
Power Input | 100 - 240 VAC, 50-60 Hz, 3A |
Max Power Consumption | 21.98W |
Features | Integrated Wireless Standards: 802.11a/b/g/n/ac Wave 2, WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS Frequency bands: 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz Operating channels 802.11a: 12 802.11b/g: 1-11 802.11n (2.4 GHz): 1-11 802.11n (5 GHz): 36-48/149-165 802.11ac: 36-48/149-165 Transmit output power: Based on the regulatory domain specified by the system administrator Transmit power control Data rates supported: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15, 30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel Modulation technology spectrum: 802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM) Licenses: 3 years of Advanced Protection Services Suite (APSS): This bundle includes essential bundle services along with cloud management and cloud-based reporting for 7 days. 1 year of Cloud Secure Edge (CSE): Delivers simple, secure zero-trust access to private and internet resources for all your employees and third parties, regardless of their network location. |
---|
Dimensions | 3.5x13.5x19 (cm) 1.8x5.3x7.5 (in) |
---|---|
Weight | 0.87 kg / 1.92 lbs |
