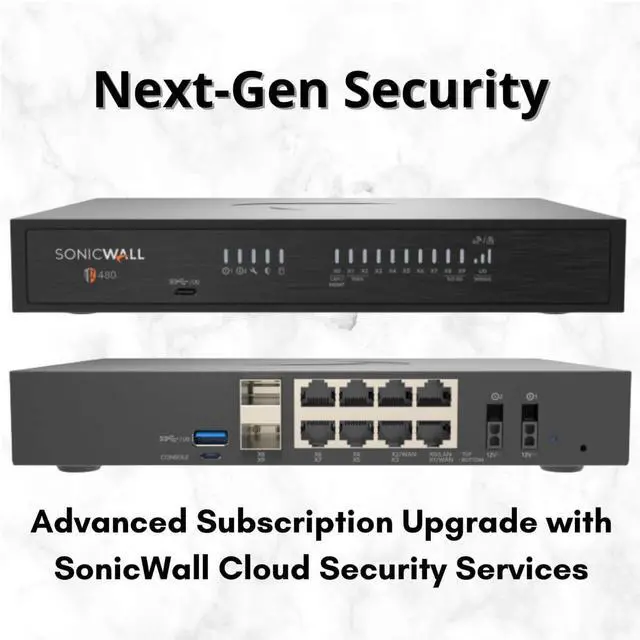

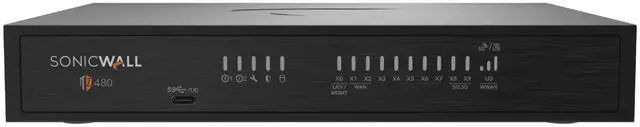

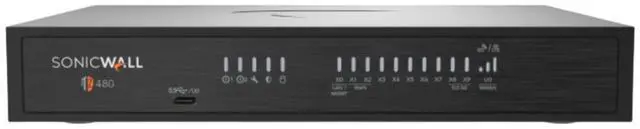

SonicWall TZ 480 Firewall (Gen 8) w/ Secure Upgrade Plus (3-Year Advanced Protection Security Suite) and 1 Year CSE | 03-SSC-6986

3 & FREE - Purchase eligible 3-year APPS or MPSS, get a FREE firewall

Be the first to review this product...
  • TZ380
  • TZ480
  • TZ680
  • Hardware Only
  • High Availability
  • Secure Upgrade Plus (Appliance + 2Y APSS)
  • Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE
  • Total Secure (Appliance + 1Y APSS)
  • What's included: 3-years of Advanced Protection Services Suite (APSS,) 1 unit of TZ 480 Gen 8 next-generation firewall and 1-year of Cloud Secure edge.
  • Designed for small organizations and distributed enterprise with SD-Branch locations, the TZ480 series deliver industry-validated security effectiveness with best-in-class price-performance.
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

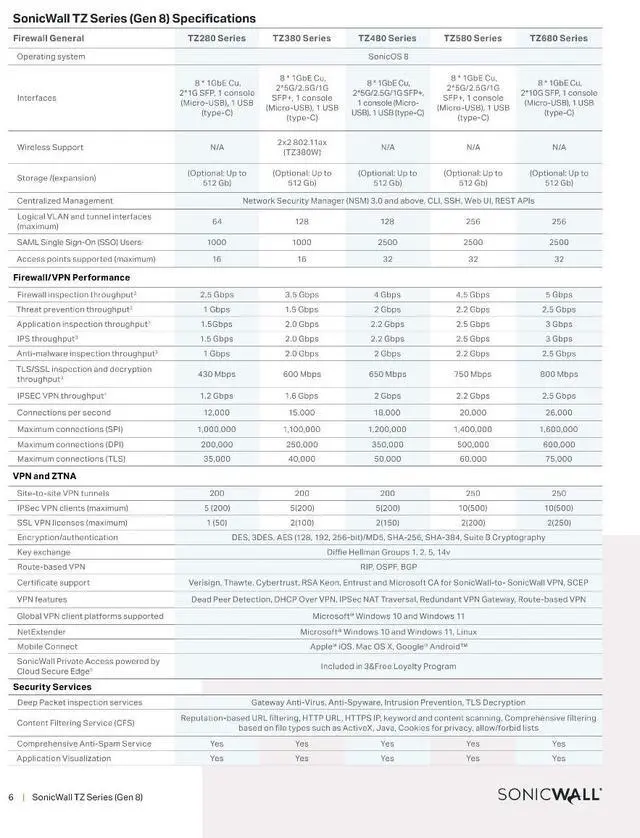

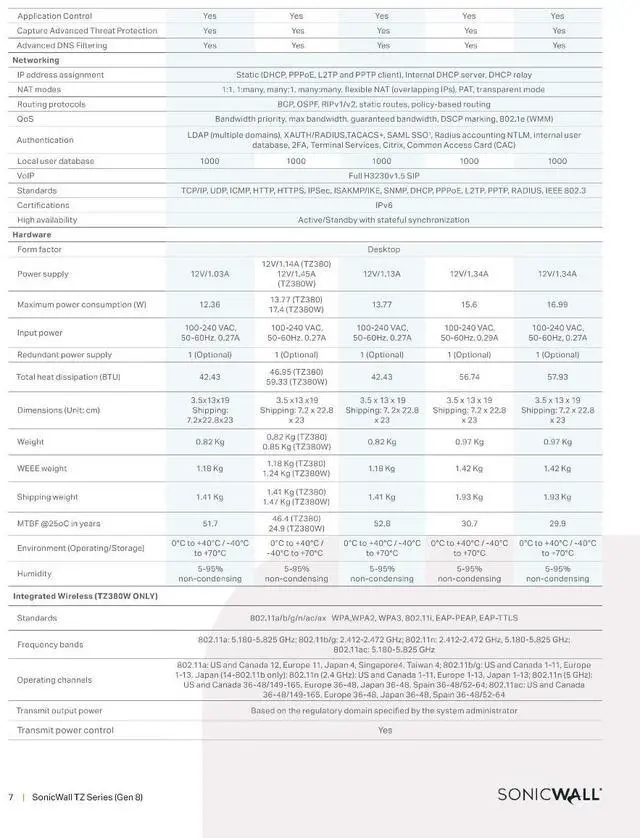

Learn more about the SonicWall TZ480 - 3& Free (3Y APSS + 1Y CSE)

Model
Brand SONICWALL
Series TZ480
Model TZ480 - 3& Free (3Y APSS + 1Y CSE)
Part Number 03-SSC-6986
Details
Type Wired
Form Factor Desktop
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
Security Deep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System Memory Optional: Up to 512 Gb
Ports 8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPN Firewall/VPN Performance

Firewall inspection throughput: 4 Gbps
Threat prevention throughput: 2 Gbps
Application inspection throughput: 2.2 Gbps
IPS throughput: 2.2 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput: 650 Gbps
IPSEC VPN throughput: 2 Gbps
Connections per second: 18,000
Maximum connections (SPI): 1,200,000
Maximum connections (DPI): 350,000
Maximum connections (TLS): 50,000

VPN and ZTNA

Site-to-site VPN tunnels: 200
IPSec VPN clients: 5(200)
SSL VPN licenses (maximum): 2(150)
Encryption/authentication: AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography
Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN: RIP, OSPF, BGP
Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported: Microsoft® Windows 10 and Windows 11
NetExtender: Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect: Apple® iOS, Mac OS X, Google® Android™

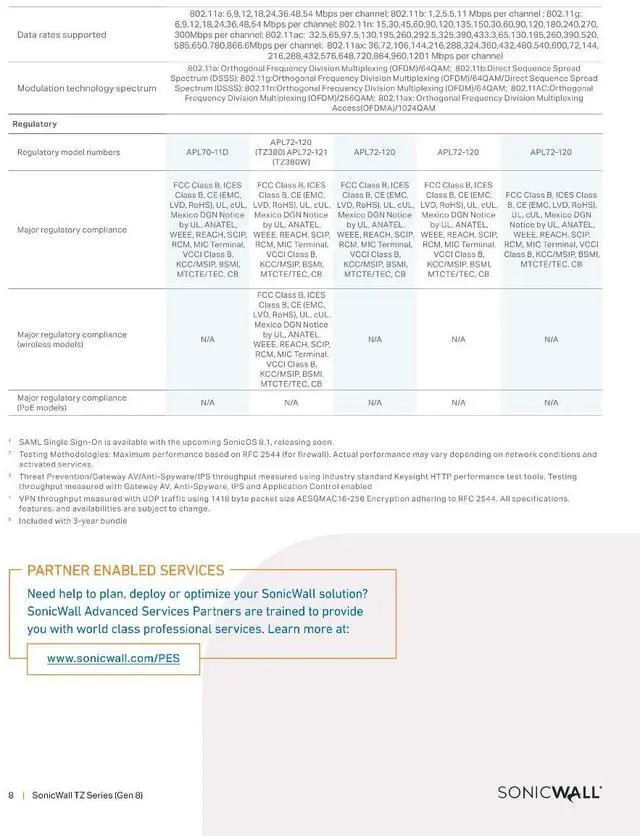

Certifications IPv6
Compliance FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input 100-240 VAC, 50-60Hz
Max Power Consumption 13.77 W
Features
Features General
Operating system: SonicOS 8

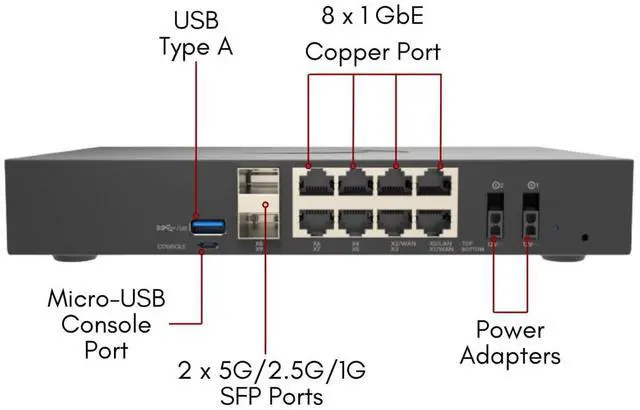

Interfaces: 8 * 1GbE Cu, 2 X 5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 128
SAML Single Sign-On (SSO) Users: 2500
Access points supported (maximum): 32

Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols: BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication: LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database: 1000
VoIP: Full H3230v1.5 SIP
Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications: IPv6
Additional Information
First Listed on Newegg August 19, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within - Contact Manufacture for Assistance
  • Return for replacement - Contact Manufacture for Assistance
  • This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
