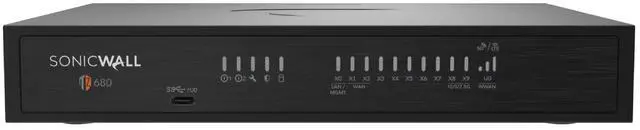

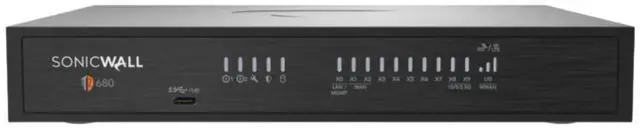

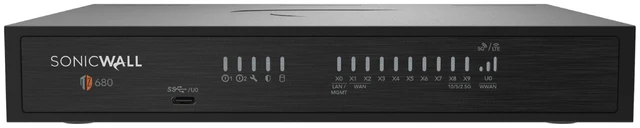

TZ680 Series
Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ680 delivers industry-validated security effectiveness with best-in-class price-performance.
Highlights
- SD-Branch ready
- Secure SD-WAN capability
- SonicExpress App onboarding
- Zero-Touch Deployment
- SonicWall Unified Management ready
- Centralized, simplified management via Network Security Manager (NSM)
- SonicWall Switch, SonicWave Access Point and Capture Client integration
- Redundant power
- DNS security
- Reputation-based Content Filtering Service (CFS 5.0)
- Wi-Fi 6 firewall management
- Network access control integration
Gen 8 TZ Series
SonicWall Gen 8 Firewalls offer multiple key benefits including higher throughput and IPS performance, persistent performance, and AI-powered insights and automation.
TZ 680
Firewall/VPN Performance
Firewall Inspection Throughput
5.00 Gbps
Application Inspection Throughput
3 Gbps
IPS Throughput
3 Gbps
Threat Prevention Throughput
2.5 Gbps
VPN Throughput
2.5 Gbps
Maximum Connections
1,600,000
New Connections/Sec
26,000

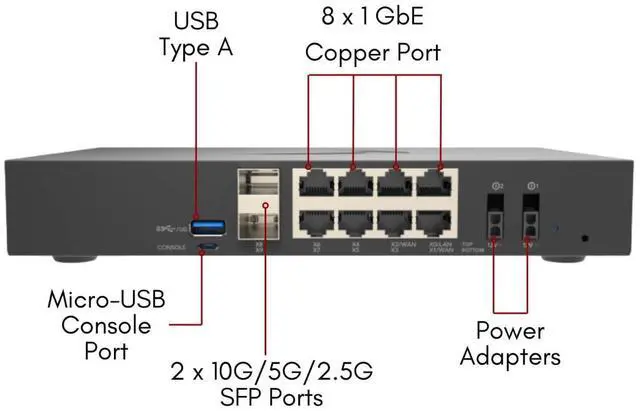

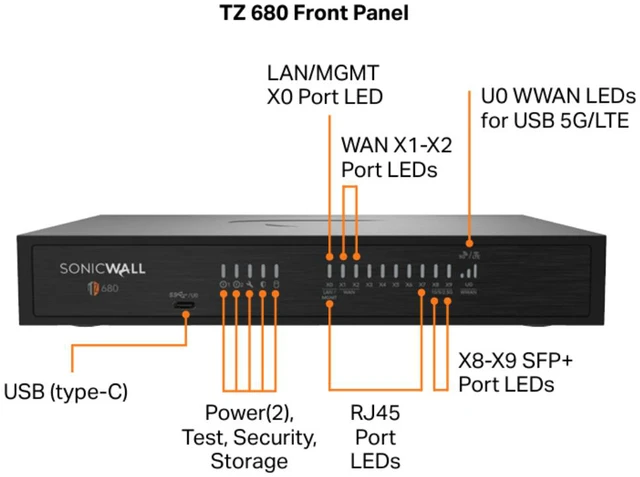

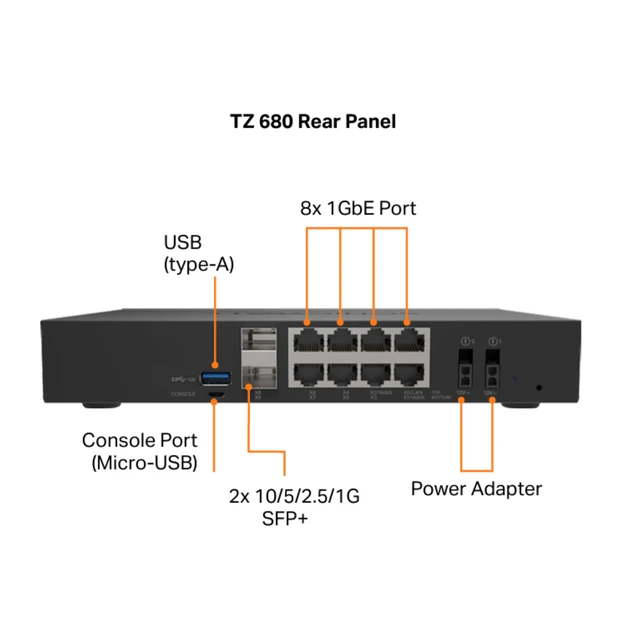

Interfaces

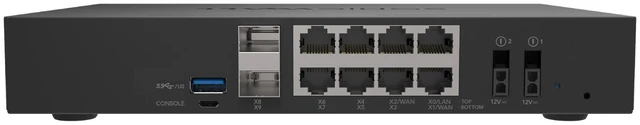

Ethernet Ports
8x-1GbE Cu
USB Ports
1 console (Micro-USB), 1 USB (type-C)
SFP/SFP+ Ports
2*10G/5G/2.5/1G SFP
Expansion Slot
Storage - Up to 512 GB
Connectivity
Site-to-Site VPN Tunnels
250
IPSec VPN Clients (Maximum)
10 (500)
SSL VPN NetExtender Clients (Maximum)
2 (250)
VLAN Interfaces
256
TZ 670
Firewall/VPN Performance
Firewall Inspection Throughput
5.00 Gbps
Application Inspection Throughput
3.0 Gbps
IPS Throughput
3.0 Gbps
Threat Prevention Throughput
2.50 Gbps
VPN Throughput
2.1 Gbps
Maximum Connections
1500000
New Connections/Sec
25000
Interfaces
Ethernet Ports
8x1-GbE
USB Ports
2 USB 3.0
SFP/SFP+ Ports
2x 10G
Expansion Slot
Storage - up to 256 GB with 32GB included
Connectivity
Wireless WAN Support
WWAN USB module support (5G/LTE/4G/3G)
Simplified licensing for ease of license management
| Features | Hardware Only | APSS | MPSS |
| 24x7 Support | Add-On* | ✓ | ✓ |
| - Centralized Management & Orchestration | Included with 24x7 Support | ✓ | ✓ |
| Stateful firewall and Stateful HA | ✓ | ✓ | ✓ |
| SD-WAN & Advanced Routing** | ✓ | ✓ | ✓ |
| Application Control | Add-On | ✓ | ✓ |
| Intrusion detection and prevention | Add-On | ✓ | ✓ |
| Content & Reputation Based filtering | Add-On | ✓ | ✓ |
| Capture ATP Sandboxing | Add-On | ✓ | ✓ |
| DNS Filtering-Advanced | Add-On | ✓ | ✓ |
| Advanced Reporting and Analytics*** | Add-On | 7-Day, Extendable | 30-Day, Extendable |
Embedded Firewall Warranty by  |
Up to USD$100,000 | Up to USD$200,000 | |
| Firewall Configuration Management | ✓ | ||
| After hours Critical Support | ✓ | ||
| Managed Firewall & Enhanced Support | ✓ |
* Add-On denotes services that are available via add-on SKUS
** Advanced Application Routing requires Application signatures and GAV/IPS service
**** Add-On or extendable NSM SKUs available for 7, 30, 90, and 365 Days
APSS
Advanced Protection Service Suite
Includes Capture Advanced Threat Protection with RTDMI Technology, Gateway Anti-Virus, Intrusion Prevention and Application Control, Content Filtering Service, Comprehensive Anti-Spam Service, Deep packet inspection of TLS/SSL-encrypted traffic (DPI-SSL), 24x7 Support, Cloud Management, Cloud-based Reporting for 7 Days and optional Premier Support.
MPSS
Managed Protection Service Suite
Includes all services in Advanced Protection plus extended 30-Day Reporting and Analytics, firewall configuration management, and after hours critical support. The services are delivered by SonicWall Managed Service team.
