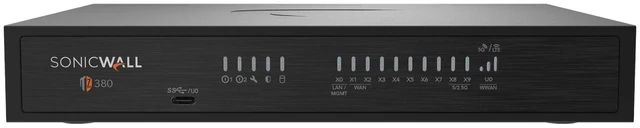

SonicWall TZ380 Firewall (Gen 8) w/ Total Secure (1-Year Essential Protection Security Suite) | 03-SSC-6944
- 3.5 GBPS FIREWALL INSPECTION THROUGHPUT: Built on the Gen 8 SonicOS 8 architecture, the TZ380 delivers 3.5 Gbps firewall inspection, 2 Gbps application inspection and IPS throughput, 1.5 Gbps threat prevention throughput, and 1.6 Gbps IPSec VPN throughput for small organizations and lean branches.
- 1-YEAR ESSENTIAL PROTECTION SECURITY SUITE (EPSS): Includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, 24x7 Support with firmware updates And Cloud Management with 7-Day Alerting, Basic Reporting.

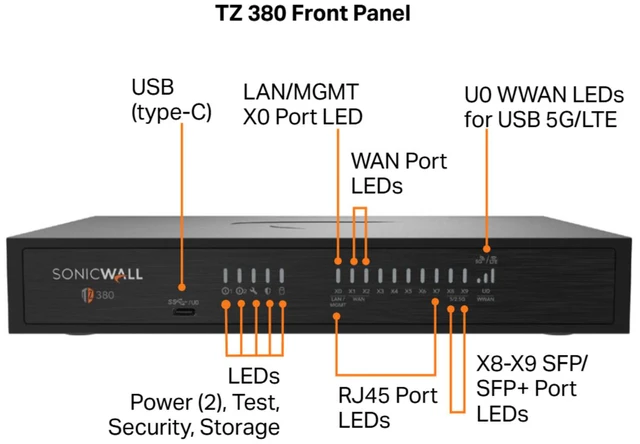

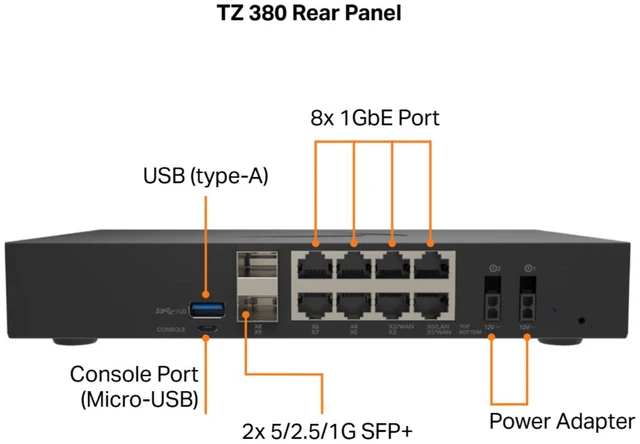

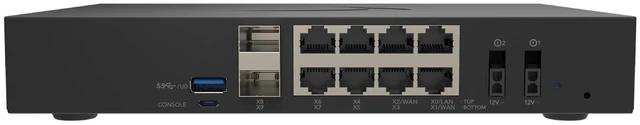

- 8x 1GBE + 2x MULTI-GIG 5/2.5/1G SFP+ UPLINKS WITH USB-C FOR 5G/LTE FAILOVER: 8 copper 1GbE ports plus 2 flexible 5G/2.5G/1G SFP+ uplinks, a Micro-USB console port, and a USB Type-C port support an optional 5G/LTE USB WWAN card for cellular failover.
- UP TO 1.1 MILLION SPI CONNECTIONS, 200 SITE-TO-SITE VPN TUNNELS: Handles up to 1,100,000 SPI connections, 250,000 DPI connections, and 200 site-to-site VPN tunnels, with 5 included IPSec VPN clients (expandable to 200) and 2 SSL-VPN licenses (expandable to 100).
+
+
Learn more about the SonicWall TZ 380 - Total Secure (1Y EPSS)
| Brand | SONICWALL |
|---|---|
| Series | TZ 380 |
| Model | TZ 380 - Total Secure (1Y EPSS) |
| Part Number | 03-SSC-6944 |
| Type | Wired |
|---|---|
| Form Factor | Desktop |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
| Security | Deep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection Advanced DNS Filtering |
| System Memory | Optional: Up to 512 Gb |
| Ports | 8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP |
| VPN | Firewall/VPN Performance Firewall inspection throughput: 3.5 Gbps Threat prevention throughput: 1.5 Gbps Application inspection throughput: 2.0 Gbps IPS throughput: 2.0 Gbps Anti-malware inspection throughput: 2.0 Gbps TLS/SSL inspection and decryption throughput: 600 Mbps IPSEC VPN throughput: 1.6 Gbps Connections per second: 15,000 Maximum connections (SPI): 1,100,000 Maximum connections (DPI): 250,000 Maximum connections (TLS): 40,000 VPN and ZTNA Site-to-site VPN tunnels: 200 IPSec VPN clients: 5(200) SSL VPN licenses (maximum): 2(100) Encryption/authentication: AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft® Windows 10 and Windows 11 NetExtender: Microsoft® Windows 10 and Windows 11, Linux Mobile Connect: Apple® iOS, Mac OS X, Google® Android™ |
| Certifications | IPv6 |
| Compliance | FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB |
| Power Input | 100-240 VAC, 50-60Hz, 0.27A |
| Max Power Consumption | 13.77W |
| Features | General Operating system: SonicOS 8 Interfaces: 8 x 1GbE Cu, 2*5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C) Storage /(expansion): (Optional: Up to 512 Gb) Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs Logical VLAN and tunnel interfaces (maximum): 128 SAML Single Sign-On (SSO) Users: 1000 Access points supported (maximum): 16 Networking IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols: BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication: LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC) Local user database: 1000 VoIP: Full H3230v1.5 SIP Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications: IPv6 |
|---|
| Dimensions | in cm: 3.5 x13 x19 |
|---|---|
| Weight | in Kg: 0.82 |
| First Listed on Newegg | October 01, 2026 |
|---|
