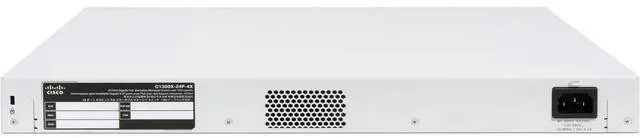

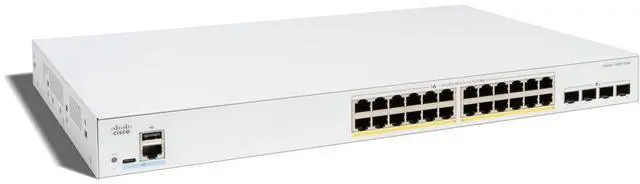

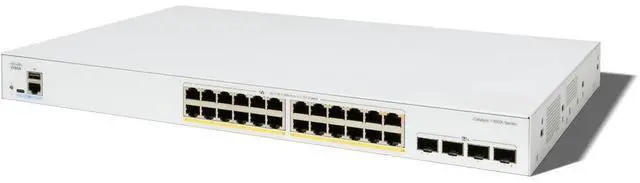

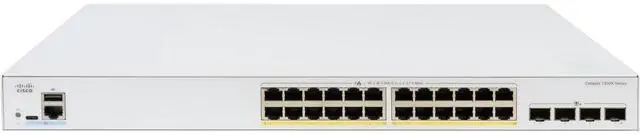

Cisco C1300X-24P-4X Ethernet Switch, 24-port managed Layer 3 switch | C1300X-24P-4X
- Total system ports: 24 x Gigabit Ethernet + 4 x 10G
- Managed, enterprise-class Layer 3 switches designed for small and medium-sized business and branch offices.
- Plug and Play: Provides a simple, secure, unified, and integrated offering to ease new device rollouts or for provisioning updates to an existing network.
- Security: Provides the advanced security features you need to protect your business data and keep unauthorized users off the network.
+
+
Learn more about the Cisco Systems, Inc. C1300X-24P-4X
| Brand | CISCO |
|---|---|
| Series | 1300/X Series |
| Model | C1300X-24P-4X |
| Part Number | C1300X-24P-4X |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
|---|---|
| Network Management Type | Managed |
| Primary Port Type | Total system ports: 24 x Gigabit Ethernet + 4 x 10G RJ-45 ports: 24 x Gigabit Ethernet Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]): 4 x SFP28 (10G Uplink, 25G available for stacking only) |
|---|
| Management Interface | web user interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search. |
|---|---|
| MAC Address Table | up to 32,000 rules |
| Jumbo Frames | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| Packet Forwarding Rate | Packet buffer: 3 MB Capacity in Millions of Packets Per Second (mpps) (64-byte packets): 95.23 |
| PoE | Yes |
|---|---|
| Stackable | Supports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover. PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported. |
| QoS | Priority levels: 8 hardware queues Scheduling: Strict priority and Weighted Round-Robin (WRR) Class of Service: Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP and Class of Service (802.1p/CoS) Rate limiting: Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing Congestion avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization iSCSI traffic optimization: A mechanism for giving priority to iSCSI traffic over other types of traffic |
| Layer | 3 |
| Layer 2 Features | Spanning Tree Protocol: Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 16 instances are supported. Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported Port grouping/link aggregation: Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) Up to 8 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation VLAN: Support for up to 4094 VLANs (4078 – 4094 are for internal usage) simultaneously Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN Auto surveillance VLAN (ASV) Voice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices Multicast TV VLAN: Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) VLAN translation: Support for VLAN one-to-one mapping, in which customer VLANs (C-VLANs) on an edge interface are mapped to service provider VLANs (S-VLANs), and the original C-VLAN tags are replaced by the specified S-VLAN Q-in-Q: VLANs transparently cross a service provider network while isolating traffic among customers |
| Layer 3 Features | IPv4 routing: Wire-speed routing of IPv4 packets. Up to 7168 (Dynamic + Static) IPv4 routes and up to 256 IP interfaces IPv6 routing: Wire-speed routing of IPv6 packets Layer 3 interface: Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface Classless Interdomain Routing (CIDR): Support for CIDR Routing Information Protocol (RIP) v2: Support for RIP v2 for dynamic routing Policy-Based Routing (PBR): Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL) Open Shortest Path First (OSPF): Support for OSPF v2 and v3 (in C1300X SKUs only) DHCP server: Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options DHCP relay at Layer 3: Relay of DHCP traffic across IP domains User Datagram Protocol (UDP) relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
| PoE Ports | 24 x PoE |
|---|---|
| PoE Power Budget | 385W |
| Power | 100-240V 50-60 Hz, internal, universal |
| Max Power Consumption | System power consumption 110V=81.3W 220V=84.6W Power consumption (with PoE) 110V=487W 220V=474W |
| Dimensions | 444.3 x 270 x 43.94 mm (17.49 x 10.63 x 1.73 in ) |
|---|---|
| Weight | 3.96kg (8.73lb) |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|---|
| First Listed on Newegg | March 20, 2026 |
|---|
