Dynatron;A13;Model Number: A13 - Dynatron Corp.
Shop All Dynatron Products

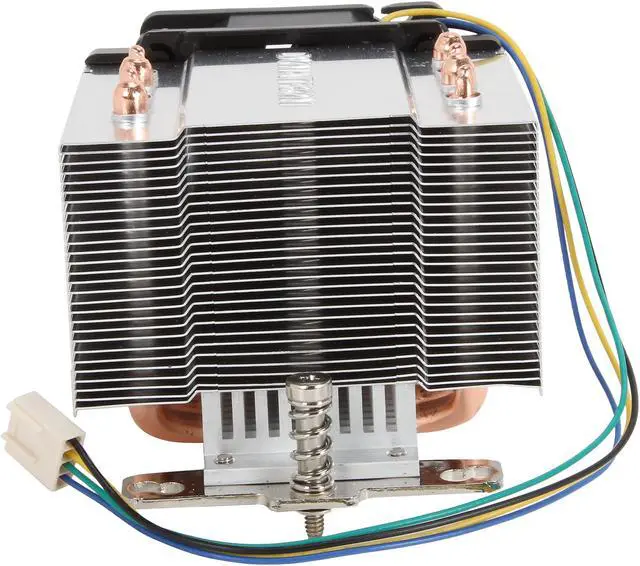

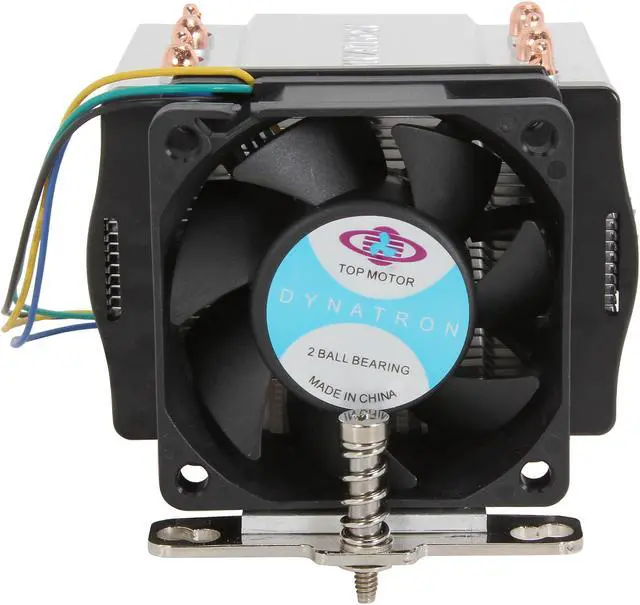

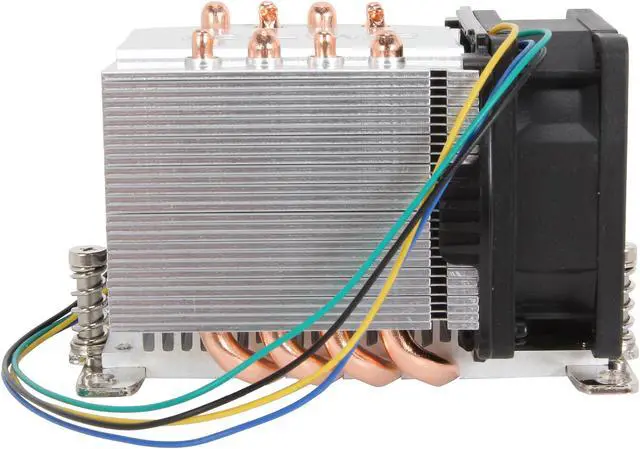

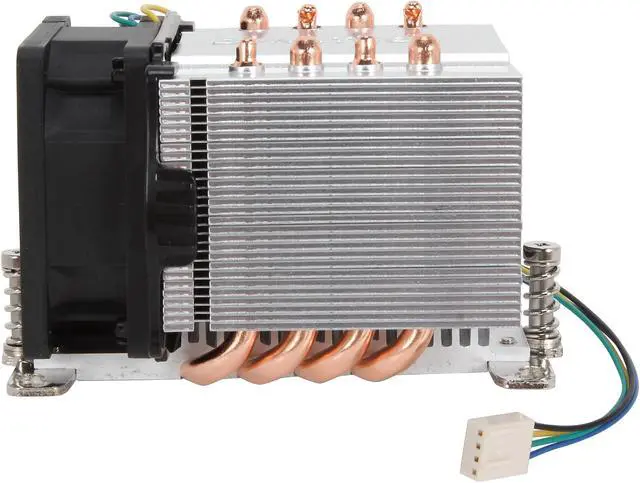

Dynatron A13 60mm 2 Ball CPU Cooler for AMD G34 processors, Socket LGA 1974, 2U server solution up to 140 Watts

(7) Write a Review
  • At Duty Cycle 20%: 1600 RPM
  • At Duty Cycle 50%: 4000 RPM
  • At Duty Cycle 100%: 8000 RPM
  • At Duty Cycle 20%: 8.85 CFM
  • At Duty Cycle 50%: 21.88 CFM
  • At Duty Cycle 100%: 43.75 CFM
  • Aluminum stacked fin with heatpipes directly contact CPU
Specs
Reviews (7)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Dynatron A13

Model
Brand Dynatron
Model A13
Details
Type Fan & Heatsinks
Fan Size 60mm
CPU Socket Compatibility G34 Socket LGA 1974
Bearing Type 2 Ball
RPM At Duty Cycle 20%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPM
Air Flow At Duty Cycle 20%: 8.85 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75 CFM
Noise Level At Duty Cycle 20%: 16.9 dBA
At Duty Cycle 50%: 35.9 dBA
At Duty Cycle 100%: 51.0 dBA
Power Connector 4 Pin
Heatsink Material Aluminum stacked fin with heatpipes directly contact CPU
Fan Mounting Types to Heatsink Horizontal
Dimensions & Weight
Max CPU Cooler Height 67 mm
Fan Dimensions 60 x 60 x 25 mm
Weight 400 g
Features
Features CPU Support: AMD G34 processors, Socket LGA 1974 up to 140 Watts

Solution: 2U&Up

Overall Dimension: 112.0 x 84.0 x 67 mm

Rated Voltage: 12 V

Power:
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 7.2 W

Air Pressure:
At Duty Cycle 20%: 0.708 mm-H2O
At Duty Cycle 50%: 4.425 mm-H2O
At Duty Cycle 100%: 17.701 mm-H2O

Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

*Note:
1. Support CPU Power up to 140 Watts
2. Pre-print thermal compound Shin-Etsu G751
3. RoHS Compliance
4. Backplate is not included.
