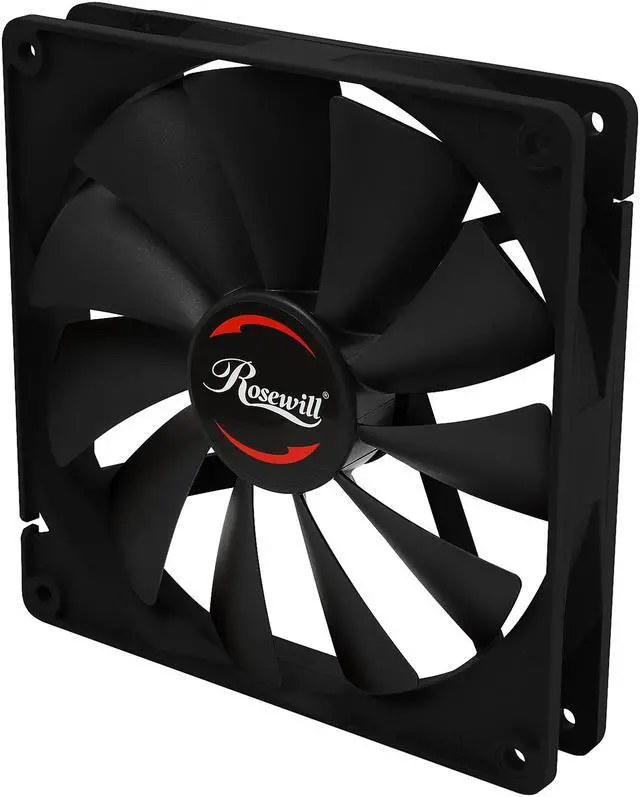

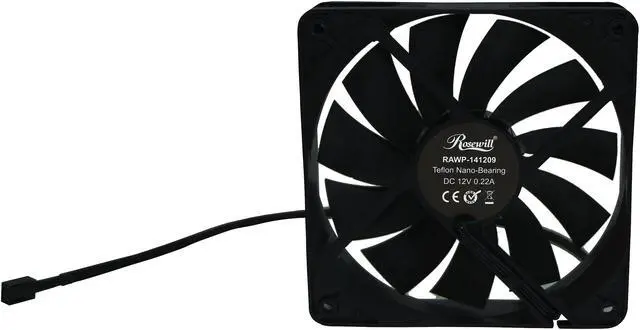

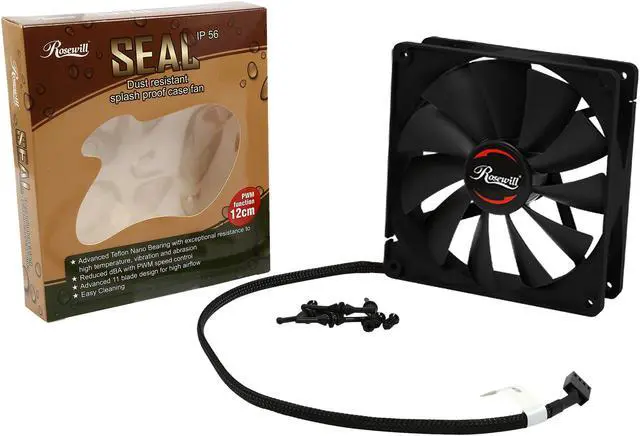

Rosewill Computer Case Fan, 120mm, Seal IP56 Dust Resistant and Splash Proof, PWM Speed Control, Teflon Nano Bearing - RAWP-141209v2
- 120mm Case Fan
- Bearing Type: Teflon Nano Bearing
- PWM (Pulse Width Modulation) Speed Control
- IP56 Dust Resistant & Splash Proof
- 10 - 21.5 dBA
- 500 - 1500 RPM, 64.75 CFM Max.
Overview
Specs
Reviews (39)
Over time, dust and debris builds up on the fan inside your computer case.
This drag greatly reduces the performance and lifetime of your
fan.
A dirty case fan will also shorten your computer system’s lifetime
because
a clogged fan makes a computer run hotter than usual.
Pulse Width Modulation (PWM)
Reduced dBA with PWM speed control. Maximize efficiency with lower energy consumption.
Teflon Nano Bearings (TNB)
Self-lubricating TNB are quieter than other fans because of exceptional resistance to high temperature, vibration, and abrasion (MTBF 200,000 hours)
IP56 (Ingress Protection Rating)
High-level dust and water protected, resulting in an extended lifetime.

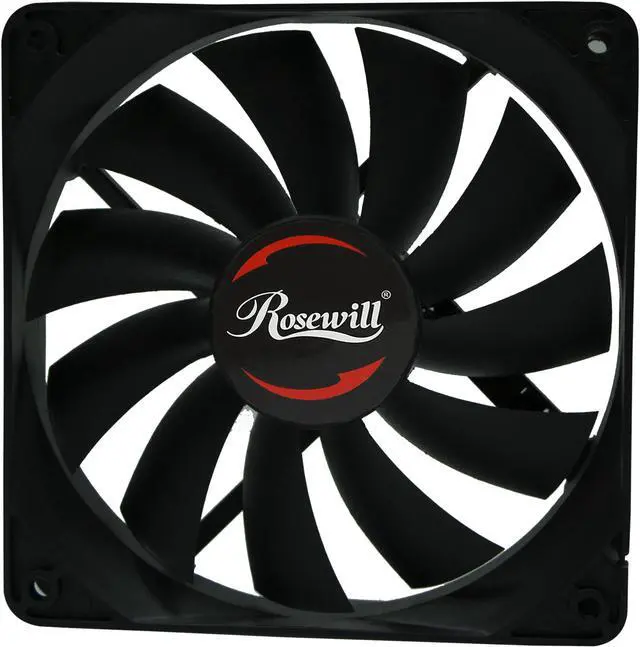

Advanced 11-Blade Design
Advanced 11-blade design enhances the high airflow while reducing noise.
Specifications
| Specifications |  PWM Function 140 mm |
 PWM Function 120 mm |
| Fan Dimensions | 140 x 140 x 25 mm | 120 x 120 x 25 mm |
| Rated Voltage | DC 12V | DC 12V |
| Rated Current | 0.22A | 0.22A |
| Power Consumption | 2.64W | 2.64W |
| Rated Speed | 500 ~1200 RPM ± 10% | 500 ~1500 RPM ± 10% |
| Airflow | 82 CFM | 64.75 CFM |
| Static Pressure | 1.33 mm-H2O | 1.52 mm-H2O |
| Noise Level | 13~ 21.5 dBA | 10~ 21.5 dBA |
| Bearing Type | Teflon Nano Bearings | Teflon Nano Bearings |
| Lifetime L10 (hours/25°C) | 200,000 (MTBF) | 200,000 (MTBF) |
