Enermax Liqmax 120S Aluminum All-in-One Liquid Cooler With 120mm High Static Pressure Fan

Features

• 3D Cold-plate design for better stability and rapid heat conductivity
• Stylish water block with luminous LED LOGO for power-on indication
• Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge
• Precise micro-channel cold plate enlarges the cooling surface
• All-in-one liquid cooling system with maintenance-free pre-filled coolant
• High-pressure airflow fan with smart APS (Adjustable peak speed) control providing 3 peakRPM options (ELC-LM120S-HP)
• Ceramic bearing pump for longer life span and noiseless operation
• FEP tube ensures zero permeability and long-lasting reliability
• Easy-install smart bracket gives perfect contact force with CPU
• Additional screws included for a 2nd fan installation option

Luminous LED Logo for Power-On Indication

Patented Shunt-Channel-Technology (SCT)

1. With SCT design , the cold plate can eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance.

2. When any CPU core is in over clock mode and generates hot spot, SCT design creates the redistribution and remix of coolant flow among individual channels to effectively remove heat surge on the CPU in a extremely timely and efficient manner.

Patented APS PWM Control

Three-Cooling Modes:

*Silent mode: 600 - 1300RPM
*Performance mode: 600 - 2000RPM
*OverClock mode: 600 - 2500RPM

Users can choose the most suitable mode depending on the system application without pushing fan speeds up to the limit. Just gently slide the small switch at the fan hub, and an easy adjustment can be made to suit different cooling performance requirements.

Specifications

Model		ELC-LM120S-HP

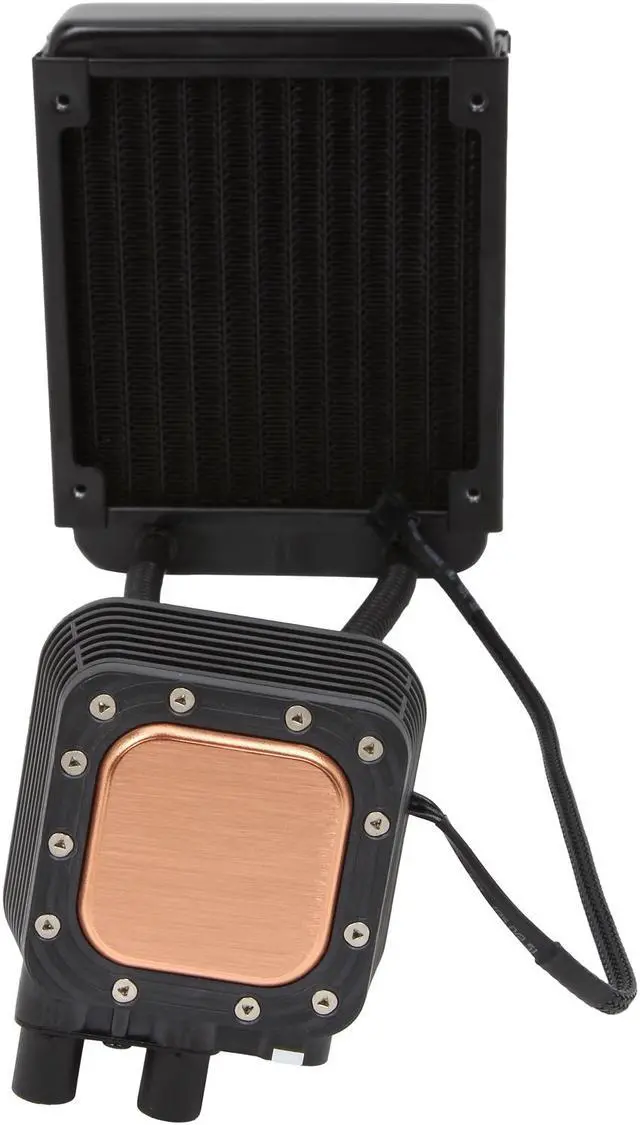

Cold Plate	Material	Copper
Pump	Bearing	Ceramic Bearing
	MTBF	50,000 hours
	Motor Speed	2300RPM
	Rated Voltage	12V
	Rated Current	0.3A

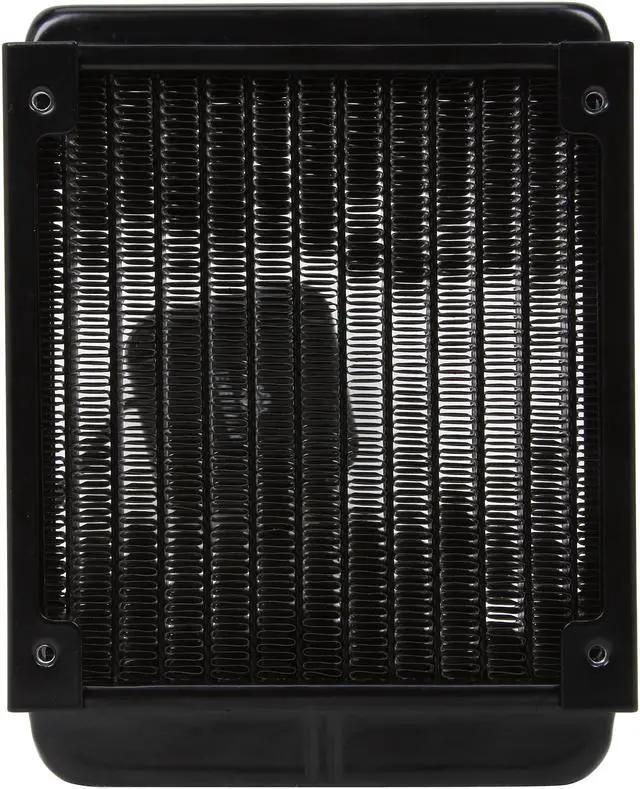

Radiator	Dimensions	6.1 x 4.7 x 1.3 inches (156 x 120 x 32mm)
	Material	Aluminum
Tube	Material	FEP
	Length	12.2 inches (310mm)
Weight (w/o fan)		1.1lbs (505g)
Bracket	Compatibility	Intel® LGA 775 / 1150 / 1155 / 1156 / 1366 / 2011, AMD® AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+

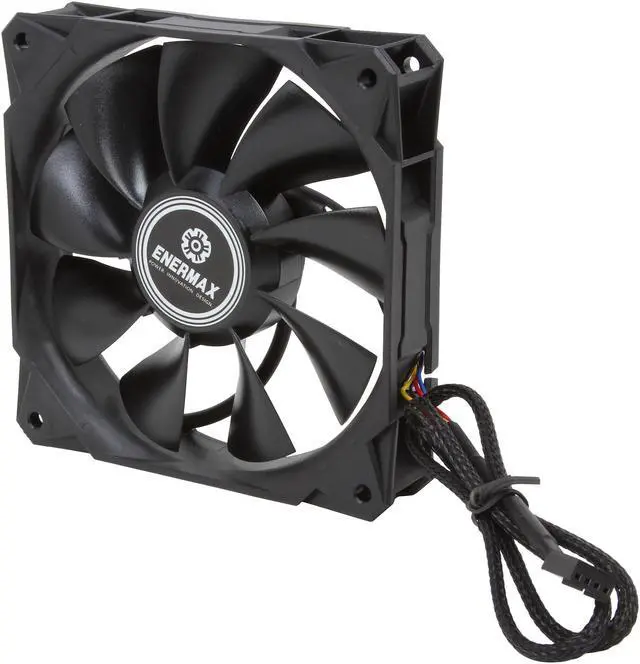

Fan	Dimensions	120 x 120 x 25mm
	Bearing	Twister Bearing
	MTBF	≥160,000 hours
	Speed	600 - 1300 / 2000 / 2500RPM
	Rated Voltage	12V
	Rated Current	0.13A / 0.27A / 0.45A
	Air Flow	28.6 ~ 60.3 / 88.9 / 111.0 CFM 48.5 ~ 102.4 / 150.9 / 188.7m³ per hour
	Static Pressure	0.8 ~ 1.7 / 4.7 / 7.4mm - H2O
	Noise Level	15 ~ 21.5 / 27 / 30dBA
	LED	N/A
	Connector	4-pin PWM
Warranty		2-years

Dimension Details
