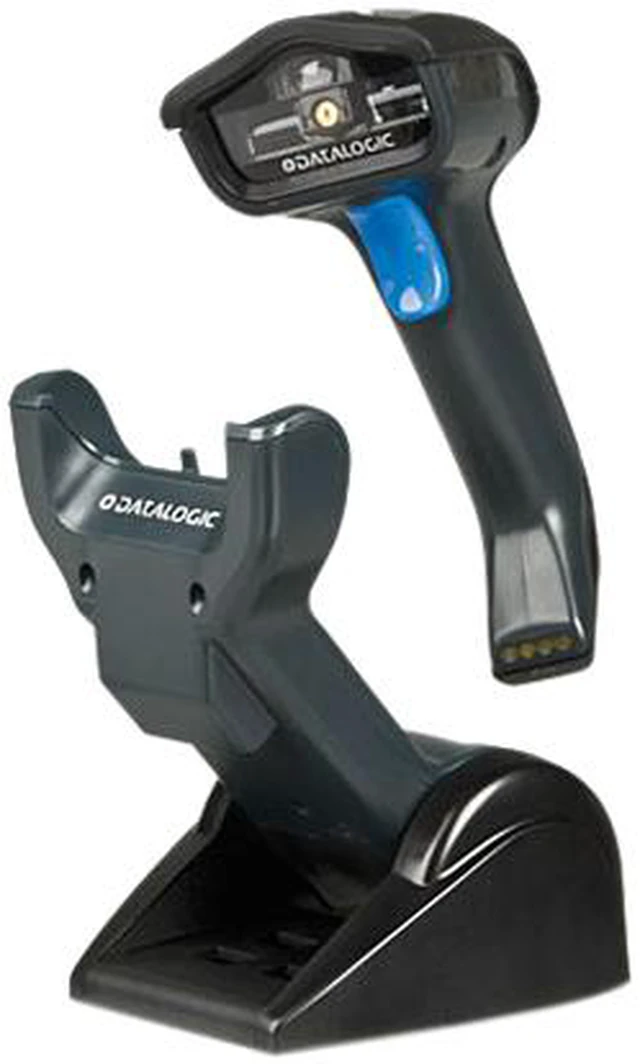

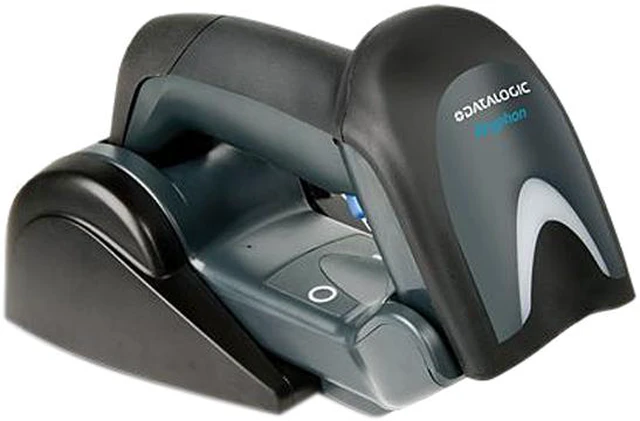

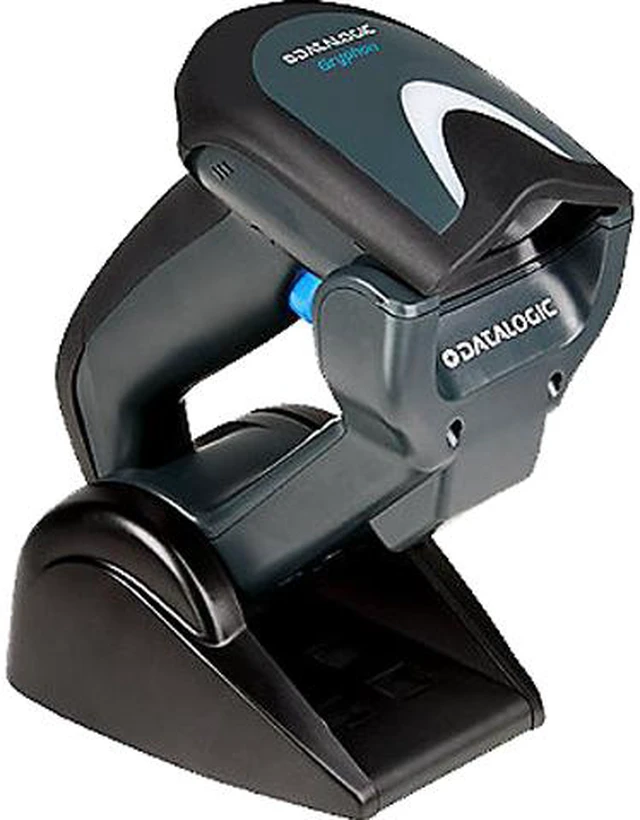

Datalogic Gryphon GM4132 General Duty Handheld Cordless Linear Imager w/ Datalogic's STAR Cordless System, 910MHz, USB, RS-232, KBW, Wand Emulation, Black, RS232 Kit - GM4132-BK-910K2

Fastest speed-to-read: 325 reads/second
Radio frequency: 910 MHz
Radio Range (open air) up to 15.0 m / 49.2 ft for 910 MHz
Point-to-point and multi-point transmission
Datalogic’s patented 2-position cradle with Scan-While-Charging capability
Batch Mode capability (>1200 codes stored in memory)
Drop resistance to 1.8 m / 5.9 ft
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Long lasting user-replaceable Lithium-Ion battery
Includes base station BC4032-BK-910 (910 Mhz, BC4032, Multi-Interface, Black), Power Supply, Line Cord, and cable 90G000008 (RS-232, 9P, Female, Straight, CAB-327, Requires External Power, 6 ft.)

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Datalogic GM4132

Scan Performance
Light Source	Illumination: LED Array 630 - 670 nm
Resolution	0.076 mm / 3 mils
Pitch	±65 degree
Roll	±35 degree
Yaw	±65 degree
Decoding Capability	1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes Postal Codes: China Post Stacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Electrical
Battery	Battery Type: Lithium-Ion, 2100 mAh Charge Time: External Power: 4 Hours at 12 VDC Reads per Charge: 50,000
Input Voltage	4.75 to 14 VDC +/- 5%
Current	Charging (Typical): < 8 watts Operating (Typical): < 2.5 watts @ 5 VDC Standby / Idle (Typical): < 2.5 mA @ 5 VDC

Features
Drop	Withstands repeated drops from 1.80 m / 5.90 ft. onto a concrete surface

Additional Information
First Listed on Newegg	May 14, 2019
