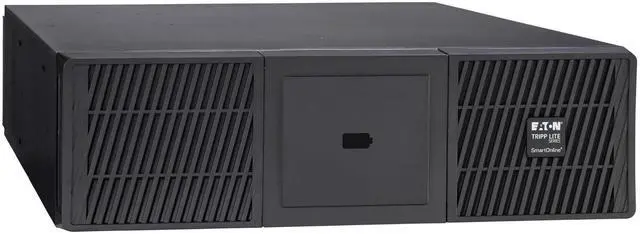

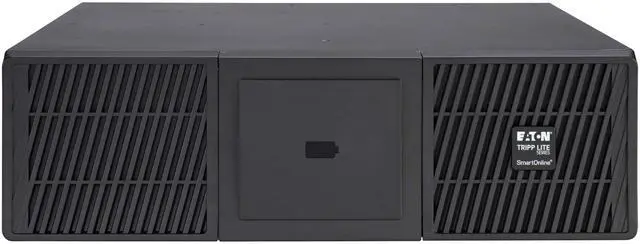

Tripp Lite BP180RT series 180V Extended Battery Module (EBM) for SmartOnline UPS Systems, 3U Rack/Tower
- Input Phase Single-Phase
- UPS Input Cord Length (ft.) 1
- Battery Type Valve Regulated Lead Acid (VRLA)
- DC System Voltage (VDC) 180
- Replacement Battery Cartridge 744-A1974
- Battery Replacement Description Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.

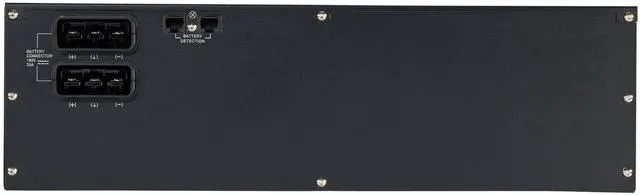

- UPS Connection UPS specific DC connector
- Primary Form Factor Rackmount; Tower
- Rack Height 3U
- External Battery Pack Form Factor Rack/Tower
- Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount
- Installation Form Factors Supported with Optional Accessories 2 post rackmount ( RK2PC )
- Minimum Required Rack Depth (inches) 29
- Operating Temperature Range 32° to 104°F (0° to 40°C)
- Relative Humidity 0-95% non-condensing
+
+
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...
The Tripp Lite BP180RT is a 180V extended battery module for compatible SmartOnline UPS systems, suited to users who need additional backup capacity in a rack or tower setup. It is 3U high and uses a UPS-specific DC connector.
Recommended For

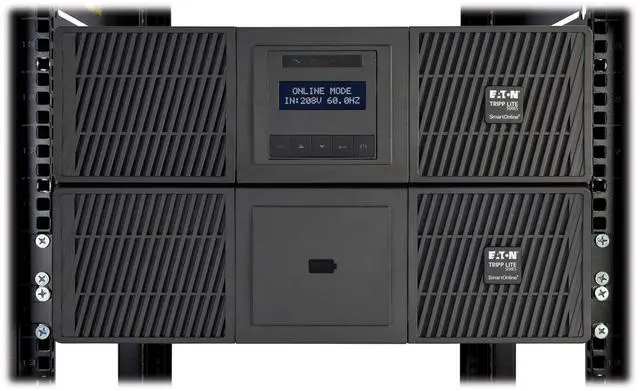

- Operators of compatible SU5000RT or SU6000RT SmartOnline UPS systems who need more battery runtime for critical equipment during outages or to allow a controlled shutdown.
- Small-business, education, retail, financial, or healthcare IT teams that already use a compatible SmartOnline UPS and need extended backup for equipment in a server room or network closet.

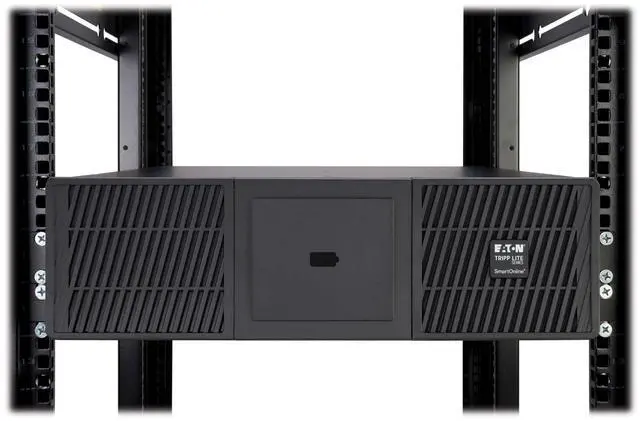

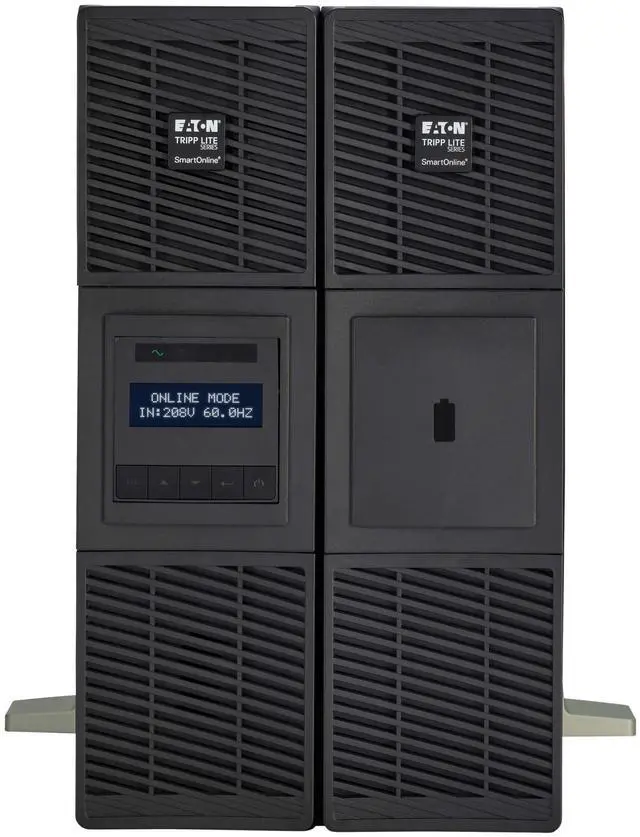

- Rack or tower installations with room for a 3U battery module, where adding compatible battery packs is more practical than replacing the existing UPS.
- IT teams planning for longer runtime who have a compatible setup and want the option to daisy-chain matching battery modules; the manufacturer specifies support for up to four packs.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Adding battery-module support to compatible SmartOnline UPS systems |
| Model Identifiers | Eaton BP180RT, manufactured by Eaton Corporation |
| Product Dimensions | 38 × 23.5 × 12.5 inches |
| Battery And Package Details | Batteries are not included and are not required; package weighs 71.08 kg and measures 63.6 × 43.99 × 13 cm |
