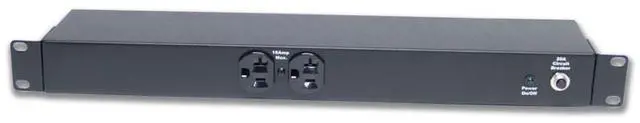

Minuteman OEPD1020HV-HW 10-Outlets PDU - Basic - Hardwired - 2 x NEMA 5-15/20R, 8 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Rack-mountable
- Provide circuit protection and easy configuration for trouble-free access
- Easily control your equipment remotely without any hassle with Basic
- Hardwired plug/connector type for better, dependable connectivity and desired power output
- Longer power cords
- Most Minuteman PDU units have 15-ft power cords, eliminating the need for 6-, 8-, or 10-ft alternatives
- More standard outlets
- Minuteman PDU units have 6, 8, 10, 14, 18, 20, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access
- Configuration versatility
- Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures
- Locking input plugs (L)
- Select models (L) feature locking input plugs for added security
- Surge protection (OES)
- OES models provide surge protection for connected devices
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the MINUTEMAN OEPD1020HV-HW
| Brand | MINUTEMAN |
|---|---|
| Series | OE Series |
| Model | OEPD1020HV-HW |
| Rack Size | 1U |
|---|---|
| Style | Horizontal Installation, 0U Vertical Installation |
| Maximum Input Current | 20A |
|---|---|
| Input Connector(s) | Hardwire |
| Cord Length | 15 ft |
| Output Connector(s) | (2) 5-15/20R, (8) 5-15/20R |
|---|
| Features | Longer power cords Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations More standard outlets Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access Configuration versatility Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures Locking (L) and Hardwire (HW) input plugs Select models feature locking plugs or hardwire inputs for added security Surge protection (OES) OES models provide surge protection for connected devices High standards PDUs are listed with higher UL 62368-1 standard. All PDUs are compatible with any data center or network installation Cost-effective More outlets, longer cords, and more features are what make the OEPD Series the best value today. The features are all standard with the series Higher reliability Designed to provide maximum uptime, Minuteman PDUs’ switchless design and on/off LEDs provide greater MTBF (Mean Time Between Failure) |
|---|
| First Listed on Newegg | June 11, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman OEPD1020HV-HW is a 10-outlet, hardwired 120V rack PDU for data centers, server rooms, and network racks that need to distribute power to multiple devices from a 20A input. It supports horizontal 1U or vertical 0U installation.
Recommended For
- Rack operators distributing power to several 120 V servers or network devices from a single rack-mounted PDU; its 10 outlets and horizontal or vertical mounting suit rack and cabinet layouts.
- IT staff outfitting network closets, telecommunications racks, or security-system cabinets who need basic power distribution rather than individual outlet control.
- Installers working with a planned hardwired power connection who want a fixed rack distribution point for compatible 120 V equipment.
- Rack builders who need to position a PDU horizontally or vertically and want a 15-foot input lead to accommodate a longer installation route.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-mounted equipment requiring 10 AC outlets and a hardwired power input |
| Power Input And Output | 120 V AC input and output, with a 20 A maximum input current |
| Outlets | 10 NEMA 5-15/20R outlets: 2 plus 8 |
| Installation And Form Factor | Rack-mountable 1U horizontal or 0U vertical installation |
| Input Connection And Cord | Hardwired input with a 15 ft cord |
| Appearance And Weight | Black; 5.46 lb |
| Model Identifiers | Minuteman OE Series, model OEPD1020HV-HW; external model number B0046T5DMG |
