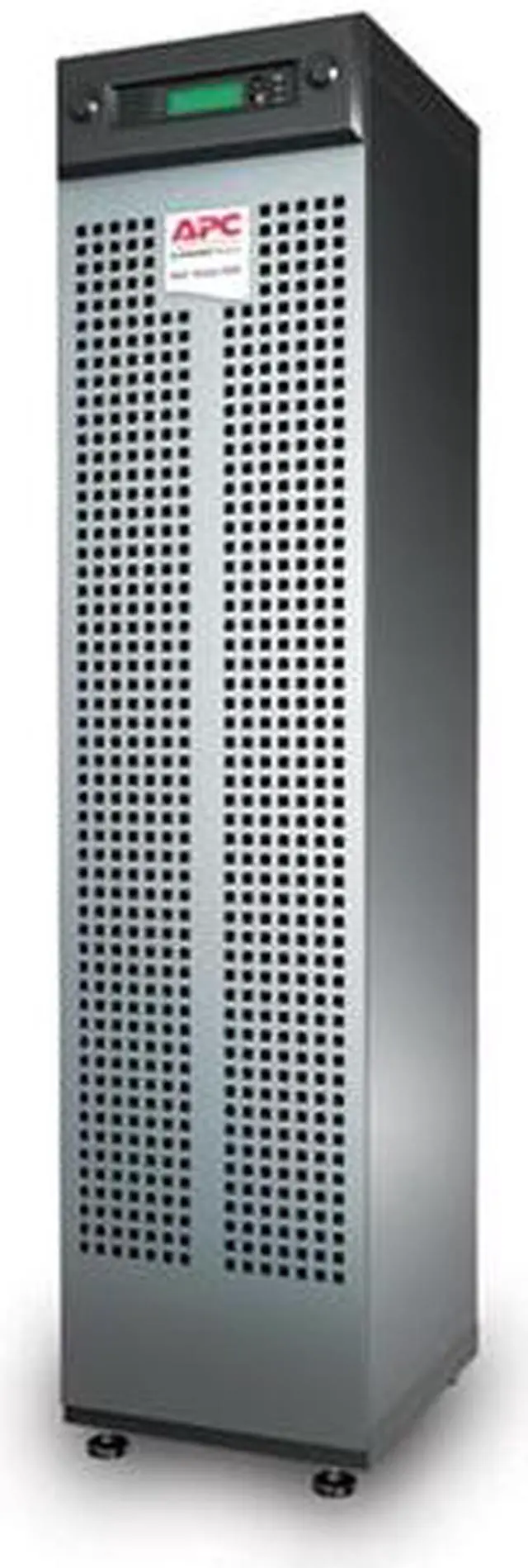

APC MGE Galaxy 3500 15 kVA Tower UPS

Be the first to review this product...

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

APC MGE Galaxy 3500 15 kVA Tower UPS offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, this UPS includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.

Model
Brand	APC

Input
Input Voltage Range	160 V AC to 240 V AC Mains Operation 208 V AC 3-phase Nominal

Output
Output Voltage	120 V AC Nominal 208 V AC 3-phase Nominal 208 V AC Nominal
Outlets	1 x Hard Wire 4-wire 3PH + G 1 x Hard Wire 5-wire 3PH + N + G 1 x Screw Terminal

Battery
Battery Run Time	0.17 Hour
Battery Recharge Time	<8 Hours

Details
Interface Port	RS-232 Serial

Features
Features	Plug/Connector Type: Hard Wire 5-wireReceptacles: 1 x Hard Wire 4-wire,1 x Hard Wire 5-wire,1 x Screw TerminalLoad Capacity (VA): 15 kVALoad Capacity (Watt): 12 kWInput Voltage: 220 V ACOutput Voltage: 120 V AC,208 V ACSerial Port: YesBattery Chemistry: Valve-regulated Lead Acid (VRLA)Backup/Run Time (Full Load): 10.30 MinuteBackup/Run Time (Half Load): 29.60 MinuteMaximum Battery Recharge Time: 5 HourForm Factor: TowerHeight: 58.7" (1491 mm)Width: 14" (355.6 mm)Depth: 33" (838.2 mm)Weight (Approximate): 395.99 kgPackage Contents: MGE Galaxy 3500 15 kVA Tower UPS2 x Battery Modules ship installedBolt Down BracketsCD with SoftwareInstallation GuidePower Modules ship installedSmart UPS Signalling RS-232 CableStart-Up ServiceUser ManualWeb/SNMP Management CardLimited Warranty: 1 Year

Dimensions & Weight
Weight	943

Package Contents
Package Contents	20693T

Additional Information
First Listed on Newegg	June 11, 2012
